Tape Adaptors

TECO Tape Adaptors & Accessories

A selection of adaptors for Tape applications.

Connectors for Tape, for common usage in agriculture.

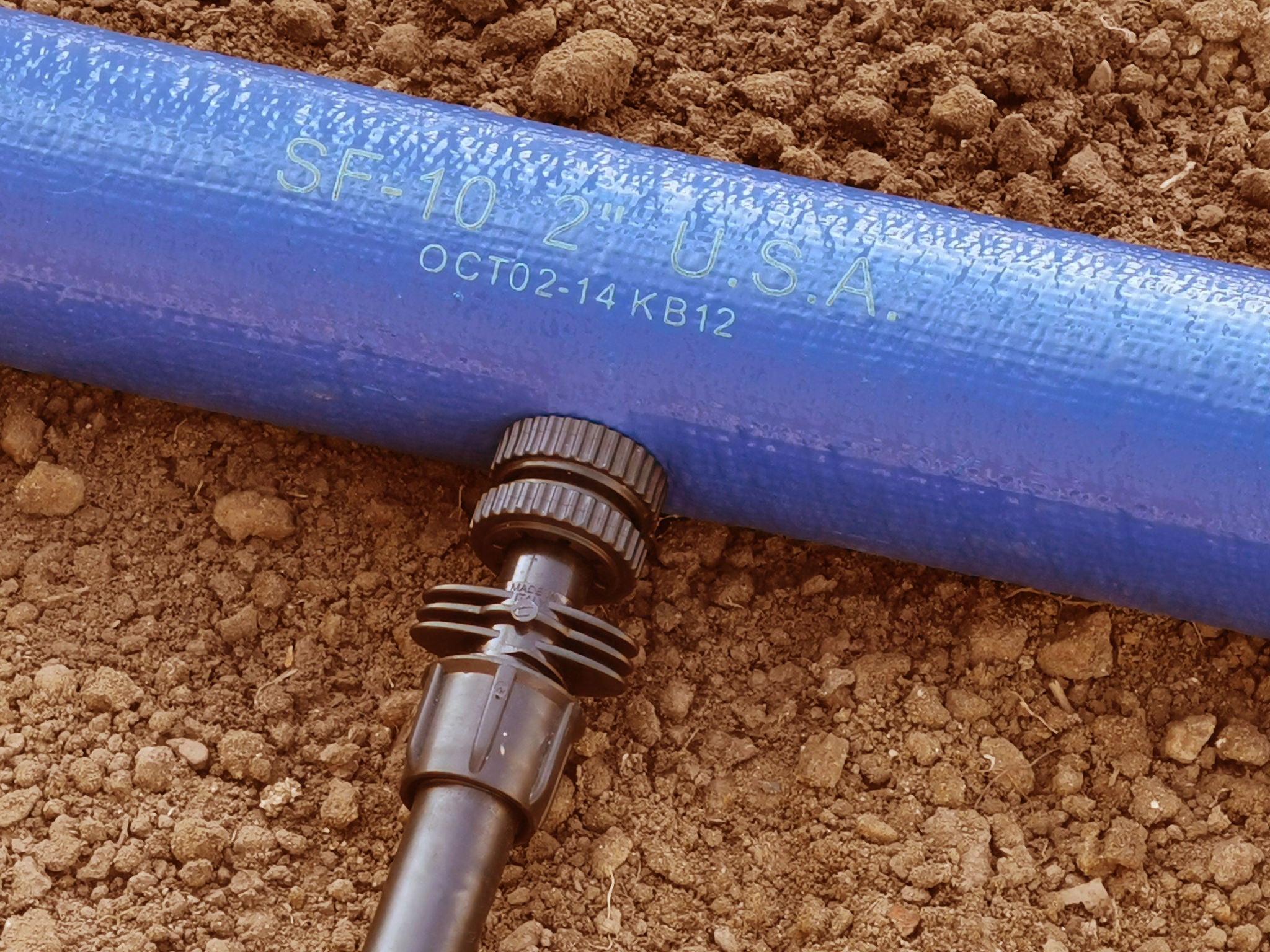

Flex Connect™ Tape Adaptors with Lay-Flat Eye Connections that may be inserted directly into mainline Lay-Flat Hose to create irrigation laterals.

The Lock Nut feature on the adaptors secures the Eye Connection to the Lay-Flat and creates a leak free connection.

Key Benefits

  • Tape adaptors for usage with Ø16mm & Ø22mm Tape

Applications

For all Ø16mm & Ø22mm Tape used in Agriculture applications

Materials & Sustainability

  • Body: Polypropylene
  • Lock Nuts: Polypropylene
  • Gaskets: EPDM
  • Layflat Connectors: Acetal
  • Lock Nut Lay Flats: Acetal

Models

  • 13mm D-Barb x 16mm Tape Connector
  • 13mm D-Barb x 22mm Tape Connector
  • 17mm D-Barb x 22mm Tape Connector
  • Take-Off for 15mm Hole Gasket x 16mm Tape Connector (Includes Gasket)
  • Take-Off for 16mm Hole Gasket x 16mm Tape Connector (Includes Gasket)
  • Take-Off with Gasket x 16mm Tape Connector, for PE pipe
  • Take-Off with Gasket x 22mm Tape Connector, for PE pipe
  • 16mm Tape Connector
  • 22mm Tape Connector
  • Flex Connect with Lay-Flat Adaptor x 16mm Tape Connector
  • Flex Connect with Lay-Flat Adaptor x 22mm Tape Connector
  • Flex Connect without Lay-Flat Adaptor x 16mm Tape Connector
  • Flex Connect without Lay-Flat Adaptor x 22mm Tape Connector
  • End Plug x 16mm Tape Connector
  • End Plug x 22mm Tape Connector
  • 1/2 in. MPT x 16mm Tape Connector
  • 1/2 in. MPT x 22mm Tape Connector
  • 3/4 in. MPT x 16mm Tape Connector
  • 3/4 in. MPT x 22mm Tape Connector
  • 250 Series Barb x 16mm Tape Connector

Literature & Resources

Download

Datasheet - TECO Tape Adaptors & Accessories

application/pdf | 538 KB
DOWNLOAD
