NDS Telescopic Compression Fittings
Speed up the process of repairing a broken pipe!
Unique, fast and easy solution to repair any irrigation pipe.
Clean and practical, avoid extra pipe cutting and additional fittings that will increase the potential points of future problems in your irrigation system.
Key Benefits
- Ideal connection for repairing and taping into a PE pipe
- No additional components required for fixing the pipe
- UV stabilized to perform even in harsh sunny conditions
- Dual O-rings are used to ensure leakage free connections
- Extensible telescopic function for easy and fast repair
- Innovative solution
Applications
For repairing broken pipe sections in any irrigation system, while reducing the time spend and the physical labor involved.

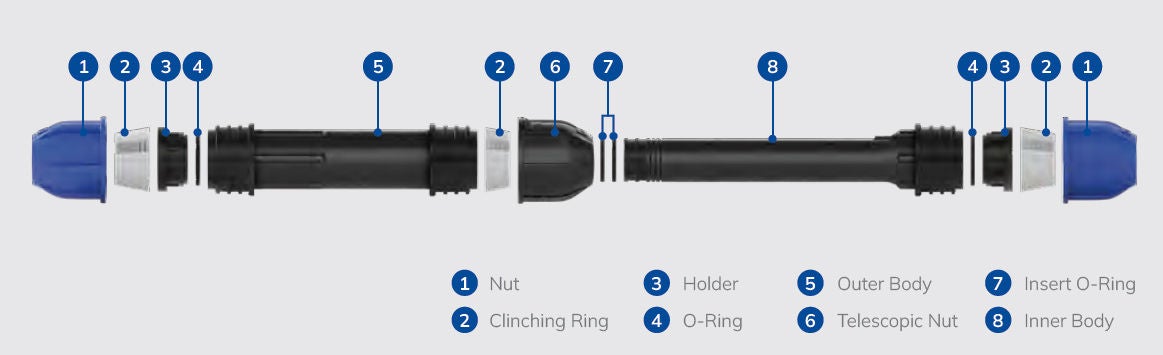

Materials
- Nut: polyethylene
- Clinching Ring: POM (Acetal)
- Holder: Polyethylene
- O-Ring: NBR
- Outer Body: polyethylene
- Telescopic Nut: polyethylene
- Insert O-Ring: NBR
- Inner Body: polyethylene
Maximum service pressure:
PN 12.5 bar
Models
Diameters from 20mm to 63mm.

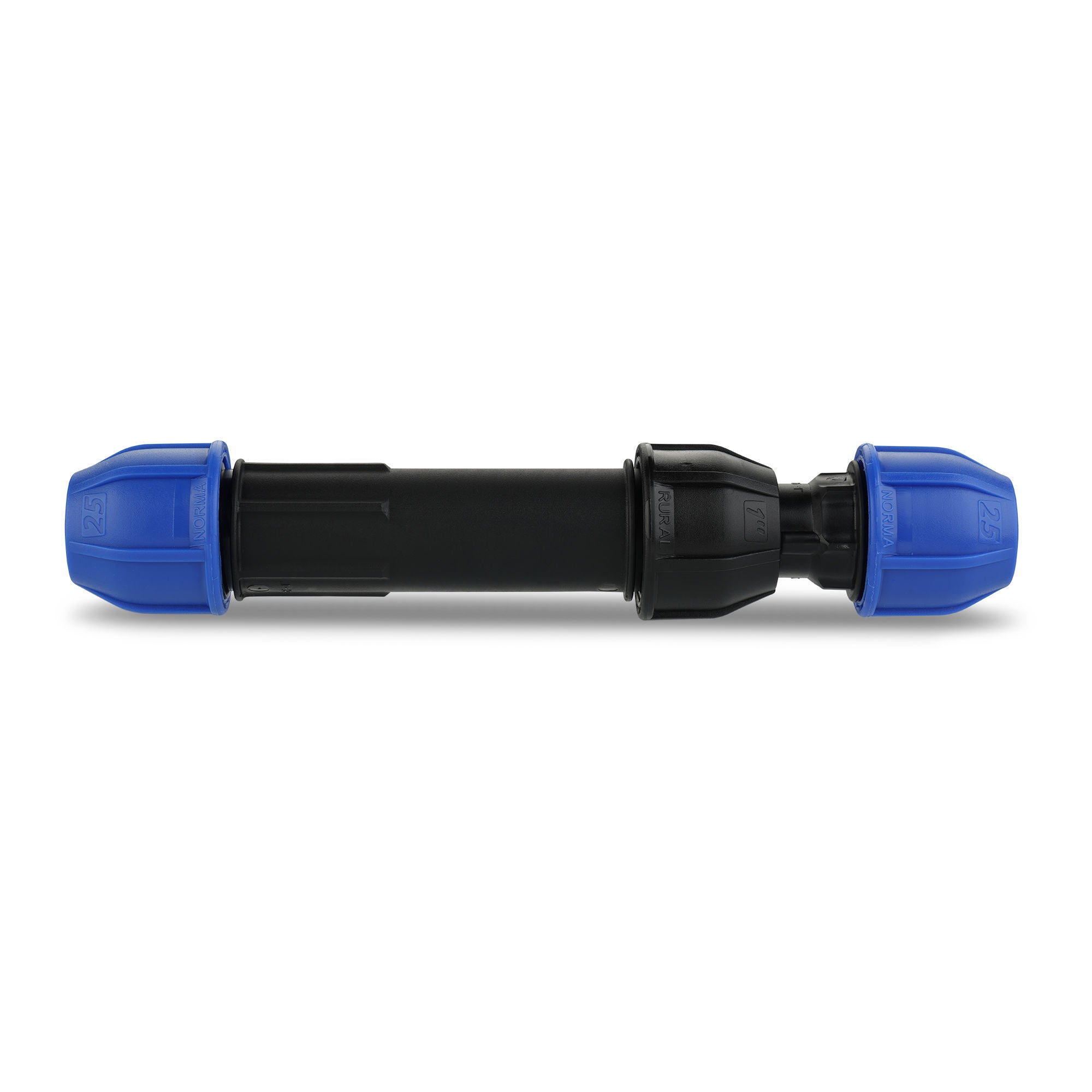

NDS Telescopic Straight Coupler
NDS Telescopic Male Threaded Adapter

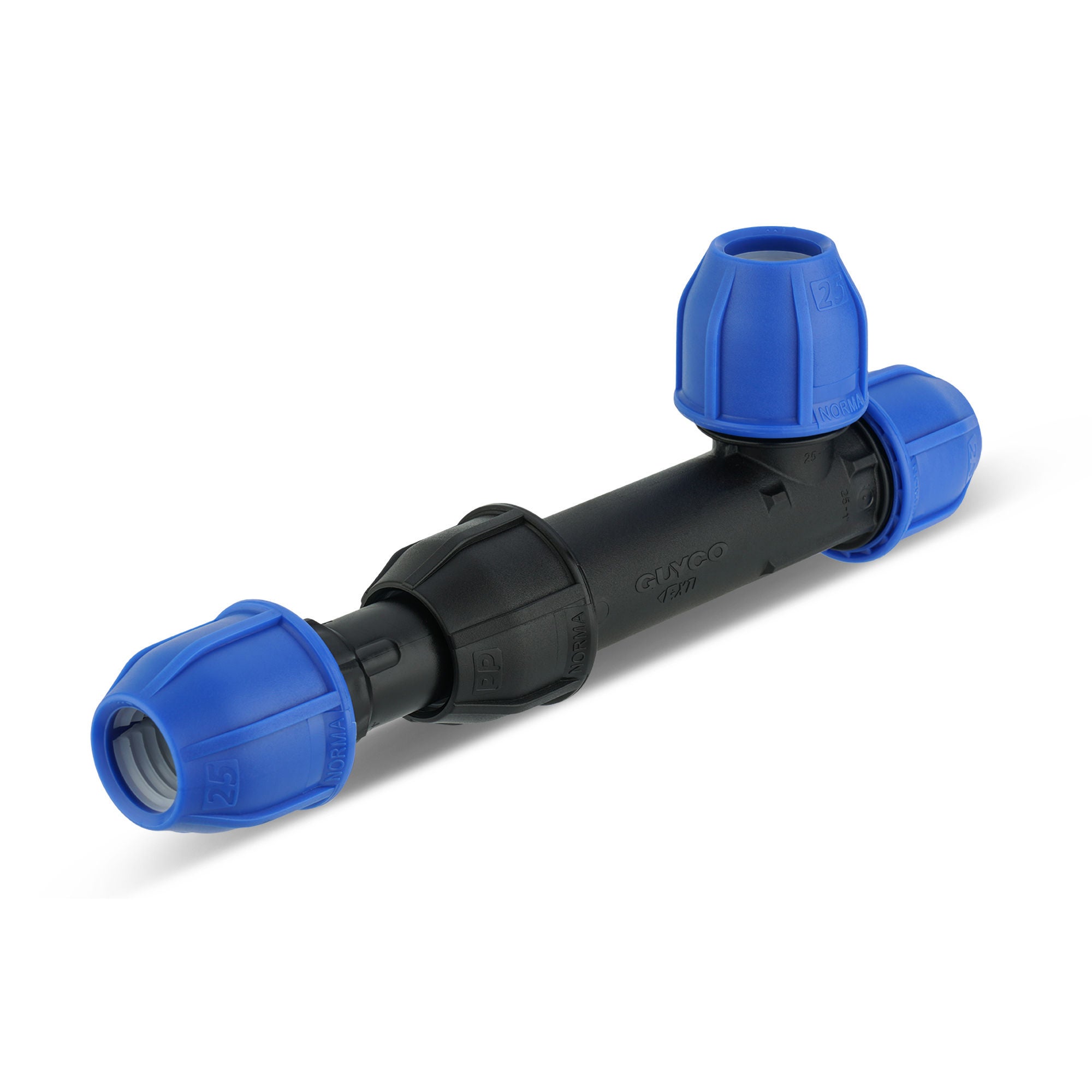

NDS Telescopic Equal Tee

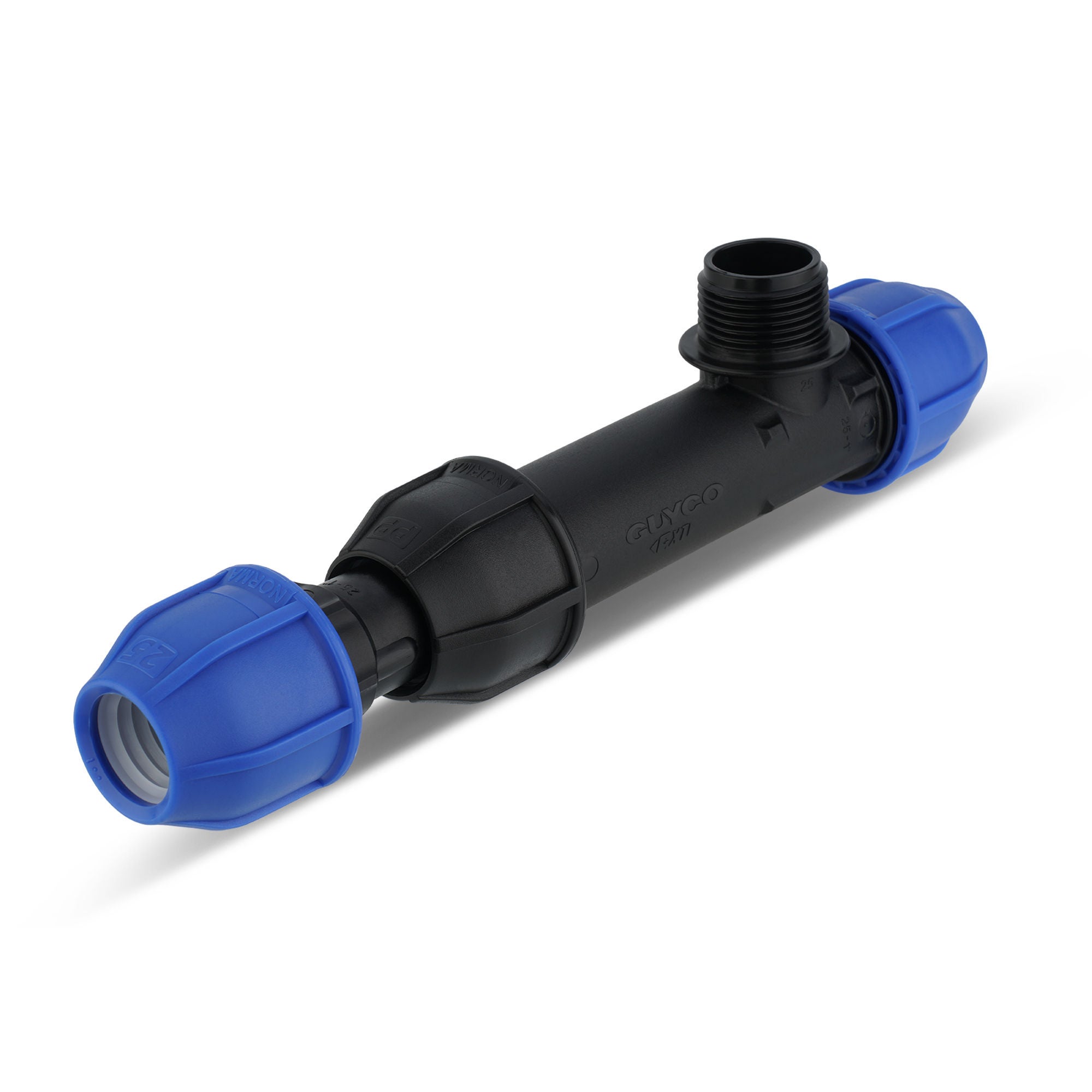

NDS Telescopic Male Threaded Tee

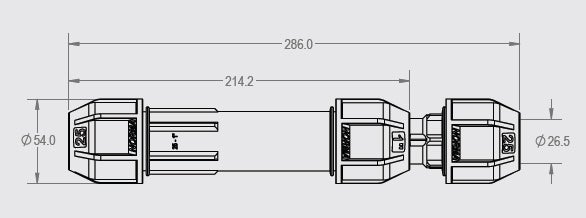

Technical Overview
Installation Tips
01

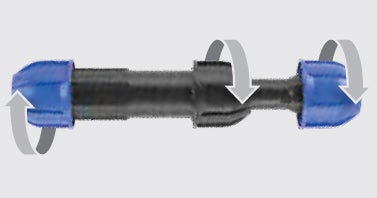

Cut the pipe as per the cut template.
Unscrew all nuts to the last thread.
Pull the O-rings into the relaxed position.
02

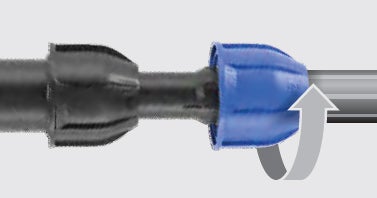

Slide the fitting over the pipe to the maximum insertion depth and tighten the nut.
03

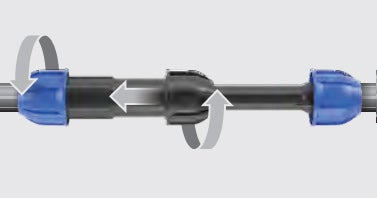

Slide the outer body of the fitting to the maximum insertion depth until it extends over the pipe and tighten the blue nut. Tighten the black nut.
