NDS CV Dripline

The best dripline solution for slopes and other unbalanced installations

NDS CV dripline combines the best of NDS PC dripline with a Check Valve (CV), saving water by reducing water wastage.

Key Benefits

  • Anti-siphon mechanism, prevents suction of debris into the emitter
  • Allows for longuer run lengths: working pressure starting at 0,5 bar
  • Ideal for slopes, each emitter has a check valve that closes at 0,14 bar, holding back 1,4m of elevation
  • Dripline remains full of water between irrigation periods, providing immediate and uniform irrigation at each cycle and avoiding low heads runoff

Applications

Ideal solution for all landscape drip applications that require a slope installation. Temporary, chemical free, roots intrusion protection.

High performance and quality is specially recommended for demand installations like public green areas, commercial applications and high-end residential irrigation systems.

Materials & Sustainability

  • Sustainable material, 100% recyclable polyethylene.
  • Pressure working range: 0,5 to 4,0 bar

Models

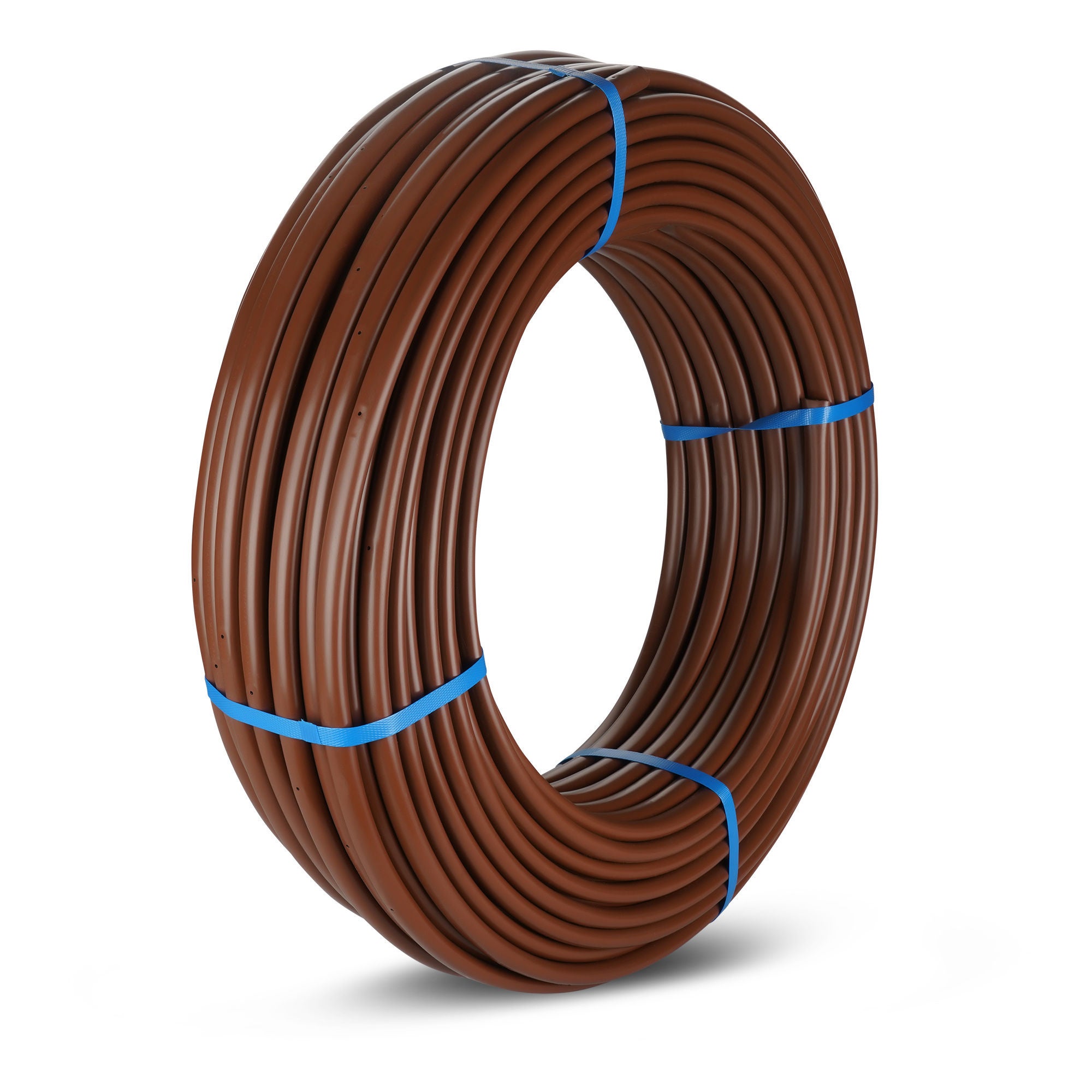

16mm diameter, with 33cm emitters spacing, 2,1 l/h flow and 1,15mm thickness, available in:

  • Brown 50m and 100m coils



17mm diameter, with 33cm emitters spacing, 2,1 l/h flow and 1,25mm thickness, available in:

  • Brown 50m and 100m coils

Literature & Resources

Download

Datasheet - NDS Dripline and Drip Distribution Tubing

application/pdf | 413 KB
DOWNLOAD
