NDS Cuatro-Flo™ Pressure Compensating Bubblers

Cuatro-Flo multi outlet drip emitters

Steady watering for up to 4 plants.

Cuatro-Flo™ pressure-compensating bubblers convert an underground sprinkler system to a micro irrigation drip system that provides steady watering for up to 4 plants, with a constant flow from each outlet even when the water pressure varies. Choose from 8, 38, or 76 l/h per outlet.

Key Benefits

  • Converts a sprinkler riser into a multi-outlet, low-flow drip irrigation emitter
  • Four barbed swivel outlets enable tubing to be positioned where desired
  • Each pressure compensating outlet maintains a steady discharge rate, even when the water pressure varies
  • Color coded for easy identification of flow rate: blue – 8 l/h; red – 38 l/h; green – 76 l/h
  • Designed to work with standard drip irrigation water pressures up to 50 PSI

Applications

  • Converts an underground sprinkler system to a micro irrigation drip system that waters up to 4 plants with a constant flow rate
  • Ideal for landscaped perimeters and garden areas; can be used above grade or below grade in an emitter access box
  • As part of a complete drip system, the bubbler delivers low volume irrigation to the plant’s root zone; the pressure compensating emitter maintains a constant flow rate should the water pressure change, and at varying positions from the water source

Materials & Sustainability

  • ABS (Acrylonitrile Butadiene Styrene) treated with UV inhibitors to prevent fading and cracking

Models

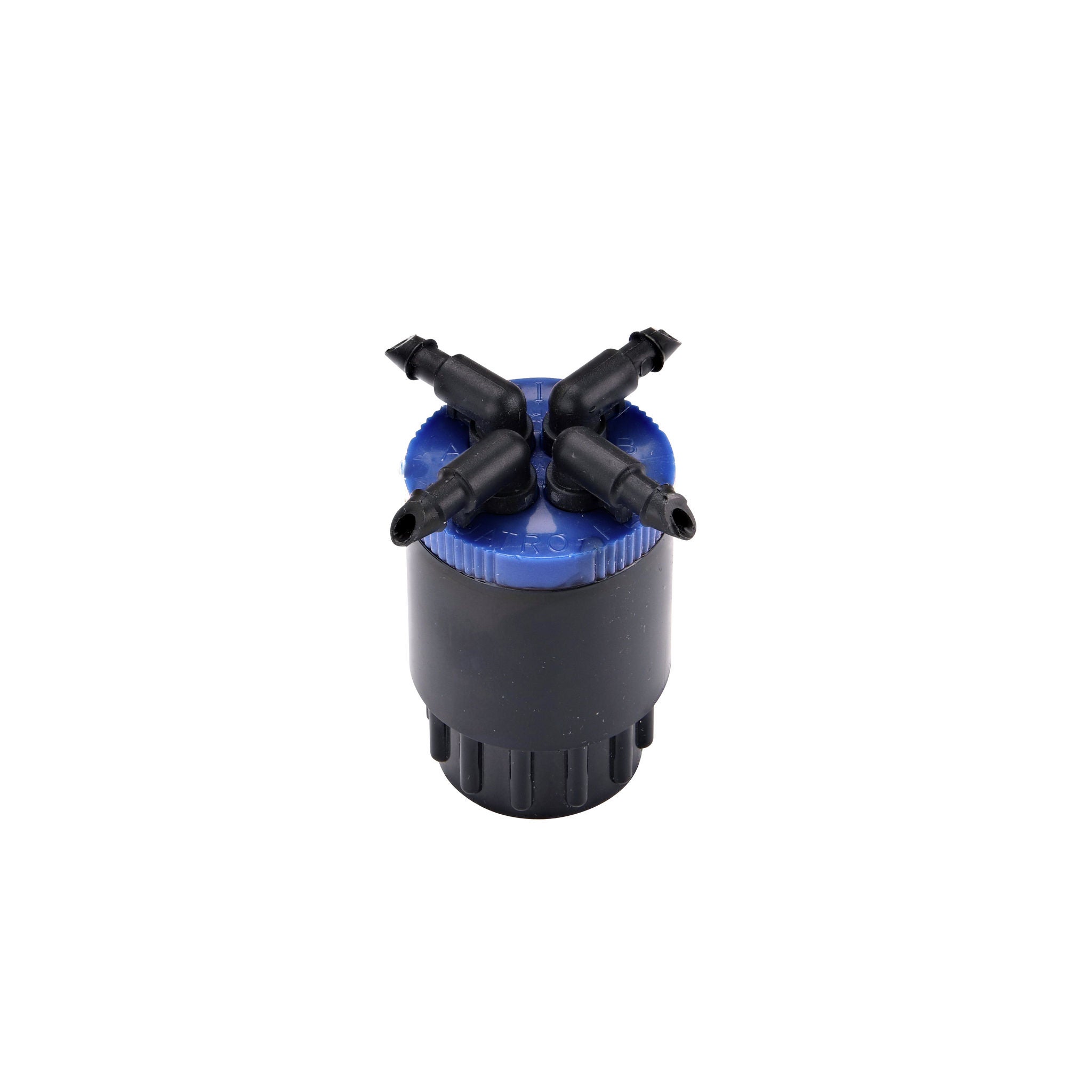

Flow Rate: 8 l/h
Blue

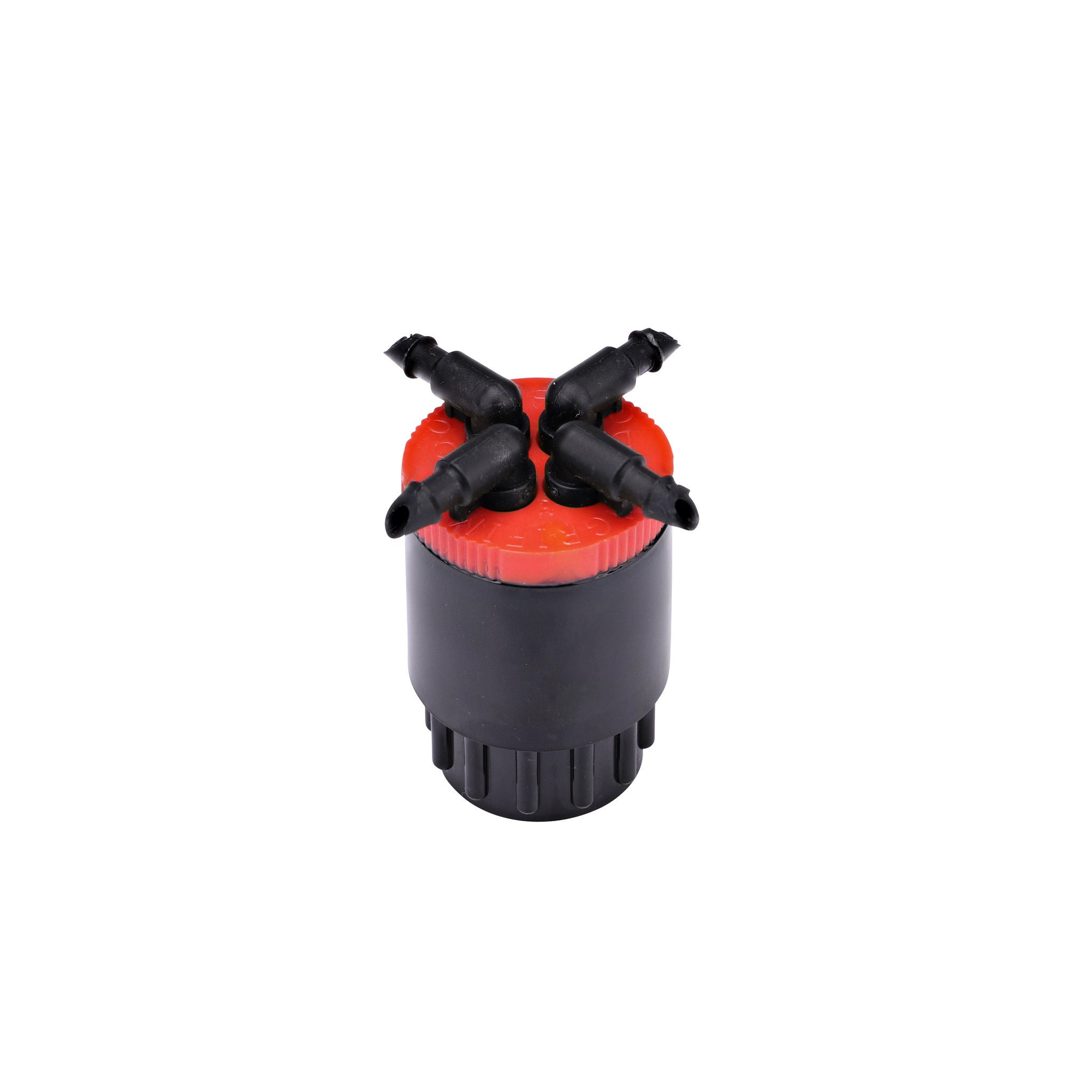

Flow Rate: 38 l/h
Red

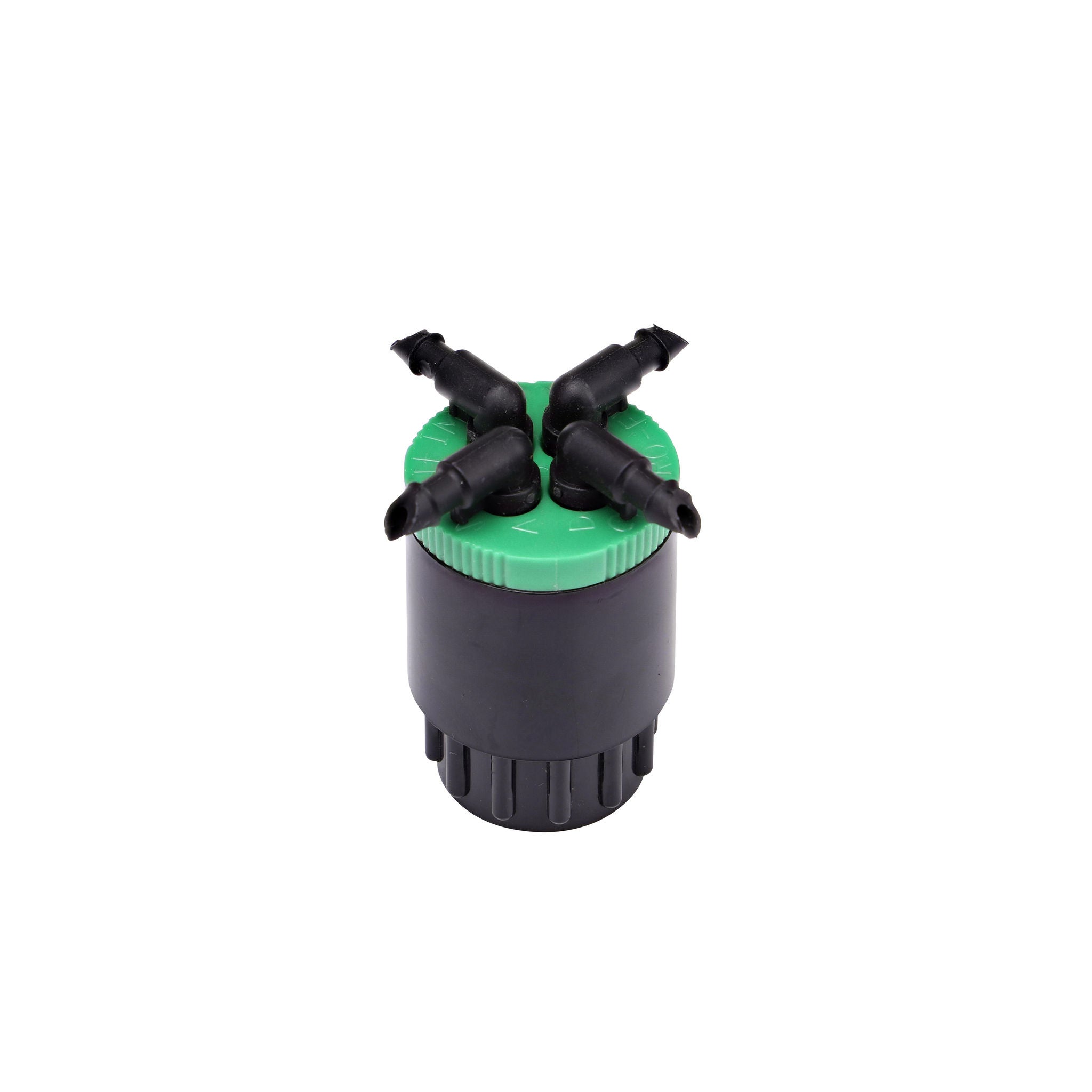

Flow Rate: 76 l/h
Green
