By NORMA Group

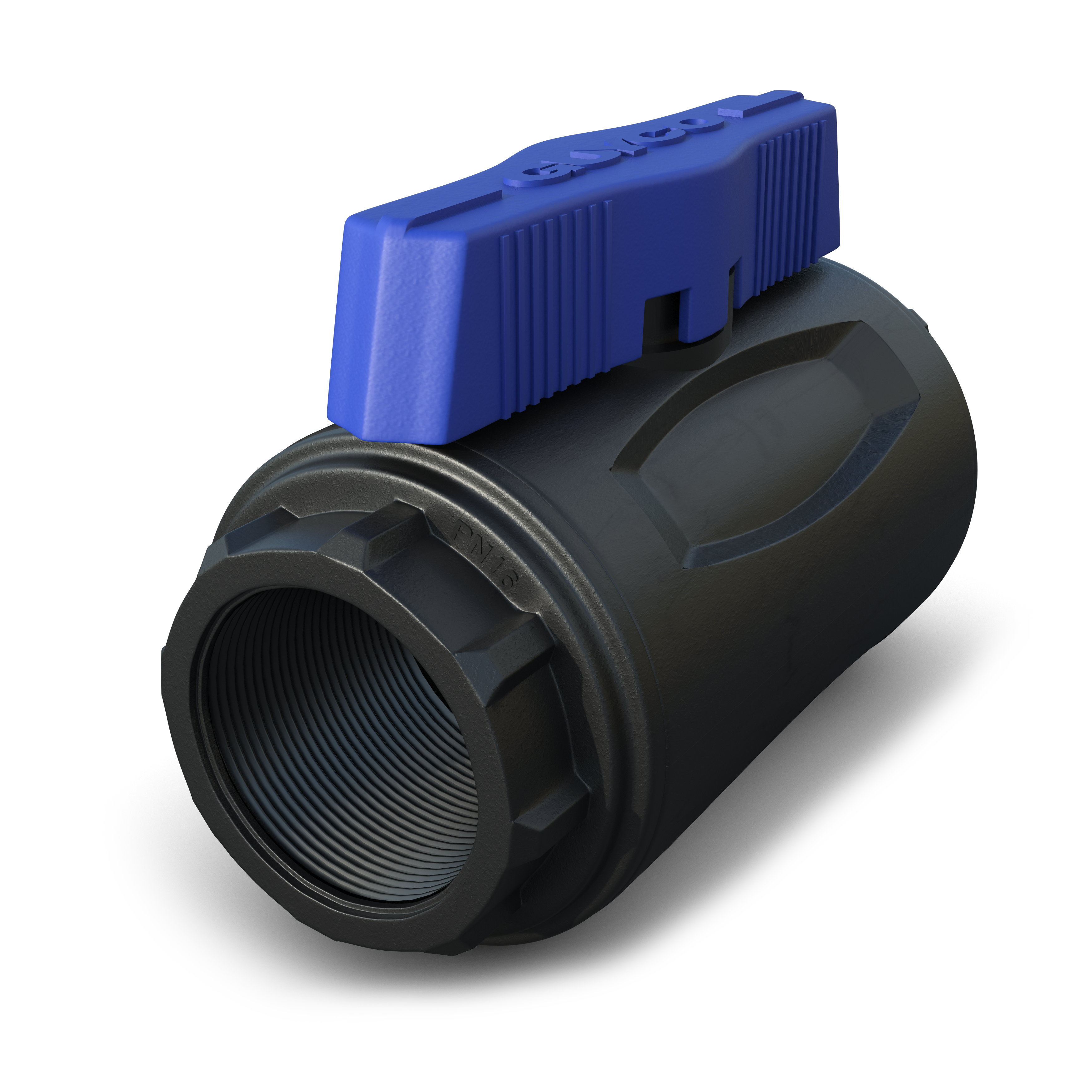

NDS Nylon Ball Valves
Exceeding performance, even in harsh conditions
NDS ball valves feature perfectly flush component diameters, for full unimpeded flows. Its tight construction and strong materials secure a corrosion free optimal performance even under harsh conditions. Interchangeable color-coded handles identify usage and can be removed to prevent unauthorized manipulation.
Key Benefits
- Innovative design allows full true passage when open
- More efficient water discharge due to lower wall thickness
- Superior mechanical resistance due to nylon material
- Higher corrosion and frost resistance
- Removable handle prevents unauthorized manipulation
Applications
Perfect for all irrigation applications, especially for higher demanding installations:
- Sports fields
- Large public parks
- Golf courses
- Large agricultural sites
Can also be used in industrial applications.

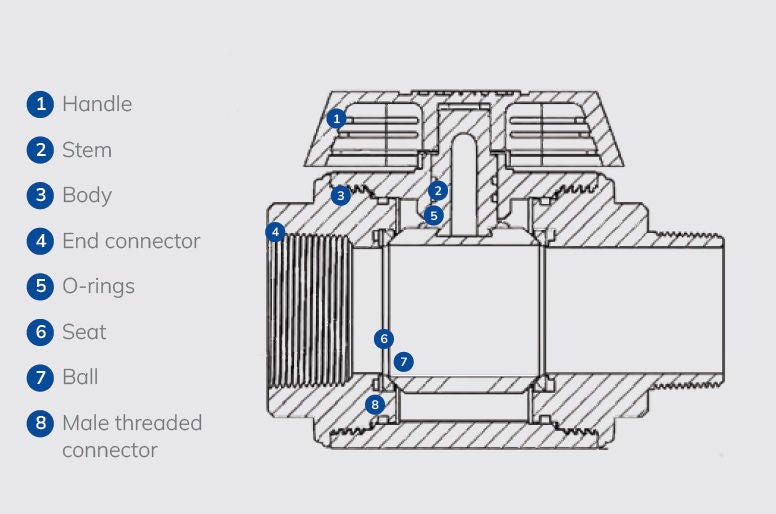

Materials
High quality glass-reinforced nylon construction
- Handle: Polypropylene
- Stem: POM (Acetal)
- Body: Nylon
- End connector: Nylon
- O-Ring: NBR
- Seal: HDPE
- Ball: CPVC
- Male threaded connector (FxM): Nylon
Working pressure: 16 bar
- Literature & Resources
- Models
- Technical Overview
- Guideline For Removing Handle
Download
Datasheet - NDS Ball Valves
application/pdf | 284 KB

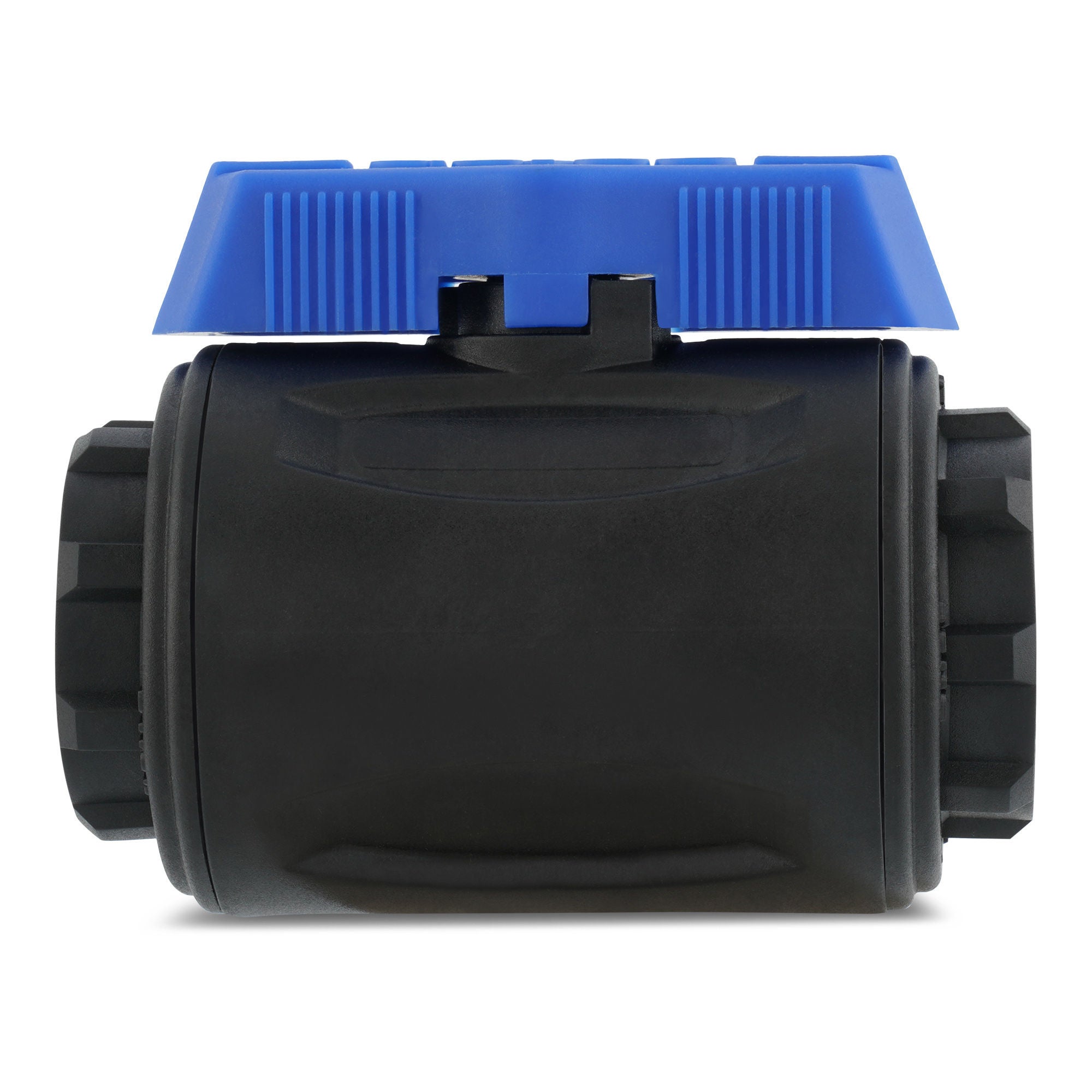

NDS Nylon Ball Valve, Female x Female

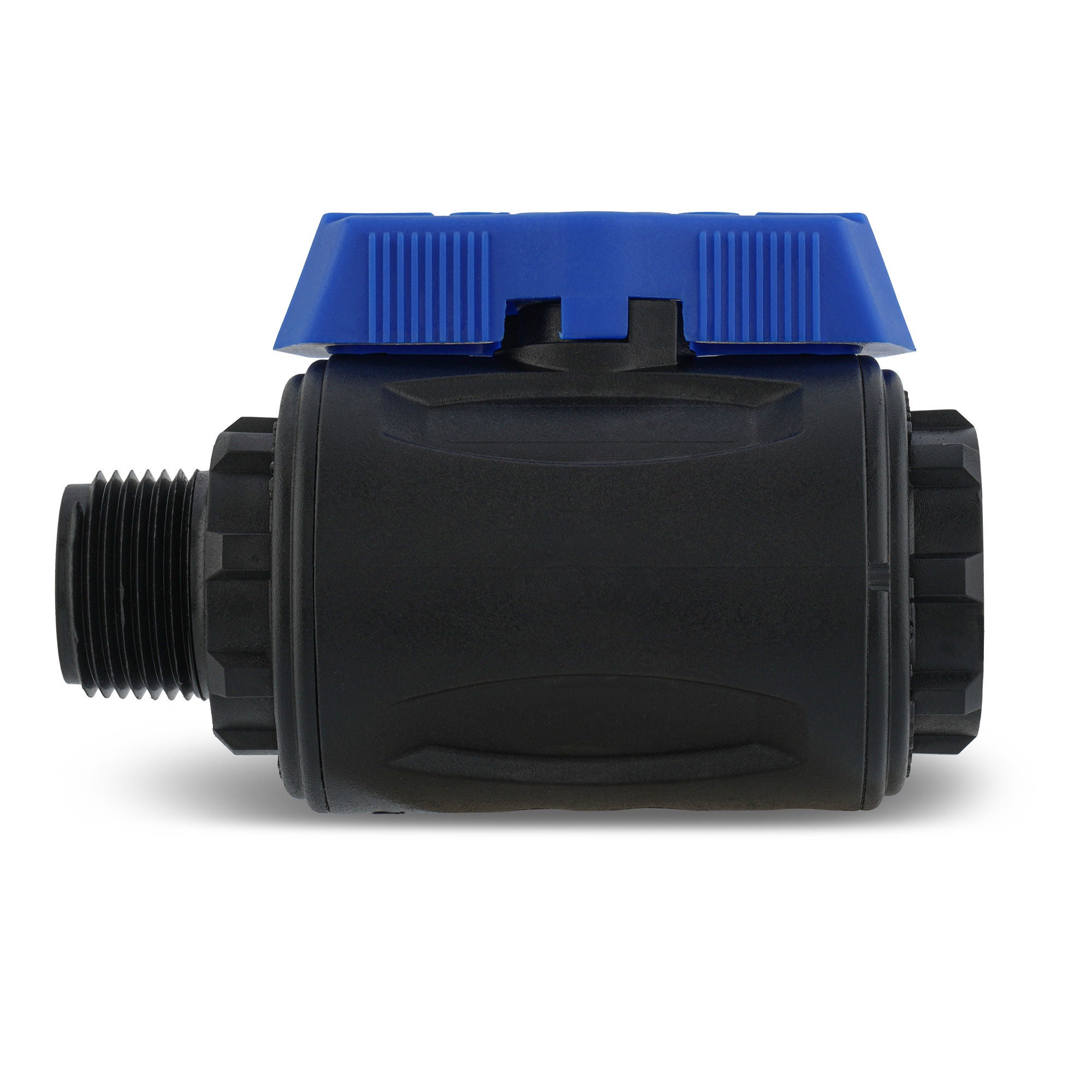

NDS Nylon Ball Valve, Male x Female

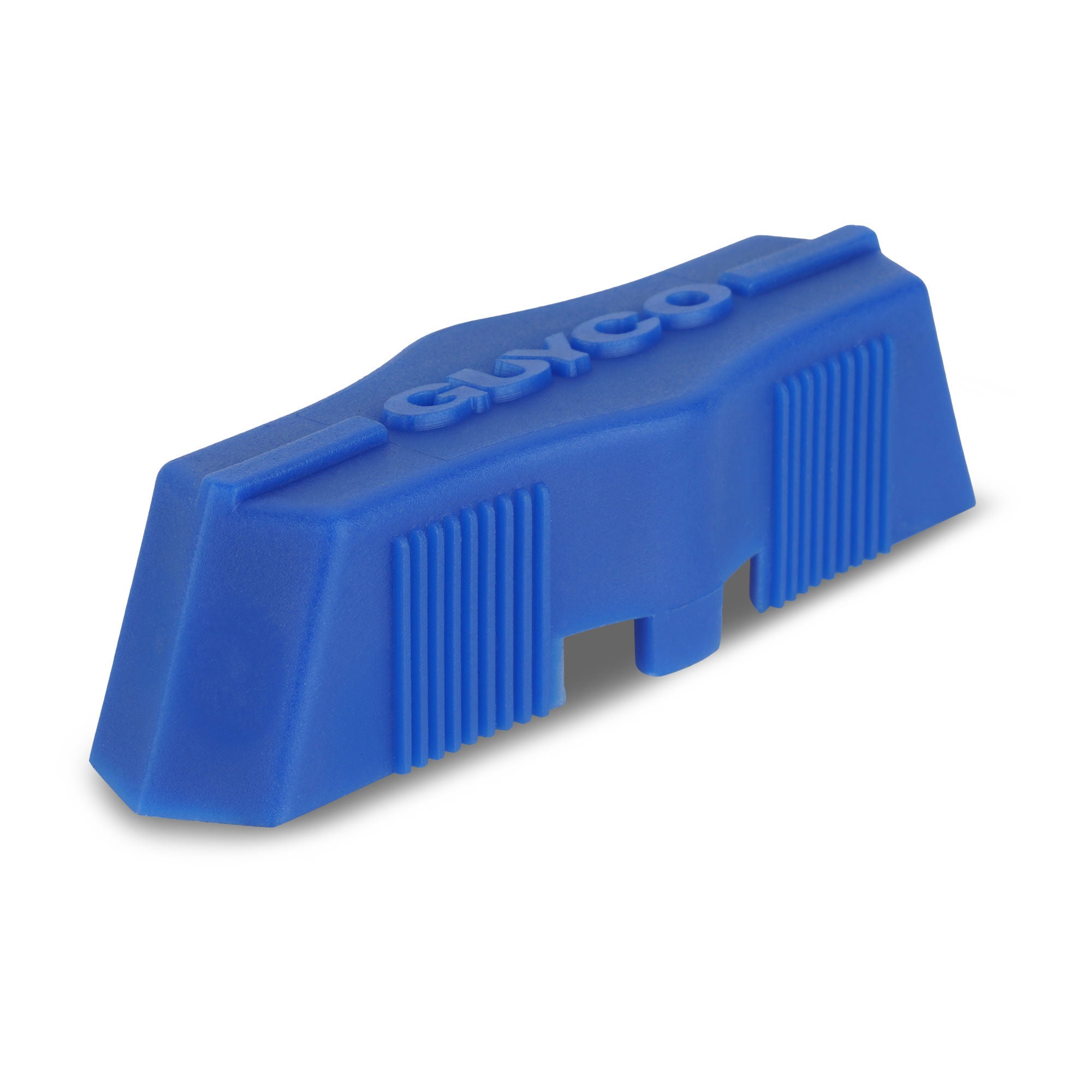

NDS Nylon Ball Valve Regular Blue Handle
01
Turn the handle slightly clockwise
02
Put fingers below handle and pull it up at the same time, with thumb pushing down on valve body
