NDS PN10 Compression Fittings

NDS PN10 tee compression fitting

Cost-competitive high-quality compression fittings for your needs

Economic PN 10 compression fittings for agricultural irrigation solutions. Made of polypropylene for high-and-low density polyethylene tubing, diameters 16 to 90 mm

Key Benefits

No special tooling required
Perfect water tightness
Easy connection
Locking nut for clinching system
High UV and temperature resistance
Safe and durable

Applications

Ideally suited for residential landscape and agricultural irrigation

Materials

Body: Polypropylene
O-Ring: NBR
Holder: Polypropylene
Clinching Ring: POM (Acetal)
Locking Nut: Polypropylene

Working pressure:
10 bar

Not for use in hot water applications.

Made in factories certified under ISO 9001.

Tested and approved according to these standards: ISO 14236 (Czech Republic). ITC (Poland): BS Standard 5114, AS / NZ 4129, AS 4020.

This product range is not certified as compliant with international sanitary regulations for transport of drinking water and liquid foods.

Literature & Resources
Models
Technical Overview
Installation Tips

Download

Datasheet - NDS PN10 Compression Fittings

application/pdf | 528 KB

Download

Installation Guide for NDS Compression Fittings

Installation Guide for NDS PN16, PN10, Telescopic Fittings, and NORMA MARLIN PN16 in English, German, French, Spanish & Turkish

application/pdf | 1 MB

NDS PN16 Compression Fitting Models
Male Threaded Adaptor Female Threaded Adaptor Male Threaded Tee Female Threaded Tee Male Threaded Elbow 90° Female Threaded Elbow 90° Straight Coupler Equal Elbow 90° Equal Tee	End Cap Reducing Coupler Reducing Tee Equal Elbow 90° with Central Female Thread Wall Plate Elbow

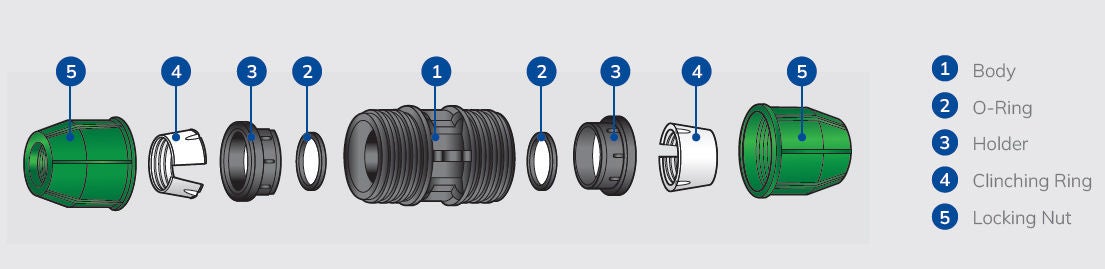

NDS PN10 exploded view

NDS PN10 Installation step 1

01

Unscrew the nut one or two turns or to the last thread.

NDS PN10 Installation step 2

02

Cut the pipe and deburr if necessary. Mark the insertion depth.

NDS PN10 Installation step 3

03

Push the pipe to the mark or the stop-end.

NDS PN10 Installation step 4

04

Screw the nut on tight. The nut can be tightened manually or using a hook tool.
