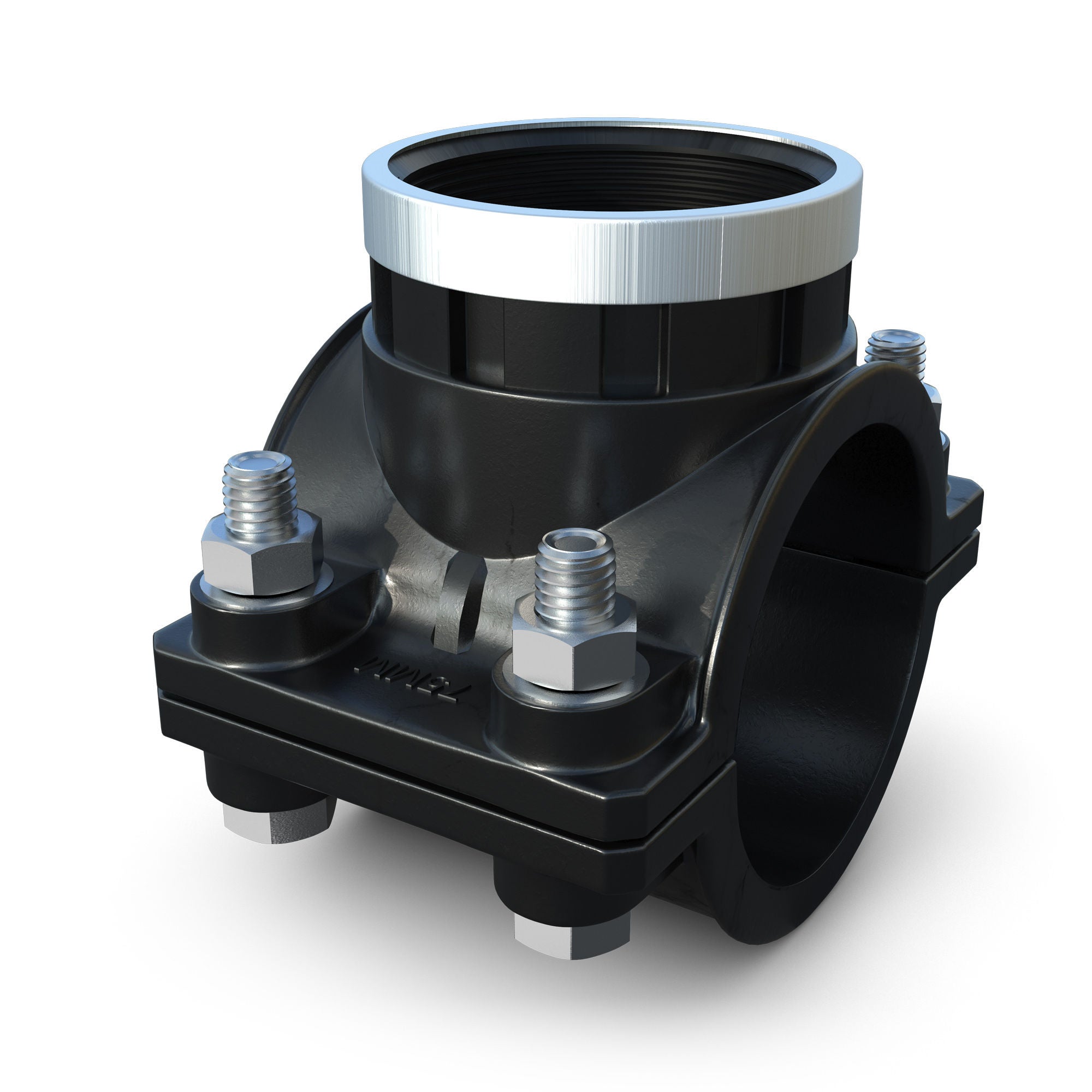

NDS Clamp Saddles with Stainless Steel Reinforced Ring

Nylon Threaded Fittings

The easy way to create distribution junctions.

Clamp saddles used to tap an irrigation water pipe and get a safe and secure pressurized water exit.

Superior resistance with the stainless steel reinforcement rings.

Key Benefits

  • Top quality with extra strength and resistance
  • Resistant to corrosion with its stainless steel and zinc plated mild steel components
  • Extended range for all irrigation applications
  • High pressure resistance for superior performance

Applications

Used in all irrigation applications where a pipe water exit is needed.

Wide range of sizes supports this.

Materials

  • Body: polypropylene
  • Reinforced ring: stainless steel
  • Bolts and nuts: zinc plated mild steel



Working pressure: PN 12,5 bar

Models

NDS Reinforced Clamp Saddle

Female Fittings

Sizes from 32mm up to 200mm

Exit thread from 1/2 in. to 2 in., depending on the size of the fitting

2 bolts up to size 50mm, 4 bolts from 63mm to 125mm and 6 bolts from 160mm up to 200mm
