NORMA MARLIN® PN16 Compression Fittings

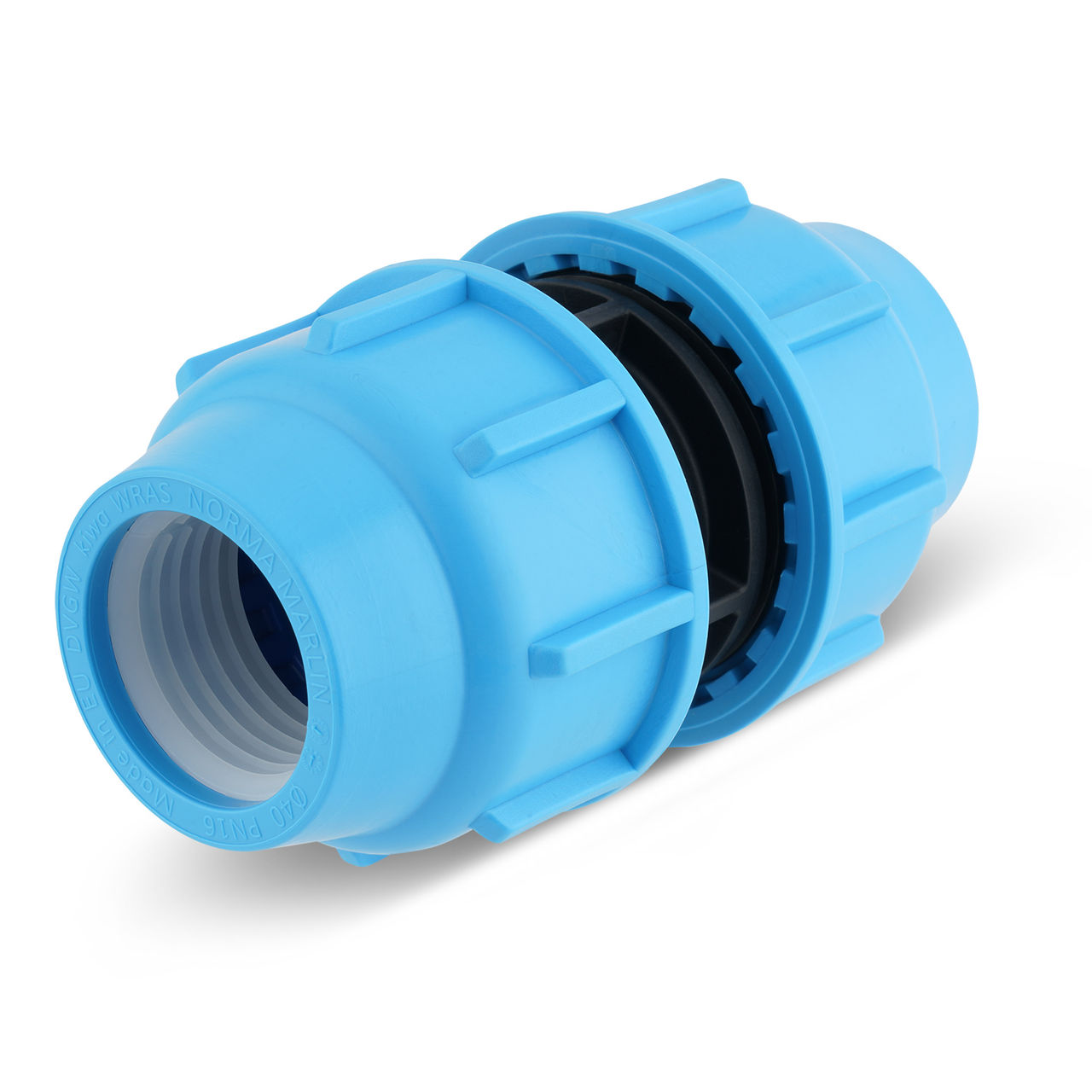

Norma Marlin PN16 straight coupler

Speed up your water pipe installations with QuickTight Technology!

Your best choice of compression fittings for drinking water applications.

QuickTight Technology gives you the confidence on the fastest and easiest installation, with superior performance and a leak-free performance.

Drinking water certified in Europe (DVGW, WRAS, KIWA, ACS)

Key Benefits

  • Certified for drinking water
  • Faster and easier installation
  • Superior leak proof connections
  • Push fit installation in all sizes
  • Lip-gasket technology for superior performance
  • Durable materials, UV resistant

Applications

Ideally suited for high-end drinking water applications on your irrigation systems.

Perfect to connect high- and low- density polyethylene tubing.

This product range is certified as compliant with international sanitary regulations for transport of drinking water according to DVGW, KIWA, ACS and WRAS.

Materials

  • Nut: polypropylene
  • Bodies: polypropylene
  • Clinching Ring: POM (Acetal)
  • Lip-Gasket: NBR



Maximum service pressure:
up to PN 16 bar, according with model and size

NORMA MARLIN® Compression Fittings are made in factories certified under ISO 9001:2018 according to UNI 9561-AS/NZS 4129-BRL-K17105 – DIN 8076 – ISO17885, threads: UNI EN 10226-1 (ISO 7/1)

Download

Datasheet - NORMA MARLIN PN16 Fittings

application/pdf | 670 KB
DOWNLOAD
Download

Installation Guide for NDS Compression Fittings

Installation Guide for NDS PN16, PN10, Telescopic Fittings, and NORMA MARLIN PN16 in English, German, French, Spanish & Turkish
application/pdf | 1 MB
DOWNLOAD
NORMA MARLIN PN16 Compression Fitting Models
  • Male Threaded Adaptor
  • Female Threaded Adaptor
  • Male Threaded Tee
  • Female Threaded Tee
  • Male Threaded Elbow 90°
  • Female Threaded Elbow 90°
  • Straight Coupler
  • Equal Elbow 90°

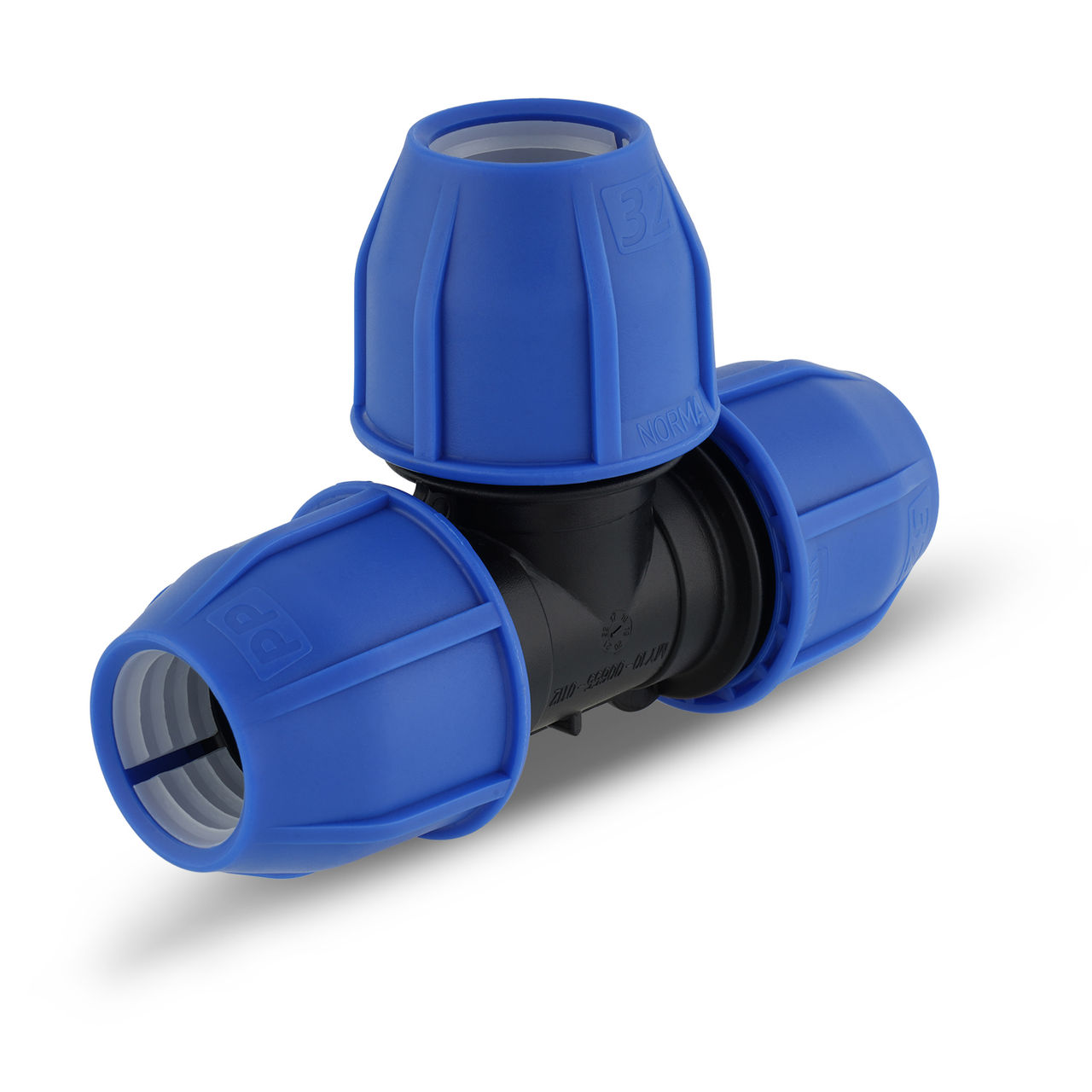

  • Equal Tee
  • End Cap
  • Reducing Coupler

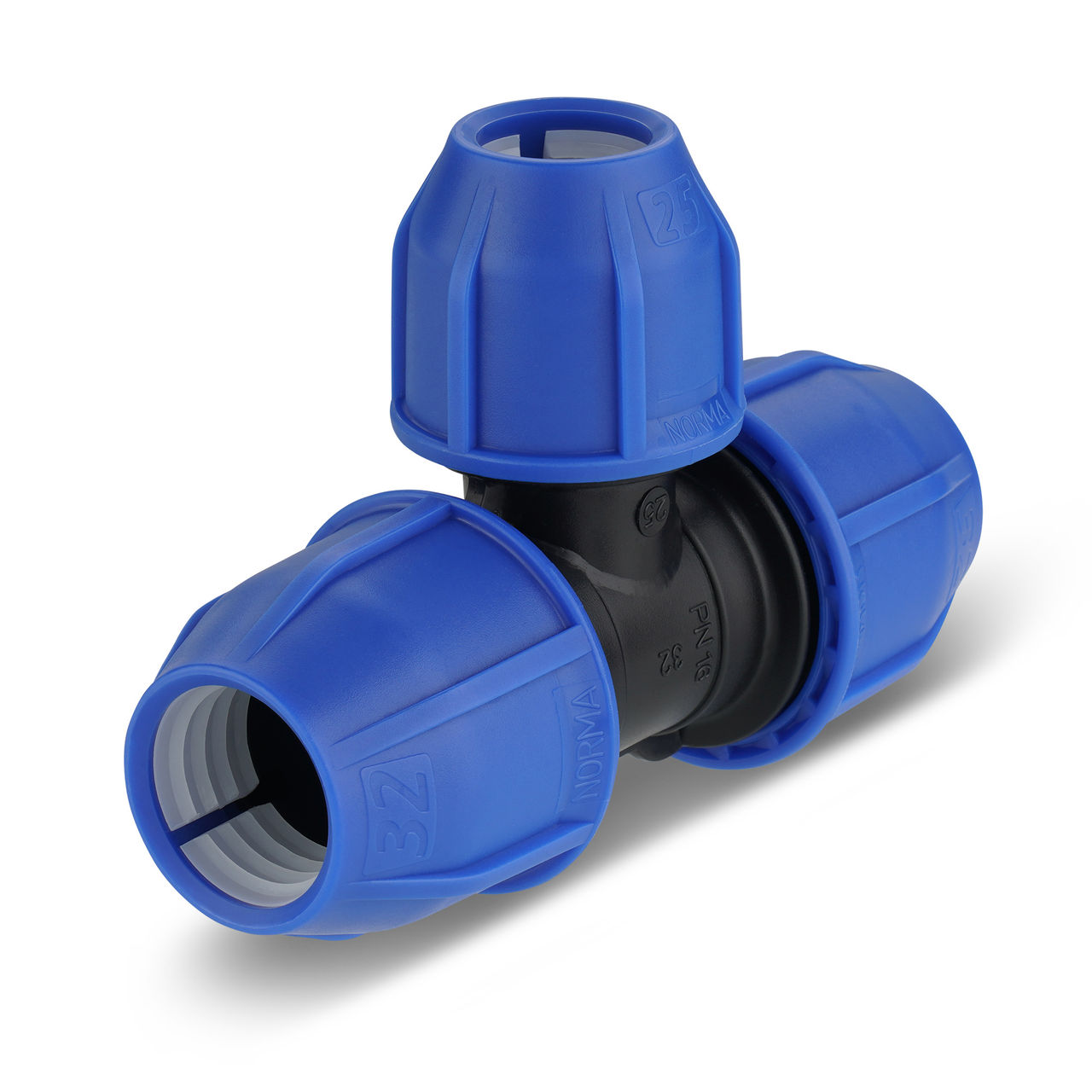

  • Reducing Tee
  • Flange Adaptor
  • Equal Elbow 90° with Central Female Thread
  • Wall Plate Elbow
  • Male Brass Threaded Adaptor
  • Female Brass Threaded Adaptor
  • Male Brass Threaded Elbow 90
  • Female Brass Threaded Elbow 90
  • Compression Manual Valve
  • Pipe Liner
Diameters from 20mm to 110mm

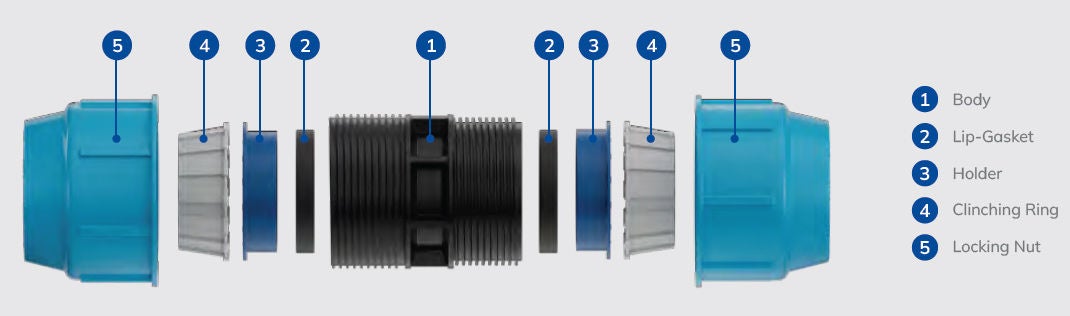

Norma Marlin PN16 exploded view
Norma Marlin PN16 installation step 1

01

Unscrew the nut one or two turns or to the last thread.

Norma Marlin PN16 installation step 2

02

Cut the pipe and deburr if necessary. Mark the insertion depth.

Norma Marlin PN16 installation step 3

03

Push the pipe to the mark or the stop-end.

Norma Marlin PN16 installation step 4

04

Screw the nut on tight. The nut can be tightened manually or using a hook tool.
