NDS Super-Flo™ Take-A-Part Laminar Flow Emitters

Super-Flo Take-A-Part Drip Emitters

Color coded and easy to maintain

Deliver precise watering to your plants with the NDS Super-Flo™ Take-a-Part™ flag emitter. Available with 4, 8, & 15 l/h flow. Features a pull flag that diassembles the flag for cleaning.

Super-Flo emitters can be connected in multiple ways: directly into supply line and used on its own; in supply line with micro tubing coming off of it to extend reach; or attached to end of micro tubing which is connected to the supply line

NOTE: flag does not adjust the water flow.

Key Benefits

  • Pull flag makes it easy to remove the top of emitter and flush out the inside to clear debris

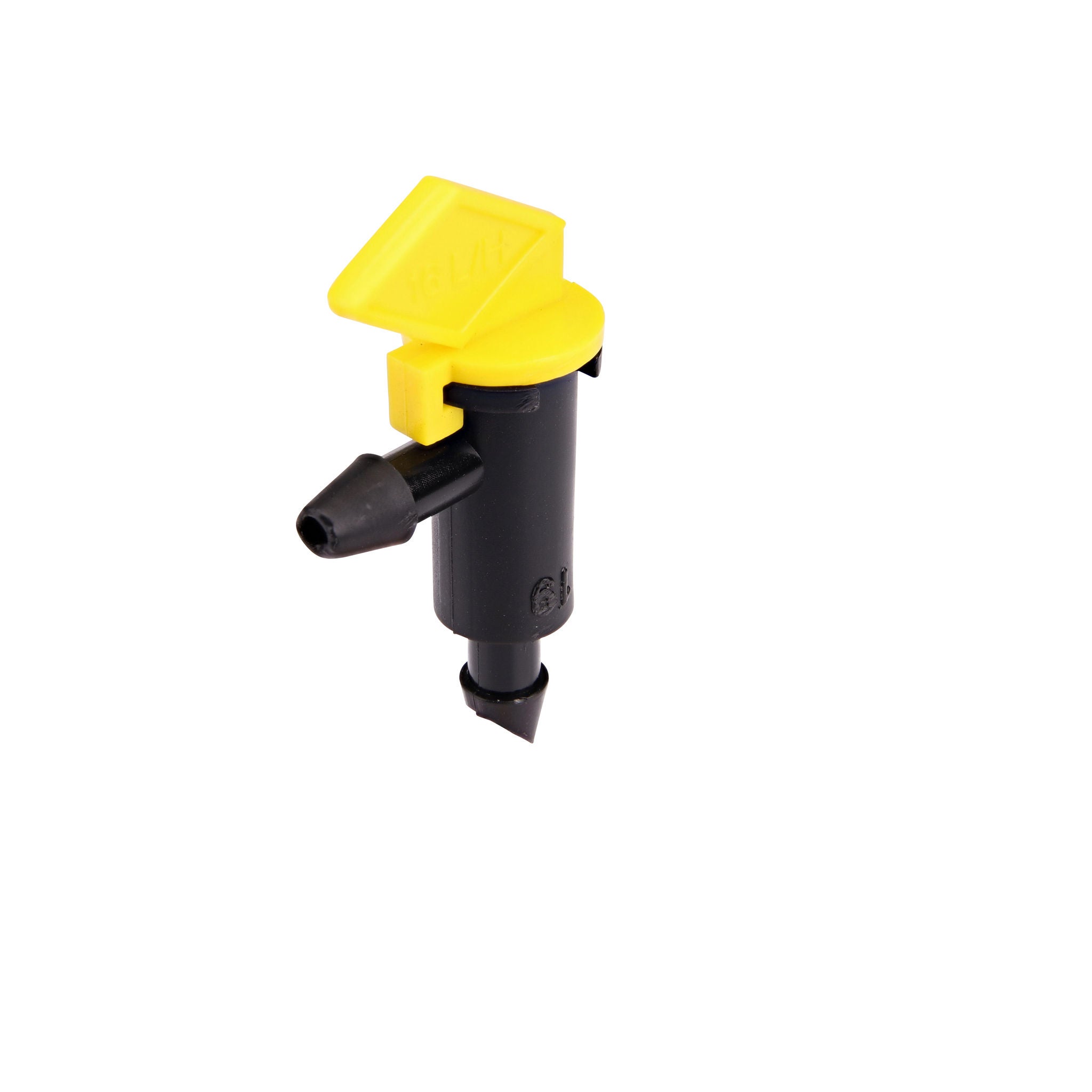

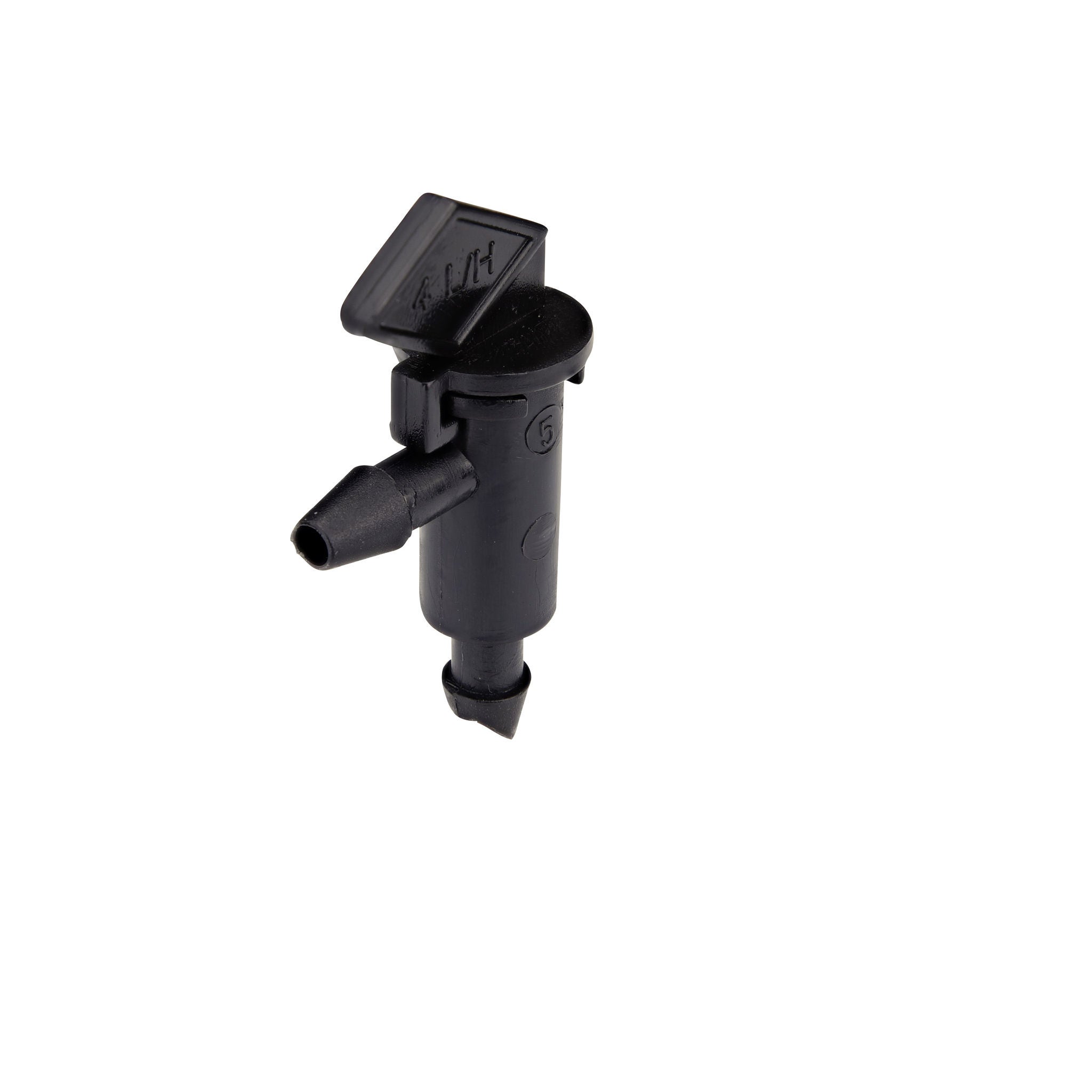

  • Color coded flag to identify flow rate: black – 4 l/h; green – 8 l/h; yellow – 15 l/h
  • 1/4 in. insert barb attaches to end of 1/4 in. micro tubing or punched hole in supply line
  • Designed to work with standard drip irrigation water pressures up to 50 PSI

Applications

  • Delivers precise watering to keep the soil moist and hydrate the plant’s root zone
  • Ideal for watering individual plants, shrubs, and trees as well as plants in containers and hanging baskets
  • As part of a complete drip irrigation system, the emitter delivers water gradually; with a non-pressure compensating emitter, expect varying water flow based on length of tubing or elevation, with higher flow closer to the water source

Materials & Sustainability

  • Emitter made of polyethylene treated with UV inhibitors to prevent fading and cracking
  • Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion

Models

Flow Rate: 4 l/h
Black
Flow Rate: 8 l/h
Green
Flow Rate: 15 l/h
Yellow
1/2 in. MPT Adapter
3/4 in. FHT Swivel Tee with Screen

Literature & Resources

Download

Datasheet - NDS Drip Emitters & Accessories

application/pdf | 507 KB
