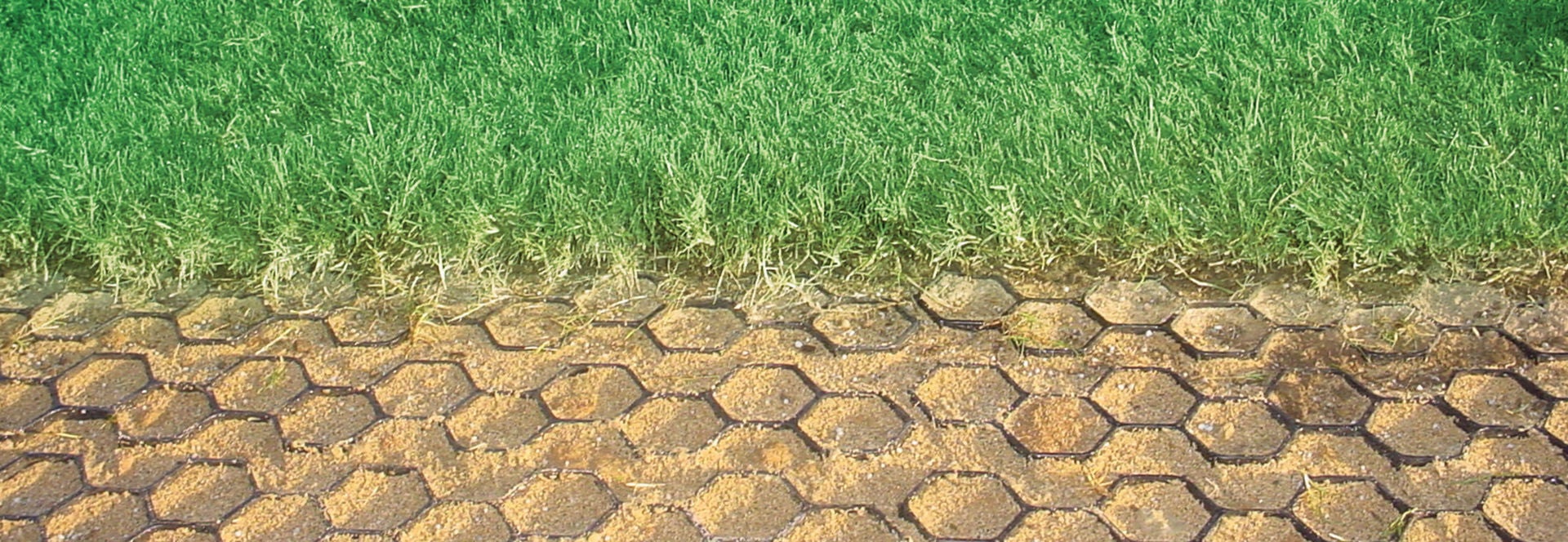

Tufftrack® Grass Pavers

Easy to Install, Environmentally Friendly, Strong & Durable

Regarded as the strongest grass paver on the market. These rigid paver panels feature an unfilled compressive strength of 86,563 psf and are capable of supporting H20 and H25 loads.

Key Benefits

  • Unfilled compressive strength of 86,563 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained.

  • Tongue-and-groove locking system provides exceptional stability, longevity, and ease of assembly; secure locking clips prevent paver displacement; no tools required.

  • Each panel features 120 nested honeycomb cells and 22 connection points; support ribs keep soil in place; cell wall height protects turf root systems.

  • Interconnected hexagonal cells with shared walls for higher strength, and domed drainage holes at the base to promote a greater flow of water, oxygen, and nutrients.

Applications

An alternative to traditional paving methods such as concrete and asphalt, Tufftrack® Grass Pavers create a durable and drivable grass surface that can support heavy vehicles while blending into the surroundings.

Ideal for emergency vehicle access roads, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas.

Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain.

Materials & Sustainability

  • Paver cells made with polypropylene (PP) containing recycled content; treated with UV inhibitors to prevent cracking.

  • Pavers are responsibly constructed using recycled materials; pavers reduce stormwater runoff; slow down erosion; recharge groundwater by allowing water to absorb into the ground.

Models

TT-24
60cm x 60cm

Literature & Resources

Download

Datasheet - NDS Landscape Solutions, Permeable Pavers & Tree Sustainability Solutions

application/pdf | 1 MB

Technical Overview

  • Compressive Strength (Native soil-filled pavers): 400,000 lbs.
  • Compressive Strength (Empty cells): 86,563 lbs.
  • 120 nested hexagonal cells per paver.

Installation Tips

10 unique tongue & groove clips per panel are easy to install and provide maximum stability.

Product ships in 60 cm squares for easy layout.

Tufftrack easy to install

Photos & Images

TT-24 on white rock bed
