BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron

SKU:

17010110

The class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) fits the BG-FILCOTEN® 100 Trench Channel Drains

Top down partial closeup view of class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Two class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) installed on one BG-FILCOTEN® 100 Trench Channel Drain with female end showing

Full top down view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Angled closeup view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Closeup view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) installed on the BG-FILCOTEN® 100 Trench Channel Drain with female end showing

Closeup view of the end of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) showing the edge and clips that secure to the channel trench drain

Underside of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) showing part number, support legs, and secure clips

The class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) fits the BG-FILCOTEN® 100 Trench Channel Drains

Top down partial closeup view of class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Two class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) installed on one BG-FILCOTEN® 100 Trench Channel Drain with female end showing

Full top down view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Angled closeup view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110)

Closeup view of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) installed on the BG-FILCOTEN® 100 Trench Channel Drain with female end showing

Closeup view of the end of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) showing the edge and clips that secure to the channel trench drain

Underside of the class D bar design ductile iron BG-FILCOTEN® 100 Trench Drain Grate (NDS 17010110) showing part number, support legs, and secure clips

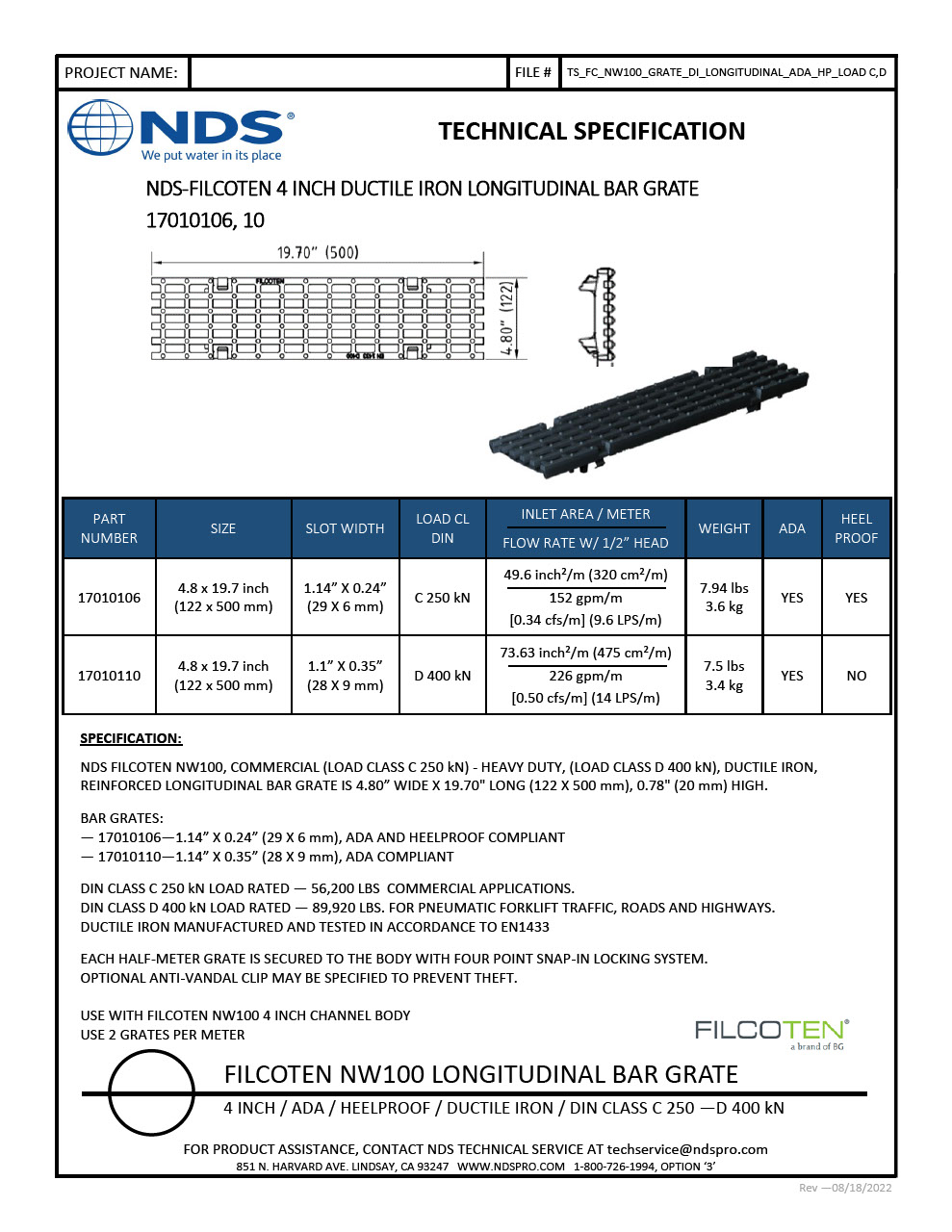

Protect the drainage system from clogging due to leaves and debris with the trench drain grate. This ductile iron grate with longitudinal bar design boasts an NDS Class D load rating when properly installed. The drain cover has an open surface area of 73.63 sq. in. per meter and flow rate of 226 GPM. ADA compliant channel grate. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 100 4 in. trench drain. Iron grates are painted black to inhibit rust; over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system

Literature & Resources

NDS Drainage Product Catalog 2024-2025

Catalogue

NDS Drainage Product Catalog 2024-2025

Guía de diseño y instalación de drenaje

Reference (NDS)

Guía de diseño y instalación de drenaje

NDS BG-FILCOTEN® Trench Drains & Grates Written Spec

CSI Specifications

NDS BG-FILCOTEN® Trench Drains & Grates Written Spec
