Dura Slope EZ-Track Radius Couplings & Grates

Dura Slope® EZ-Track™ Radius Couplings & Grates

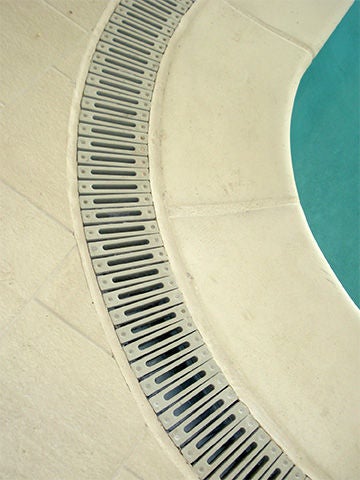

Add curved sections to the channel drain run easily, eliminating the need to measure and make angled cuts and miter pieces together. The patented U-shaped component features a 2.4° range of angular motion for flexibility. Couplings connect together to create tight curves and also connect to the Dura Slope® channel drains.

Dura Slope EZ-Track Radius Couplings & Grates

Key Features

  • Patented flexible radius coupling works with Dura Slope channel sections to add curved sections in the channel drain run
  • 2.4 degrees of maximum deflection
  • Interlocking components snap smoothly in place
  • Couplings can connect together to make tighter curves
  • Grates available in a variety of materials, colors, and styles

Applications

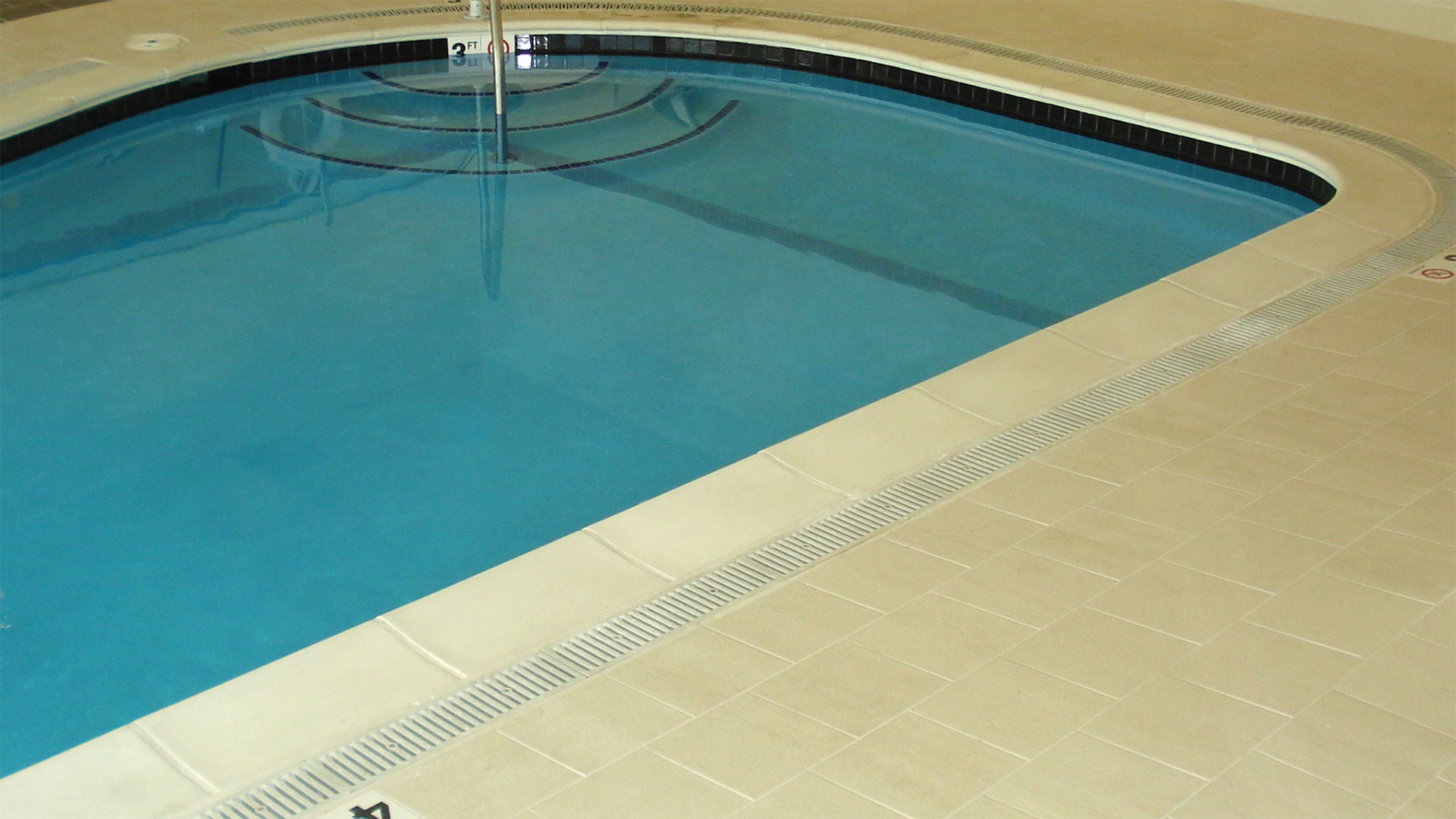

  • Ideal for driveways, concrete and paver patios, courtyards, walkways, sports facilities, pool and spa areas, and fountains

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • The Dura Slope EZ-Track Radius Couplings and Grates work with Dura Slope Channel Drains as part of a coplete channel drain system to collect and direct water to drain pipes for proper release downstream or to an infiltration device

Installation & Maintenance

  • Connect to Dura Slope channels to make 2.4° bends; connect individual couplings together for tighter curves

  • Remove radius coupling grate to access area for cleaning and maintenance

Materials & Sustainability

  • PIM Product Level Primary material bullet point
  • PIM Product Level Secondary material bullet point
  • PIM Product Level Sustainability bullet point 1

Product Models

Part Number
Description
DSRCDura Slope™ Channel Drain EZ-Track™ Radius Coupling, Fits Channel Drains from DS-091 to DS-114, Neutral, 3° Bend, Pack of 6
DSRC-097Dura Slope™ Channel Drain EZ-Track™ Radius Coupling, 6.35 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
DSRC-100Dura Slope™ Channel Drain EZ-Track™ Radius Coupling, 7.36 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
DSRC-103Dura Slope™ Channel Drain EZ-Track™ Radius Coupling, 8.37 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6
DSRC-106Dura Slope™ Channel Drain EZ-Track™ Radius Coupling, 9.37 in. Deep, Neutral, 3° Bend, Light Gray Plastic, Pack of 6

Part Number
Description
DS-660MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, White Plastic, Pack of 6
DS-661MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Dark Gray Plastic, Pack of 6
DS-661LGMGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Light Gray Plastic, Pack of 6
DS-662MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Green Plastic, Pack of 6
DS-663MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Black Plastic, Pack of 6
DS-664MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Sand Plastic, Pack of 6
DS-665MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Brick Red Plastic, Pack of 6
DS-681LGMGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Solid Grate, Light Gray Plastic, Pack of 6
DS-232MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Slotted Grate, Ductile Iron, Pack of 6
DS-226MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Grate, Perforated Design, Stainless Steel, Pack of 6
DS-221MGDura Slope™ Channel Drain EZ-Track™ Radius Coupling Grate with Rounded Edges, Galvanized Steel, Pack of 6
