Atrium Drain Grates

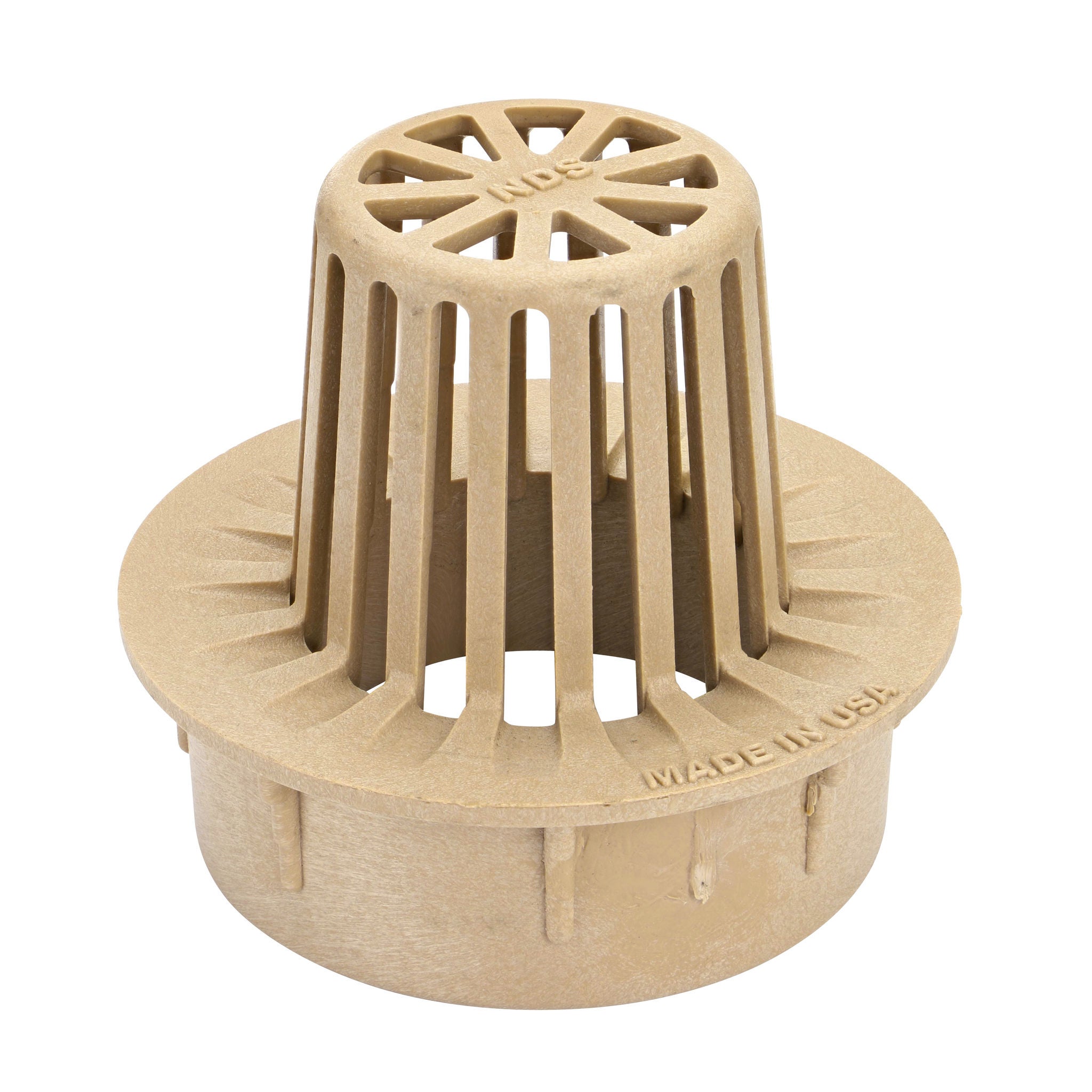

Atrium Grate

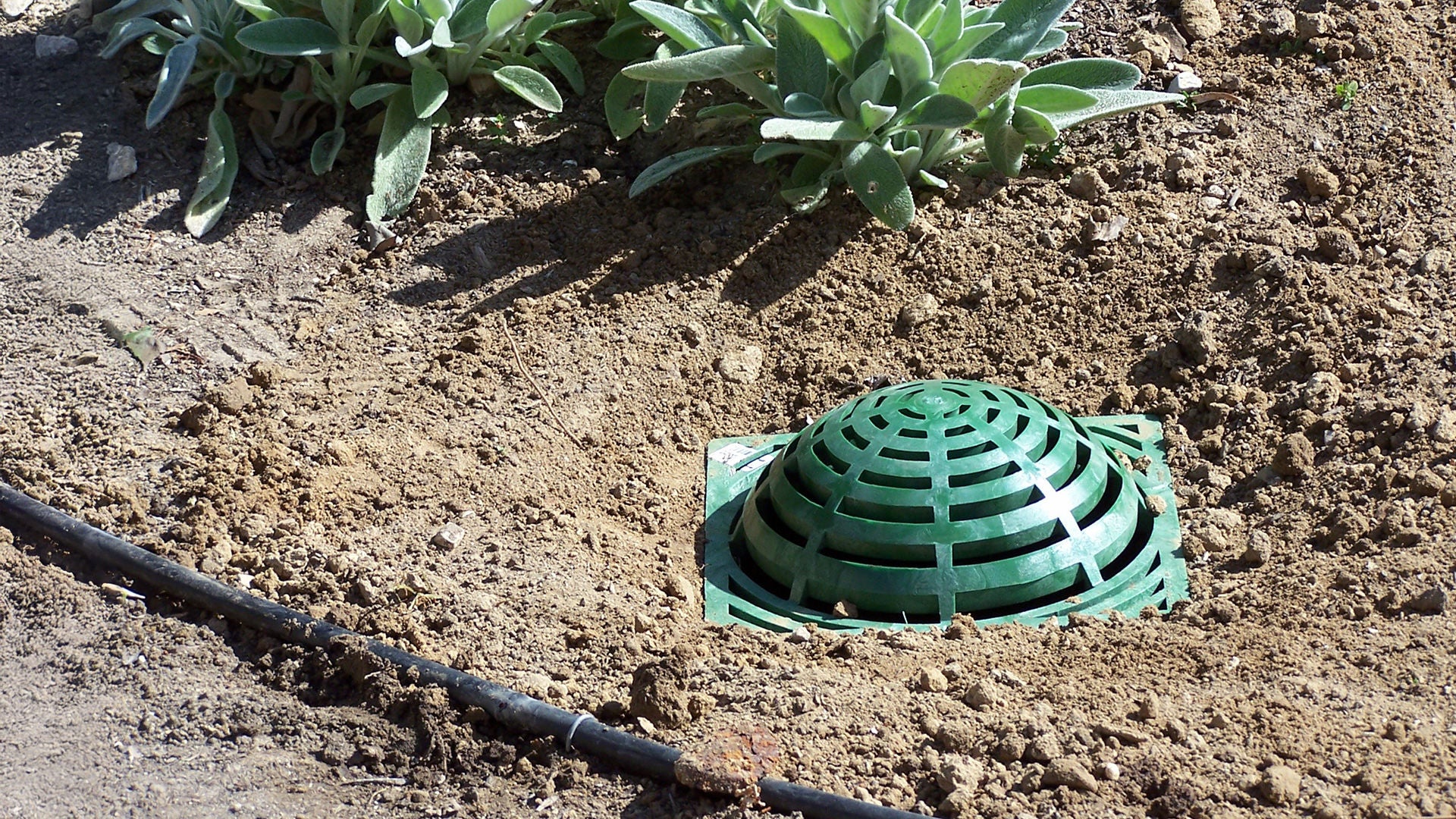

Drain excess water from areas prone to leaves and mulch with the atrium drain grate. Unlike a flat grate that lies flush, the atrium grate has a raised dome to block debris at the base while water flows through the top.


Key Features

  • Ideal for mulched landscape beds, natural areas, and window wells
  • Raised dome design blocks leaves, mulch, and debris around the base while water flows through the top
  • Available in a variety of sizes, colors, and materials
  • Connects directly to drain pipes and fittings. Some models are compatible with the 6 in. round Spee-D® catch basin.

Applications

  • Protects the drainage system by blocking debris from entering and potentially clogging the pipeline

  • Ideal for mulched landscape beds, natural areas, window wells, and areas with heavy leaves, mulch, and debris

  • Fits drain pipe or fitting with a soil-tight fit; some models fit 6 in. round Spee-D® catch basin

Installation & Maintenance

  • Works with connected drain pipe or fitting to capture and convey excess surface water for proper release downstream

  • Removable grate makes it easy to access pipe for cleaning and maintenance

Materials & Sustainability

  • Plastic grates are available in polyvinyl chloride (PVC), high-density polyethylene (HDPE), and brass

  • Plastic grates are made in the USA

  • Metal grates are imported

Product Models

Part Number
(click for more info)		Description
2702 in. Atrium Grate, Connects to 2 in. Drain Fittings, Gray Plastic
703 in. Atrium Grate, Connects to 3 in. Drain Pipes and Fittings, Green Plastic
723 in. Atrium Grate, Connects to 3 in. Drain Pipes and Fittings, Gray Plastic
743 in. Atrium Grate, Connects to 3 in. Drain Pipes and Fittings, Black Plastic
74S3 in. Atrium Grate, Connects to 3 in. Drain Pipes and Fittings, Sand Plastic
78B4 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Brass
754 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Green Plastic
784 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Black Plastic
78S4 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Sand Plastic
806 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
816 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
906 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
90S6 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
910B4 in. Round Grate with Collar, Connects to 3 in. Drain Pipe and 4 in. Drain Fittings, Satin Brass and Plastic
764 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Gray Plastic
90B6 in. Atrium Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Brass
