EZ Roll® Honeycomb Gravel Pavers for Driveways

By NORMA Group

EZ Roll® Gravel Pavers

Create durable, load-bearing gravel driveways with EZ Roll® honeycomb pavers from NDS. Engineered for H20 & H25 loads with superior drainage.

Unfilled compressive strength of 53,683 psf; supports H-20 and H-25 loads; built for durability with a life expectancy of 25 years when well maintained; may be plowed to remove snow
Panels come preassembled in easy-to-install rolls with thermally welded, puncture-resistant geotextile fabric; fabric prevents gravel from migrating downward and lifting the paver, and is also porous to allow for filtration of stormwater runoff
Each 2 ft. X 2 ft. section features 72 nested honeycomb cells

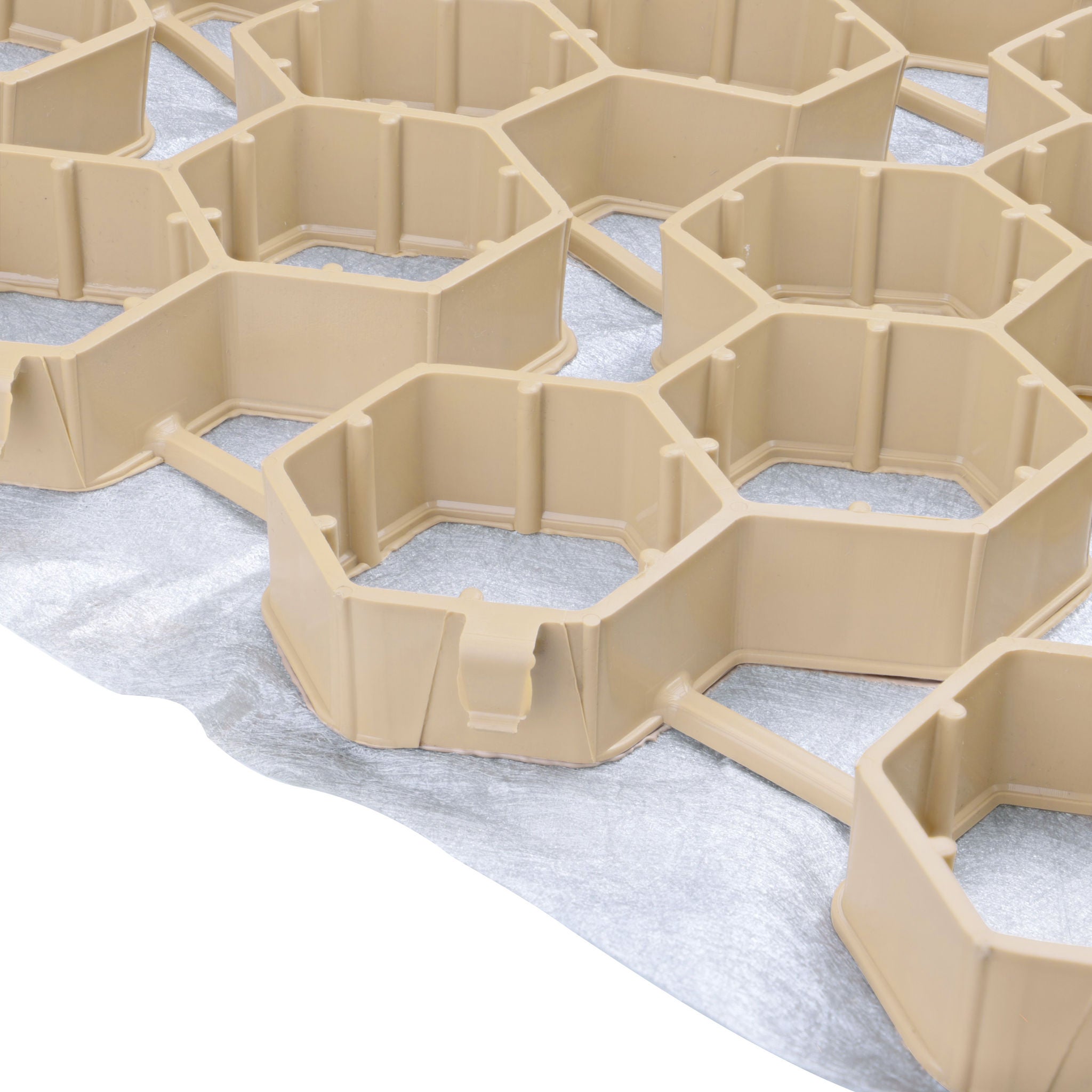

Interconnected hexagonal cells with shared walls provide strength; available in four colors: black, gray, brick red, and tan
May contribute to points for LEED certification

An alternative to traditional paving methods such as concrete and asphalt, EZ Roll® Gravel Pavers create a durable and drivable gravel surface that can support heavy vehicles while maintaining the look and functionality of a gravel road
Designed for continuous use in locations such as driveways, parking lots, golf cart paths, jogging tracks, bike paths, ATV paths, equestrian parks, trail reinforcements, and runoff areas
Best used in areas where subsoil infiltrates the water; poor draining soil may require an underdrain

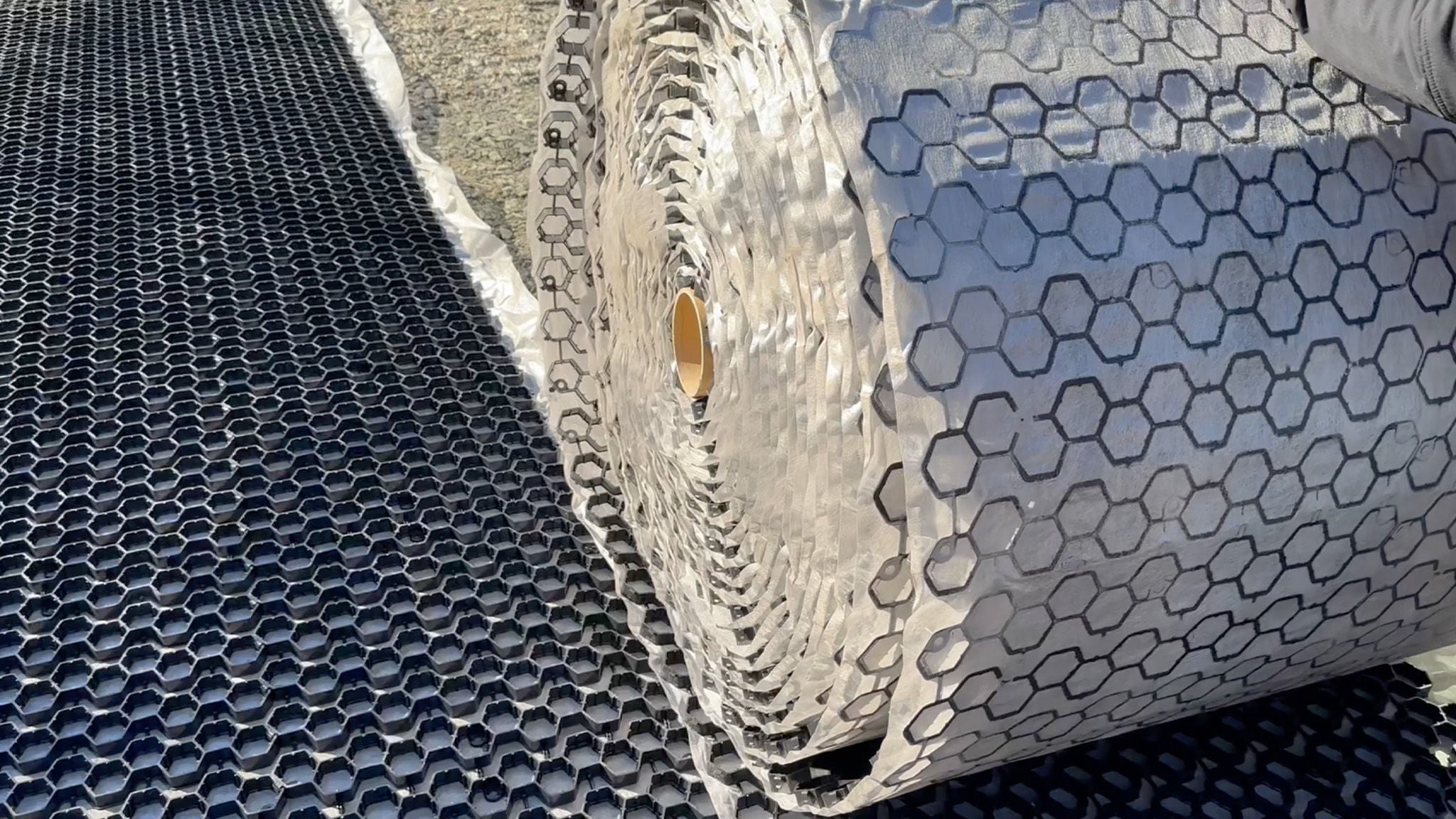

Prepare base; roll pavers out with fabric side down
Align rolls by laying one roll down first, then pulling edge of adjacent roll snug against it
Apply stakes; fill with gravel as specified
Periodically check for damage and replace panel as needed; see maintenance and operation guide for details

Paver cells made of high-density polyethylene (HDPE) containing recycled content; treated with UV inhibitors to prevent cracking
Geotextile Typar® fabric made of polypropylene (PP) treated with UV inhibitors
Pavers are responsibly constructed using recycled materials; pavers reduce stormwater runoff; slow down erosion; recharge groundwater by allowing water to absorb into the ground
Made in the USA

Part Number	Description
GP4X150	3.87 ft. X 149 ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Black
GP4X150G	3.87 ft. X 149 ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Gray
GP4X150R	3.87 ft. X 149 ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Brick Red
GP4X150T	3.87 ft. X 149 ft. EZ Roll® Gravel Pavers, 577 sq. ft. per roll, Tan
GPSTAKE	EZ Roll® Gravel Paver Stake, 40-Pack
