Flo-Lock™ Gripper Couplings and Adapters

Flo-Lock™ Gripper Couplings and Adapters
Use Flo-Lock™ gripper couplings and adapters to connect pipe and form a leak-proof joint with less chance of pull-out when properly installed. Helps prevent costly property damage, pipe corrosion, and system issues.

Key Features

  • Flo-Lock™ couplings and adapters are used to connect pipes; Flo-Lock™ products are installed in tubing or pipe systems to allow water to flow through freely
  • NDS offers a wide range of Flo-Lock™ gripper couplings and adapters to  work with a variety of pipe sizes and types

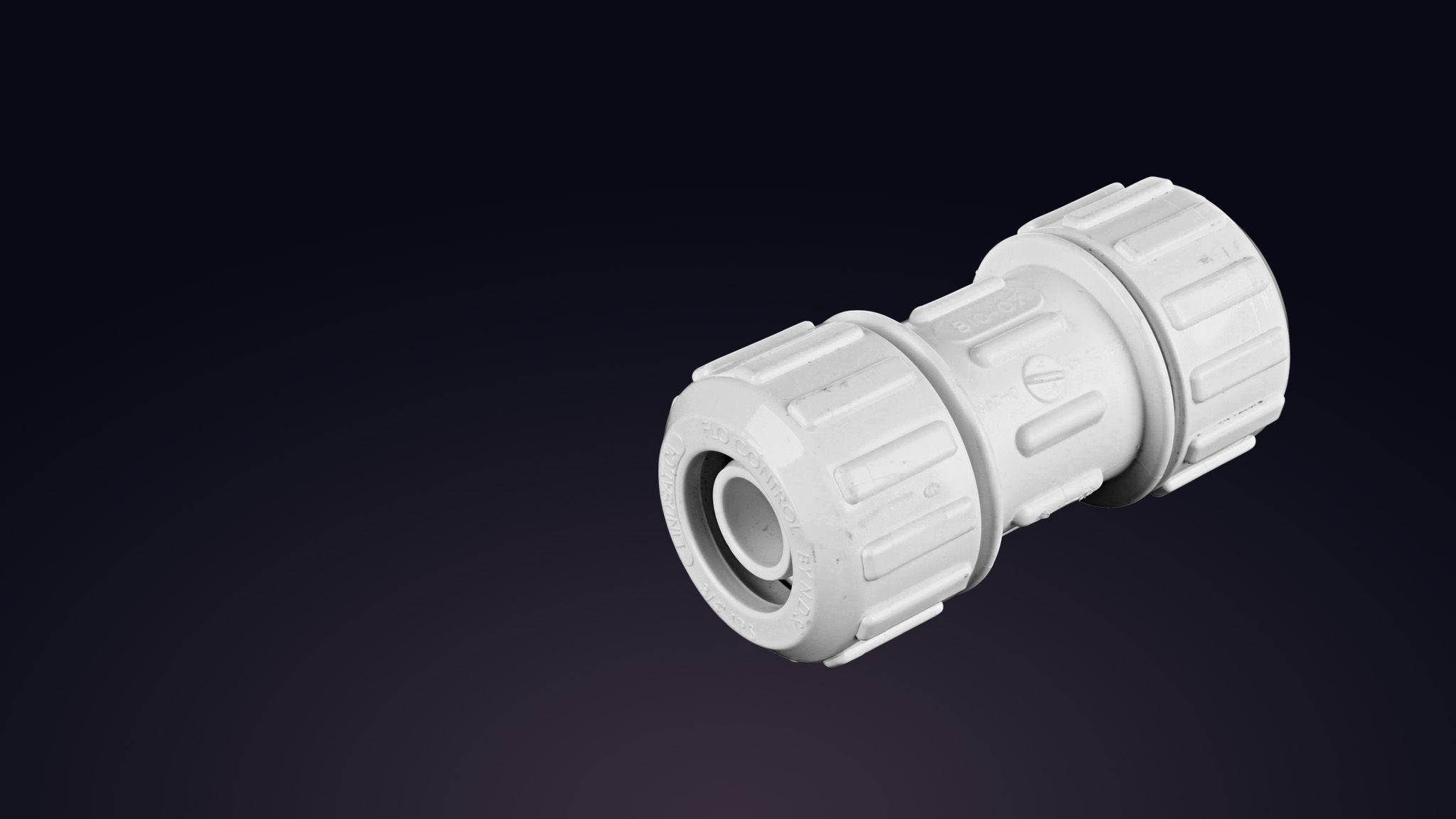

  • Gripper coupling provides a leak-resistant connection between two pipes

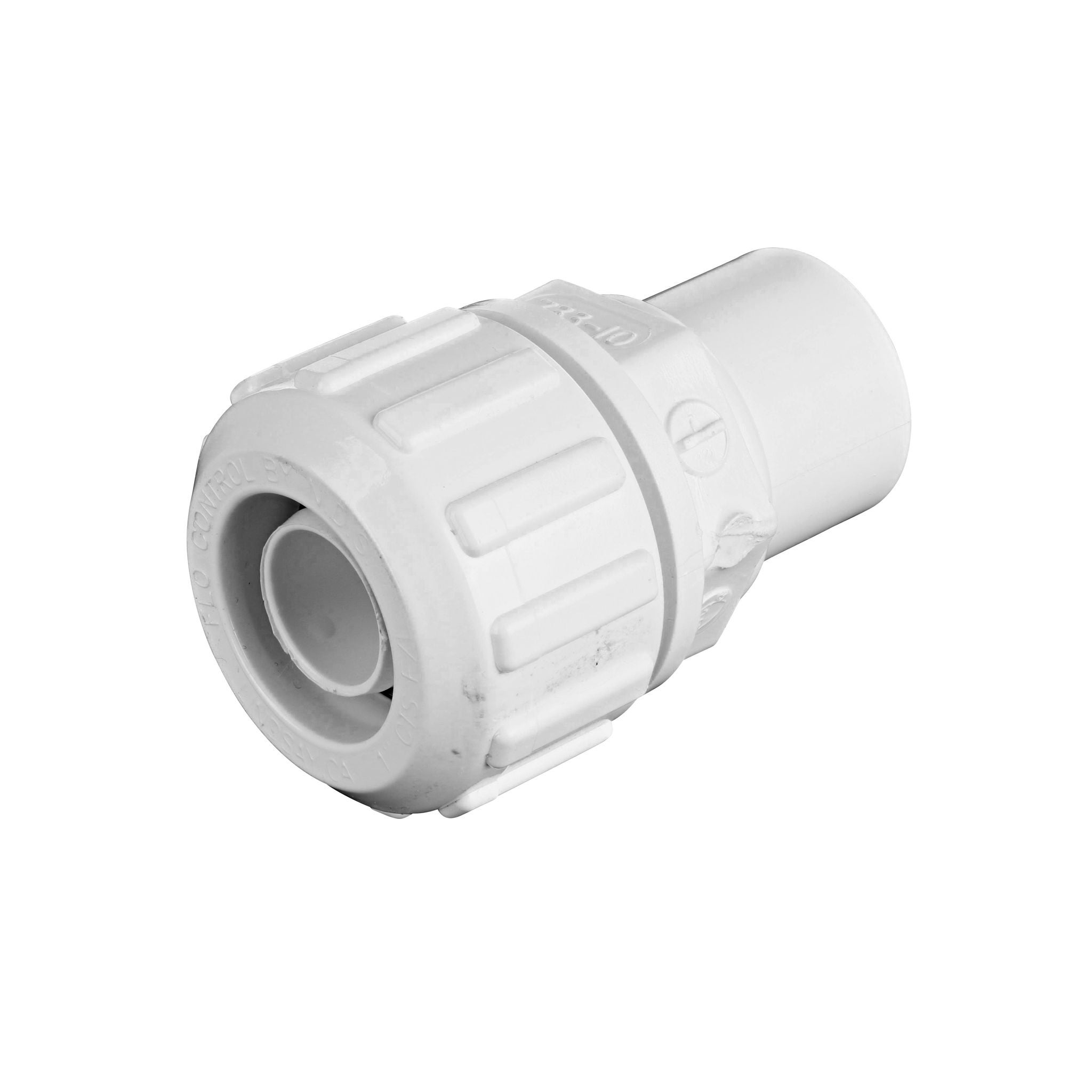

  • Gripper adapter provides a leak-resistant connection between smooth pipe and threaded pipe end
  • Gripper couplings and adapters are made of polyvinyl chloride (PVC)

Applications

  • Flo-Lock pipe couplings and adapters make water service line installations easy and provide a leak-resistant joint with less chance of pipe pull-out

  • Use for pool and spa, irrigation, and plumbing applications; works with most plastic pipe to transport water and provide a leak-resistant connection

  • Flo-Lock™ gripper fittings connect two pipes to allow water to flow through

Installation & Maintenance

  • Coupling has two compression ends that connect onto pipe; no glue required

  • Adapter has one compression end that connects onto pipe and one threaded end that connects to pipe end; no glue required

  • Gripper fitting performance issues can indicate damage; replace as needed

Materials & Sustainability

  • Gripper couplings and adapters are made of polyvinyl chloride (PVC)

  • Gripper is made of steel; EPDM O-Ring

  • Parts made in the USA

  • Onsite flow management helps provide a leak- and corrosion-free system

Product Models

Part Number
Description
112-05Flo-Lock™ PVC Gripper Coupling, 1/2 in. IPS, White
112-07Flo-Lock™ PVC Gripper Coupling, 3/4 in. IPS, White
710-07Flo-Lock™ PVC Gripper Coupling, 3/4 in. SDR-9 CTS, White
810-07Flo-Lock™ PVC Gripper Coupling for PE Pipe, 3/4 in. SIDR-7, White
112-10Flo-Lock™ PVC Gripper Coupling, 1 in. IPS, White
710-10Flo-Lock™ PVC Gripper Coupling, 1 in. SDR-9 CTS, White
810-10Flo-Lock™ PVC Gripper Coupling for PE Pipe, 1 in. SIDR-7, White
710-17-9Flo-Lock™ PVC Gripper Reducer Coupling, 1 in. SDR-9 CTS X 3/4 in. SDR-9 CTS, White
710-17Flo-Lock™ PVC Gripper Reducer Coupling, 1 in. SDR-9 CTS X 3/4 in. SDR-11, White
112-12Flo-Lock™ PVC Gripper Coupling, 1-1/4 in. IPS, White
710-12Flo-Lock™ PVC Gripper Coupling, 1-1/4 in. SDR-9 CTS X 1-1/4 in. PE TS, White
112-15Flo-Lock™ PVC Gripper Coupling, 1-1/2 in. IPS, White
710-15Flo-Lock™ PVC Gripper Reducer Coupling, 1-1/2 in. SDR-9 CTS X 1-1/4 in. PE TS, White
112-20Flo-Lock™ PVC Gripper Coupling, 2 in. IPS, White
710-20Flo-Lock™ PVC Gripper Coupling, 2 in. SDR-9 CTS, White

Part Number
Description
135-05Flo-Lock™ PVC Gripper Adapter, 1/2 in. IPS X 1/2 in. IPS MPT, White
136-05Flo-Lock™ PVC Gripper Adapter, 1/2 in. IPS X 1/2 in. IPS FPT, White
235-05Flo-Lock™ PVC Gripper Adapter, 1/2 in. CTS X 1/2 in. CTS MPT, White
135-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS X 3/4 in. IPS MPT, White
136-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS X 3/4 in. IPS FPT, White
730-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 3/4 in. MPT, White
731-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 3/4 in. FPT, White
730-71Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS  X 1 in. MPT, White
731-71Flo-Lock™ PVC Gripper Adapter, 3/4 in. SDR-9 CTS X 1 in. FPT, White
733-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS Spigot X 3/4 in. SDR-9 CTS, White
733-71Flo-Lock™ PVC Gripper Adapter, 3/4 in. IPS Spigot X 1 in. SDR-9 CTS, White
830-07Flo-Lock™ PVC Gripper Adapter for PE Pipe, 3/4 in. SIDR-7 MPT X 3/4 in. PE TS, White
831-07Flo-Lock™ PVC Gripper Adapter for PE Pipe, 3/4 in. SIDR-7 FPT X 3/4 in. PE TS, White
935-07Flo-Lock™ PVC Gripper Adapter, 3/4 in. CTS FPT X IPS Spigot, White
135-10Flo-Lock™ PVC Gripper Adapter, 1 in. IPS X 1 in. IPS MPT, White
136-10Flo-Lock™ PVC Gripper Adapter, 1 in. IPS X 1 in. IPS FPT, White
733-10Flo-Lock™ PVC Gripper Adapter, 1 in. IPS Spigot X 1 in. SDR-9 CTS, White
830-10Flo-Lock™ PVC Gripper Adapter for PE Pipe, 1 in. SIDR-7 MPT X 1 in. PE TS, White
831-10Flo-Lock™ PVC Gripper Adapter for PE Pipe, 1 in. SIDR-7 FPT X 1 in. PE TS, White
730-10Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1 in. MPT, White
731-10Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1 in. FPT, White
731-12-10Flo-Lock™ PVC Gripper Adapter, 1 in. SDR-9 CTS X 1-1/4 in. FPT, White
235-10Flo-Lock™ PVC Gripper Adapter, 1 in. CTS X 1 in. CTS MPT, White
935-10Flo-Lock™ PVC Gripper Adapter, 1 in. CTS FPT X IPS Spigot, White
135-12Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. IPS X 1-1/4 in. IPS MPT, White
733-12Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. IPS Spigot X 1-1/4 in. SDR-9 CTS, White
730-12Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. SDR-9 CTS X 1-1/4 in. MPT, White
731-12Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. SDR-9 CTS X 1-1/4 in. FPT, White
235-12Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. CTS X 1-1/4 in. CTS MPT, White
935-125Flo-Lock™ PVC Gripper Adapter, 1-1/4 in. CTS FPT X 1-1/2 IPS S, White
135-15Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. IPS X 1-1/2 in. IPS MPT, White
733-15Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. IPS Spigot X 1-1/2 in. SDR-9 CTS, White
730-15Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. SDR-9 CTS X 1-1/2 in. MPT, White
731-15Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. SDR-9 CTS X 1-1/2 in. FPT, White
235-15Flo-Lock™ PVC Gripper Adapter, 1-1/2 in. CTS X 1-1/2 in. CTS MPT, White
135-20Flo-Lock™ PVC Gripper Adapter, 2 in. IPS X 2 in. IPS MPT, White
733-20Flo-Lock™ PVC Gripper Adapter, 2 in. IPS Spigot X 2 in. SDR-9 CTS, White
235-20Flo-Lock™ PVC Gripper Adapter, 2 in. CTS X 2 in. CTS MPT, White
730-20Flo-Lock™ PVC Gripper Adapter, 2 in. SDR-9 CTS X 2 in. MPT, White
731-20Flo-Lock™ PVC Gripper Adapter, 2 in. SDR-9 CTS X 2 in. FPT, White
935-20Flo-Lock™ PVC Gripper Adapter, 2 in. CTS FPT X 2 IPS S, White
