Square Drain Grates

Drain Grate

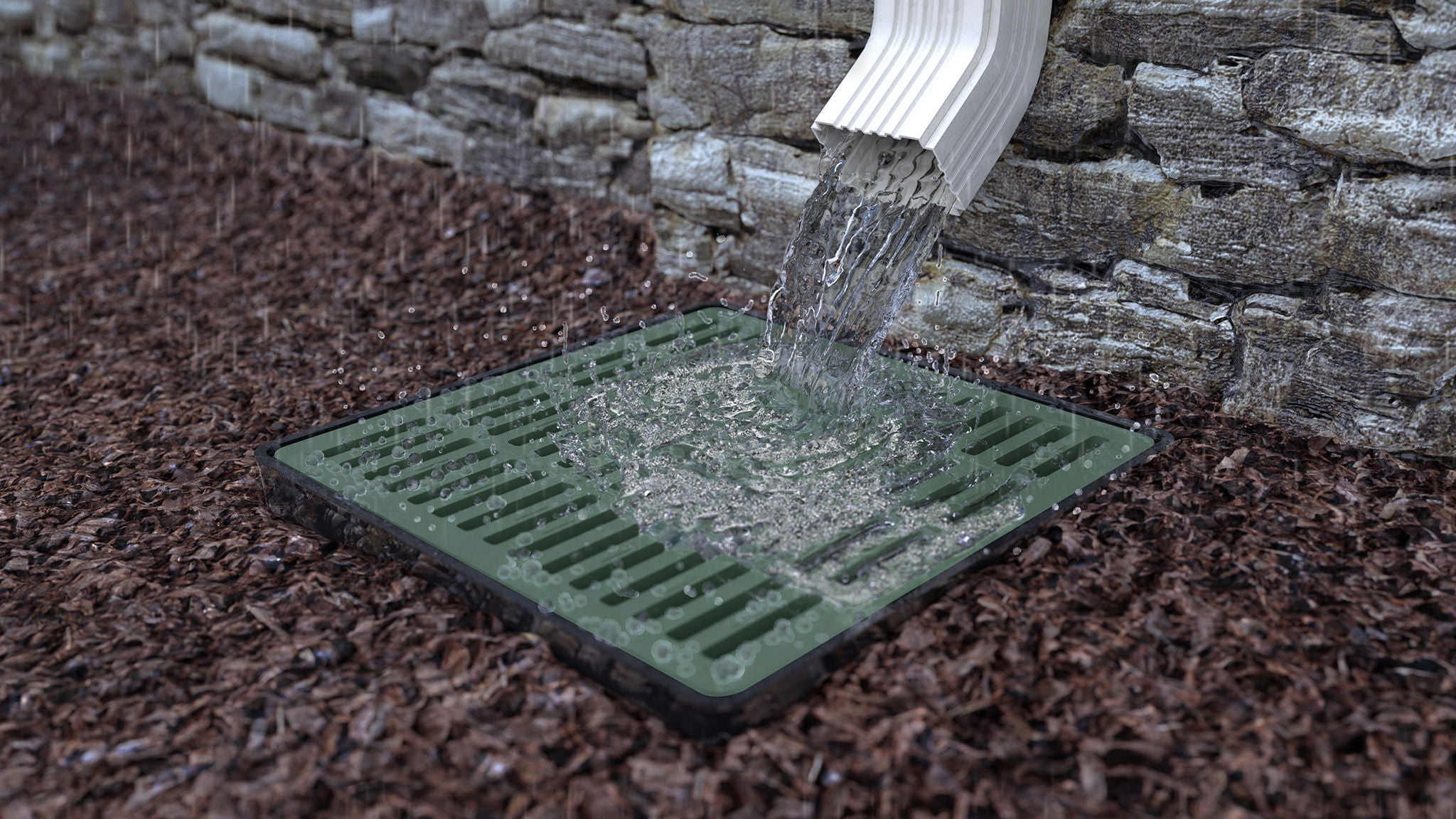

Prevent leaves and debris from entering and potentially clogging the pipeline as water drains with the square grate. Ideal for small lawns, landscaped areas, patios, and walkways. The square drain cover has increased open surface area and flow capacity compared to a round grate matching the pipe diameter. Built to stand up to the elements.

Key Features

  • Ideal for small lawns, landscaped areas, patios, and walkways
  • Flared out design provides increased open surface area and flow capacity compared to round grate matching pipe diameter
  • Available in a variety of sizes, colors, and materials
  • Connects directly to drain pipes and fittings. Some models are compatible with the 6 in. round Spee-D® catch basin.

Applications

  • Protects the drainage system by blocking debris from entering and potentially clogging the pipeline

  • Ideal for small lawns, landscaped areas, patios, and walkways

  • Fits drain pipe or fitting with a soil-tight fit; some models fit 6 in. round Spee-D® catch basin

Installation & Maintenance

  • Works with connected drain pipe or fitting to capture and convey excess surface water for proper release downstream

  • Removable grate makes it easy to access pipe for cleaning and maintenance

Materials & Sustainability

  • Plastic grates are available in high-density polyethylene (HDPE), satin and polished brass, and cast iron
  • Collar made with polyvinyl chloride (PVC)
  • Low-profile adapter made with high-impact polystyrene (HIPS)
  • Plastic grates are made in the USA
  • Metal grates are imported

Product Models

Part Number
(click for more info)		Description
14 in. Square Grate, Connects to 3 in. Drain Pipes and Fittings, Green Plastic
24 in. Square Grate, Connects to 3 in. Drain Pipes and Fittings, Black Plastic
34 in. Square Grate, Connects to 3 in. Drain Pipes and Fittings, Gray Plastic
913B5 in. Square Grate with Collar, Connects to 3 in. Drain Pipes and 4 in. Fittings, Satin Brass and Plastic
914PB5 in. Square Grate with Collar, Connects to 3 in. Drain. Pipes and 4 in. Fittings, Polished Brass and Plastic
75 in. Square Grate, Connects to 4 in. Drain Pipes and Fittings, Green Plastic
85 in. Square Grate, Connects to 4 in. Drain Pipes and Fittings, Black Plastic
95 in. Square Grate, Connects to 4 in. Drain Pipes and Fittings, Gray Plastic
920B6 in. Square Grate with Low-Profile Adapter Drain, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Satin Brass and Plastic
921B6 in. Square Grate with Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe and Fittings, Satin Brass and Plastic
922PB6 in. Square Grate with Low-Profile Adapter Drain, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipe and Fittings, Pol. Brass and Plastic
923PB6 in. Square Grate with Low-Profile Adapter Drain, Connects. to 3 in. and 4 in. Drain Pipes and Fittings, Polished Brass and Plastic
46 in. Square Grate, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Black Plastic
56 in. Square Grate, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Green Plastic
66 in. Square Grate, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Gray Plastic
06S6 in. Square Grate, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Sand Plastic
6406 in. Square Grate with Low-Profile Adapter Drain, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Black Plastic
6416 in. Square Grate with Low-Profile Adapter Drain, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Green Plastic
6426 in. Square Grate with Low-Profile Adapter Drain, Connects to 3 in. and 4 in. Drain Pipes and Fittings, Gray Plastic
7717 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
7727 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
7737 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
773S7 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
8818 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
8828 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
883S8 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
9509 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Green Plastic
9609 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Gray Plastic
9709 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Black Plastic
970S9 in. Square Grate, Connects to 6 in. Spee-D® Basin, 6 in. Drain Pipes and Fittings, Sand Plastic
D12H-WO12 in. Square Hinged Duracast™ Grate, Connects to 12 in. Drain Pipes, Cast Iron
