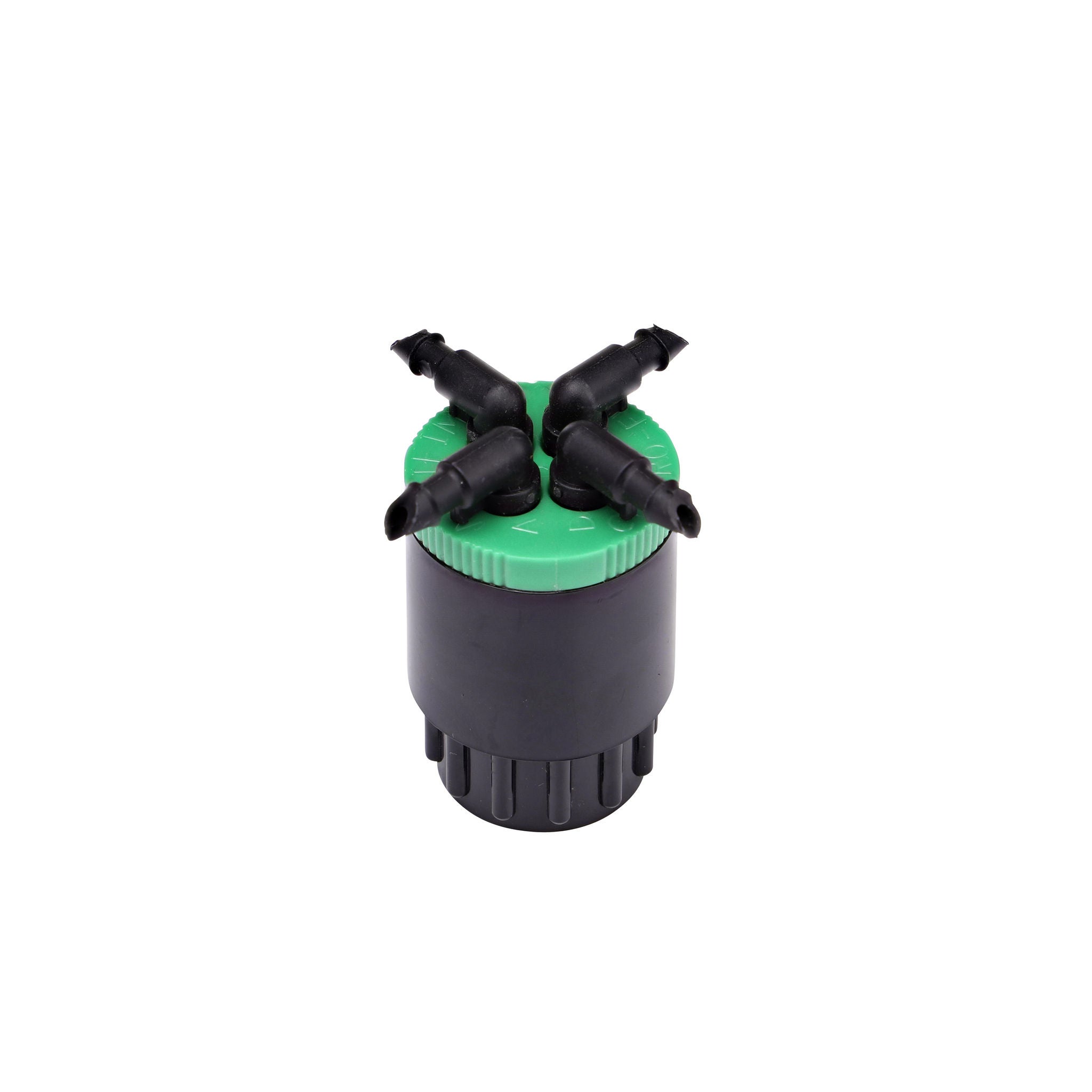

Cuatro-Flo™ pressure-compensating bubblers provide steady watering for up to 4 plants, with a constant flow from each outlet, even when the water pressure varies. Choose from 2.0, 6.0, 10.0, or 20.0 GPH per outlet.
Key Features
Converts a sprinkler riser into a multi-outlet, low-flow drip irrigation emitter
Four barbed swivel outlets enable tubing to be positioned where desired
Each pressure compensating outlet maintains a steady discharge rate, even when the water pressure varies
Color coded for easy identification of flow rate: blue – 2.0 GPH; black – 6.0 GPH; red – 10 GPH; green – 20 GPH
Designed to work with standard drip irrigation water pressures up to 50 PSI
Applications

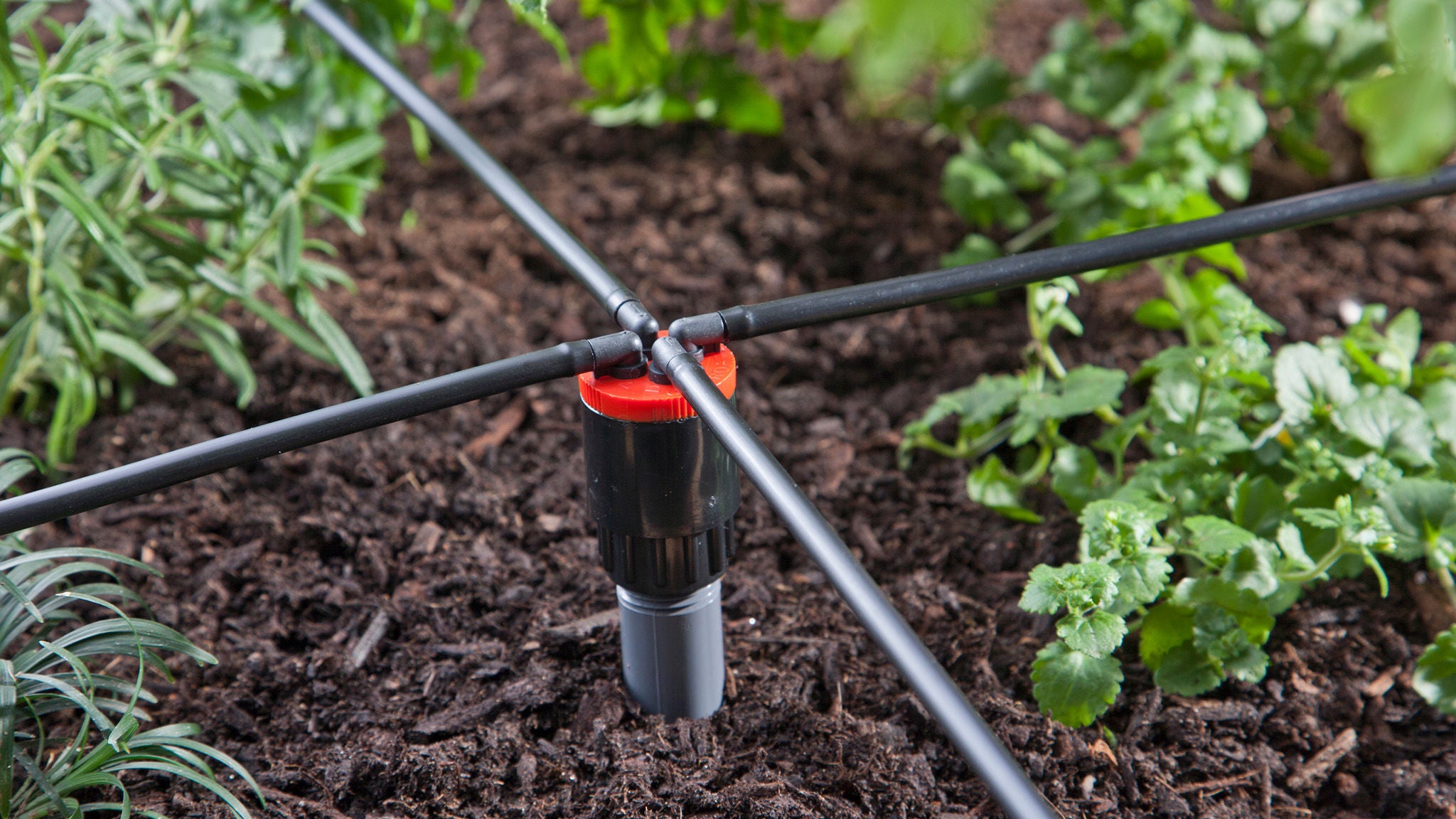

Converts an underground sprinkler system to a micro irrigation drip system that waters up to 4 plants with a constant flow rate
Ideal for landscaped perimeters and garden areas; can be used above grade or below grade in an emitter access box
As part of a complete drip system, the bubbler delivers low volume irrigation to the plant’s root zone; the pressure compensating emitter maintains a constant flow rate should the water pressure change, and at varying positions from the water source
Installation & Maintenance
Connect the 1/2 in. FPT inlet to a 1/2 in. MPT connection point on an underground sprinkler riser; 4 barbed outlets connect to 1/4 in. distribution tubing (A220 and A250) or 1/4 in. Dura Flo™ JR dripline
Periodically check for leaks or damage and repair as needed; recommended operating pressure for most emitters is up to 50 PSI
Materials & Sustainability
Emitter made of Acrylonitrile Butadiene Styrene (ABS) treated with UV inhibitors to prevent fading and cracking
Made in the USA
Drip irrigation can reduce water usage by up to 70% compared to conventional sprinkler irrigation when used properly; for most drip irrigation products, water is applied precisely and at the rate the soil can accept it to prevent runoff and erosion
Product Models
Part Number
Description
CFL 2
Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 2.0 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
CFL 6
Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 6.0 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
CFL 10
Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 10 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
CFL 20
Cuatro-Flo™ Pressure Compensating Bubbler, Four Swivel Barbed Outlets, 20 GPH per Outlet, 1/2 in. FPT Inlet, 25-Pack
