NDS Pro-Spec® Series Telecom Boxes & Covers

NDS Telecom Boxes

The Stronghold for Your Broadband Infrastructure

Pro-Spec® commercial grade telecom boxes are engineered for heavy-duty use and designed for ease of installation and service for most types of FTTH (fiber to the home) applications. Available with optional marker disc.

Keep your network connected and protected with NDS Pro-Spec® commercial grade Telecom Boxes

Keep Your Network Connected and Protected

USA-made and built tough for long-term reliability, these durable telecom boxes protect fiber optic installations and provide fast and easy access for service and maintenance.

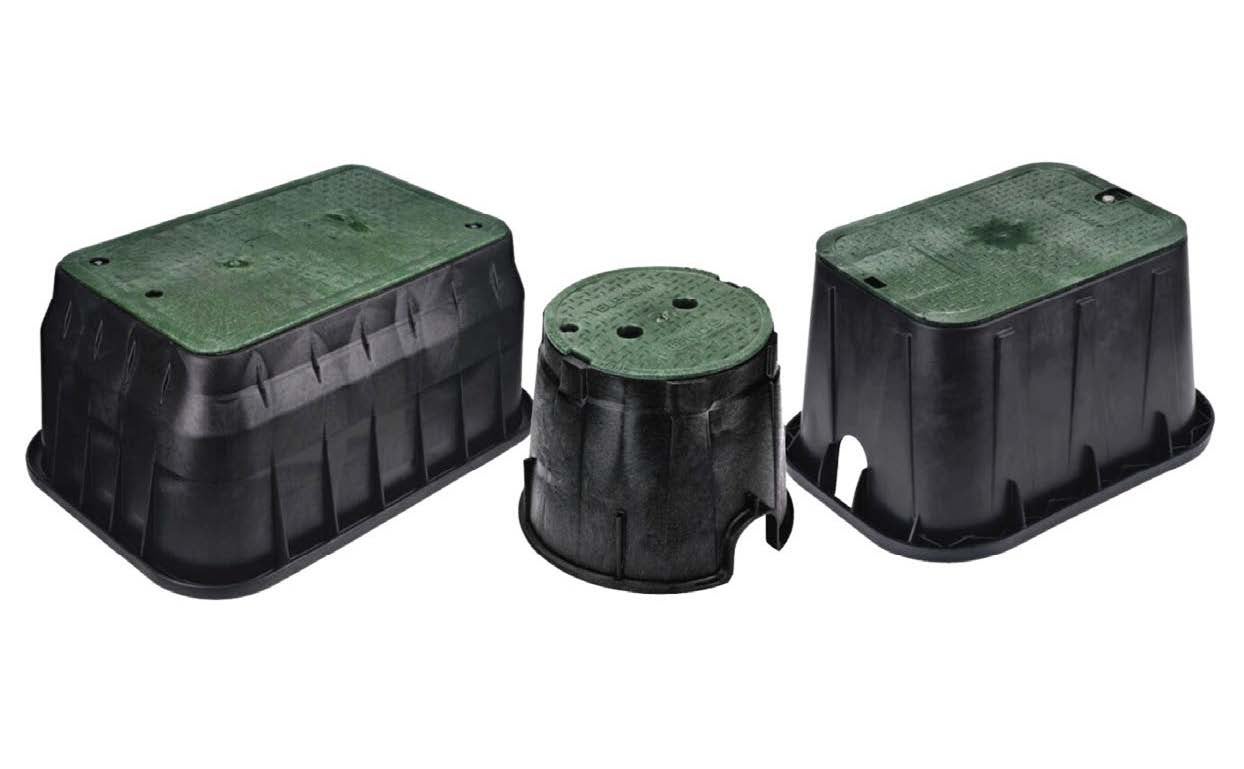

Pro-Spec Telecom Boxes

Key Features

  • Structural support ribs and reinforced box add strength
  • Secure overlapping cover blocks dirt and debris from entering
  • Molded-in, slip-resistant tread and TELECOM marking on cover
  • Load rated for pedestrian traffic and lawn care equipment
  • 3/8 in.-16 stainless steel bolts deter theft and tampering
  • Electronic marker disc (frequency 101.4 kHz) installed on select models

Applications

  • Give fiber optic cables and splices a clean and secure environment; easy access for service and maintenance

  • For use underground, the thermoplastic polymer pull boxes, handholes, and "flowerpots" are ideal for most types of FTTH installation applications

  • Use the telecom box to protect optic cables and splices and keep them out of sight

Installation & Maintenance

  • Dig to allow for enough depth so the lid is flush with the surface; connect telecom cables, equipment, wiring; use bolt(s) to secure cover.
    (NDS recommends installing cover prior to backfilling)

  • Periodically check for damage and replace as needed

Materials & Sustainability

  • Box and cover are made of high-density polyethylene (HDPE) treated with UV inhibitors

  • Made in the USA

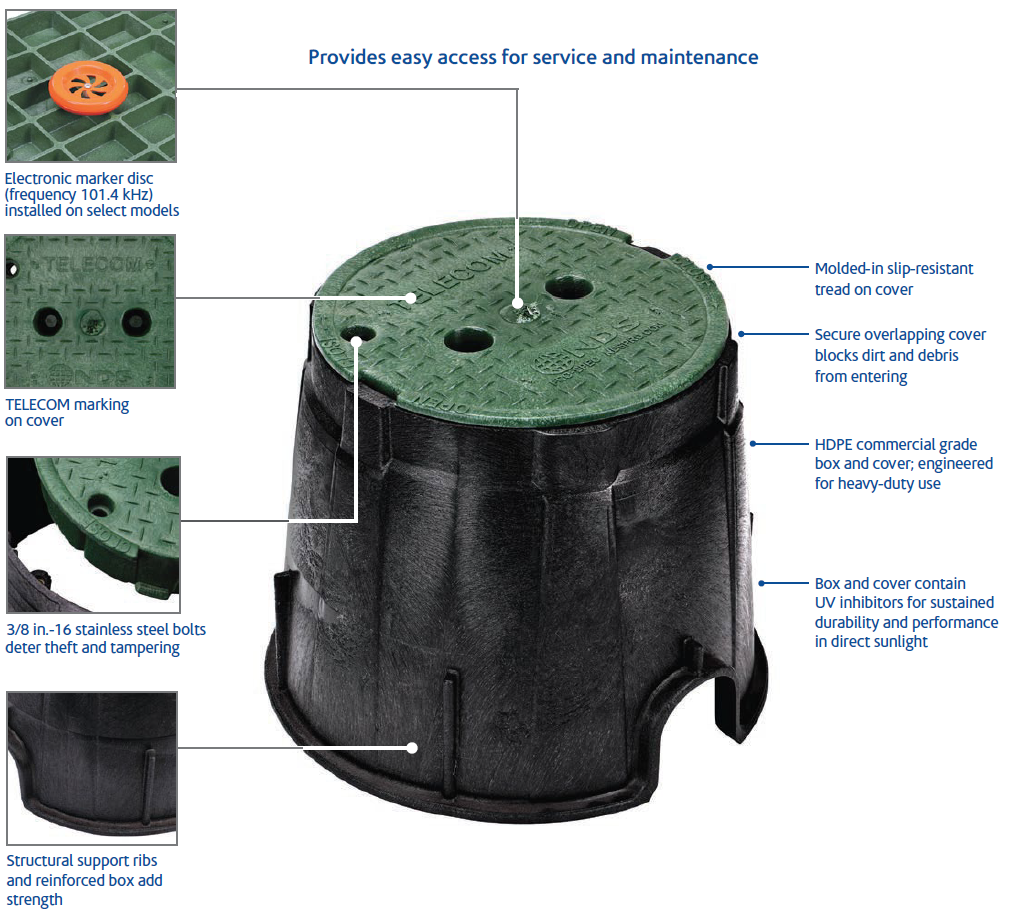

Pro-Spec Telecom Boxes diagram

Literature & Documents

Brochures & Sell Sheets



Tech Specs



Product Models

Part Number
Description
311BCBT10 in. Round Pro-Spec® Series Telecom Box and Cover, 10 in. Height, Black Box, Green Telecom Cover, Includes Bolt
311BCBT-M10 in. Round Pro-Spec® Series Telecom Box and Cover with Marker Disc, 10 in. Height, Black Box, Green Telecom Cover, Includes Bolt

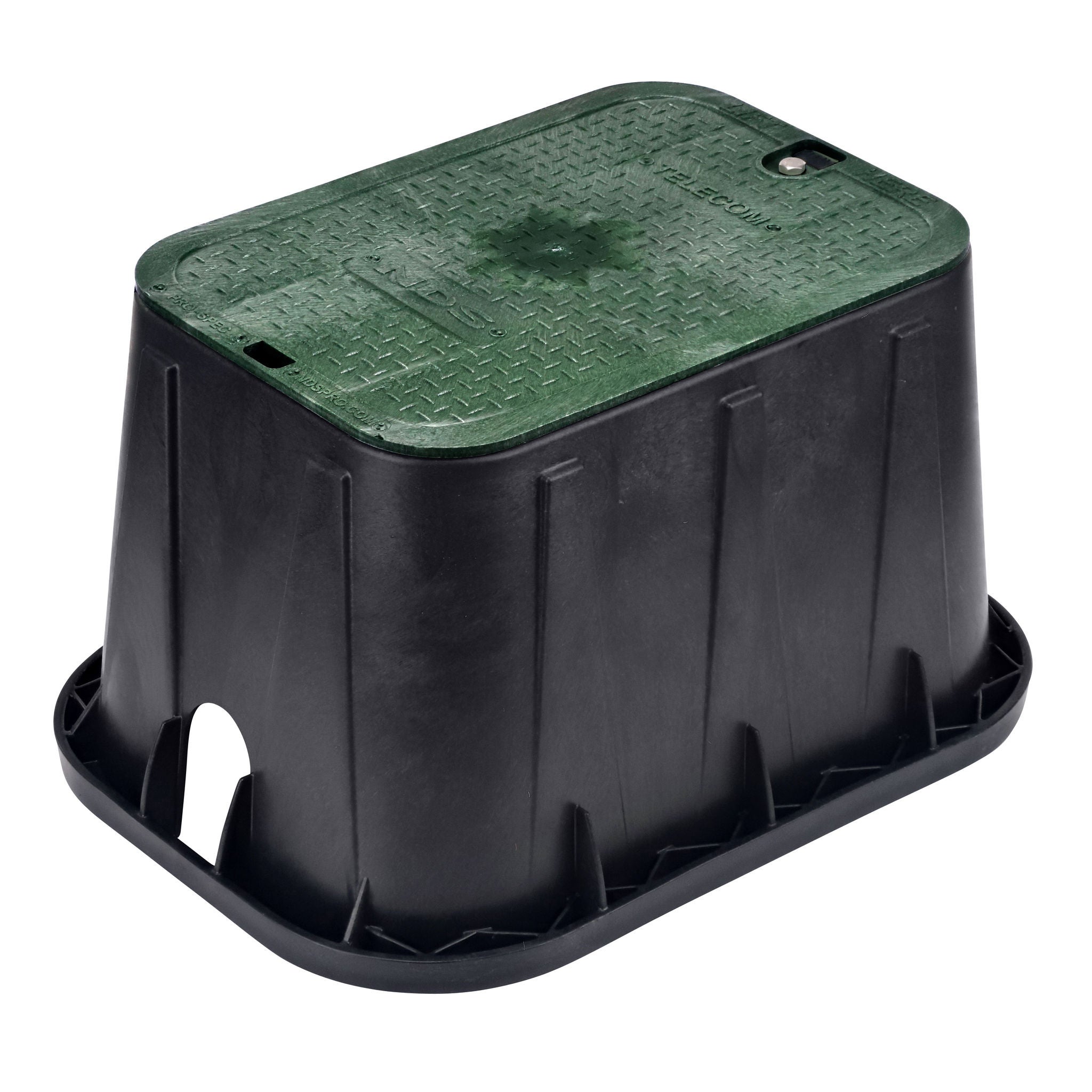

313BCBT14 in. X 19 in. Rectangular Pro-Spec® Series Telecom Box and Bolt-down Cover, 12 in. Height, Black Box, Green Telecom Cover, Includes Bolt
313BCBT-M14 in. X 19 in. Rectangular Pro-Spec® Series Telecom Box and Bolt-down Cover with Marker Disc, 12 in. Height, Black Box, Green Telecom Cover, Includes Bolt
322BCBT13 in. X 24 in. Rectangular Pro-Spec® Series Telecom Box and Cover, 15 in. Height, Green Box, Green Telecom Cover, Includes Bolt
326BCBT-BG17 in. X 30 in. X 18 in. Rectangular Pro-Spec® Series Telecom Box and Cover, 18 in. Height, Black Box, Green Telecom Cover, Includes Bolts
326BCBT-BG-M17 in. X 30 in. X 18 in. Rectangular Pro-Spec® Series Telecom Box and Cover with Marker Disc, 18 in. Height, Black Box, Green Telecom Cover, Includes Bolts
327BCBT 17 in. X 30 in. X 24 in. Rectangular Pro-Spec® Series Telecom Box and Cover, 24 in. Height, Black Box, Green Telecom Cover, Includes Bolts
