StormChamber® Accessories

StormChamber Accessories

StormChamber® accessories are used as part of installation and maintenance. They include the SedimenTrap™ capture device, non-woven filter fabric, woven stabilization fabric, 10 in. frame and lid, 30 in. X 20 in. and 24 in. X 12 in. corrugated pipe

StormChamber® Accessories

Key Features

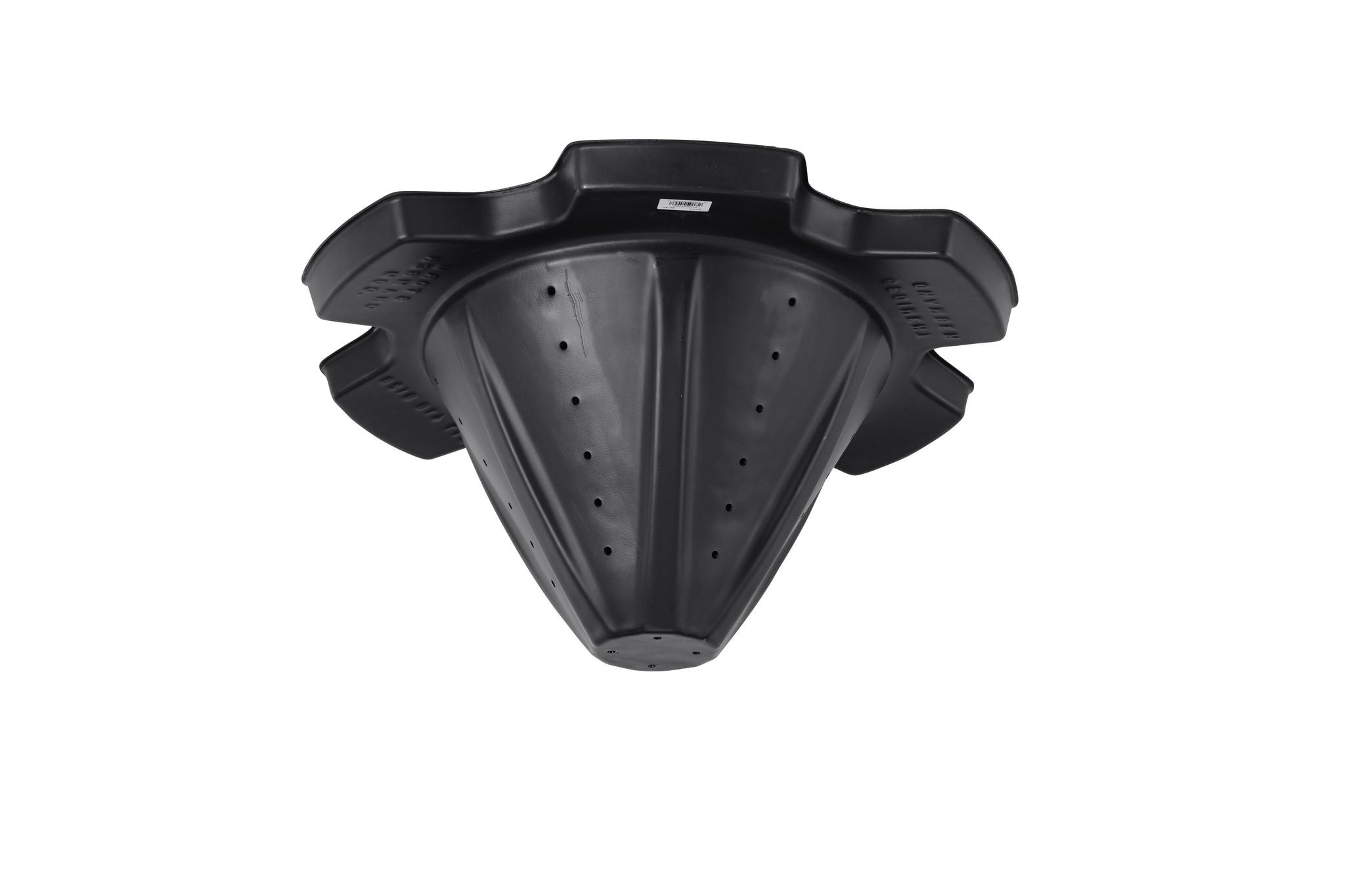

  • SedimenTrap™ capture device has a patented filtration system and intercepts debris in stormwater runoff that can potentially harm the local ecology
  • Non-woven filter fabric is used to line the trench walls and bottom, and to wrap around the inflow row of chambers
  • Woven stabilization fabric is used to stabilize the soil base for the entire inflow row of chambers as well as the adjacent overflow unit
  • The 10 in. frame and lid is used to protect the opening of the cleanout riser pipe used in StormChamber® systems
  • The 30 in. X 20 in. corrugated pipe comes connected to the SedimenTrap™ device used with the SC-34 and SC-44 StormChamber® systems
  • The 24 in. X 12 in. corrugated pipe comes connected to the SedimenTrap™ device used with the SC-18 StormChamber® system

Applications

  • The SedimenTrap™ device intercepts sediments that enter the StormChamber® system, and the corrugated pipe enables the SedimenTrap device to be installed deep underground

  • The non-woven fabric prevents sediments from entering the StormChamber® system while allowing water to drain through

  • The woven fabric creates a stable foundation for installation of the inflow row of StormChamber units and adjacent overflow unit

  • As part of a complete stormwater management system, the StormChamber® accessories are used during installation and maintenance to protect the system from debris

Installation & Maintenance

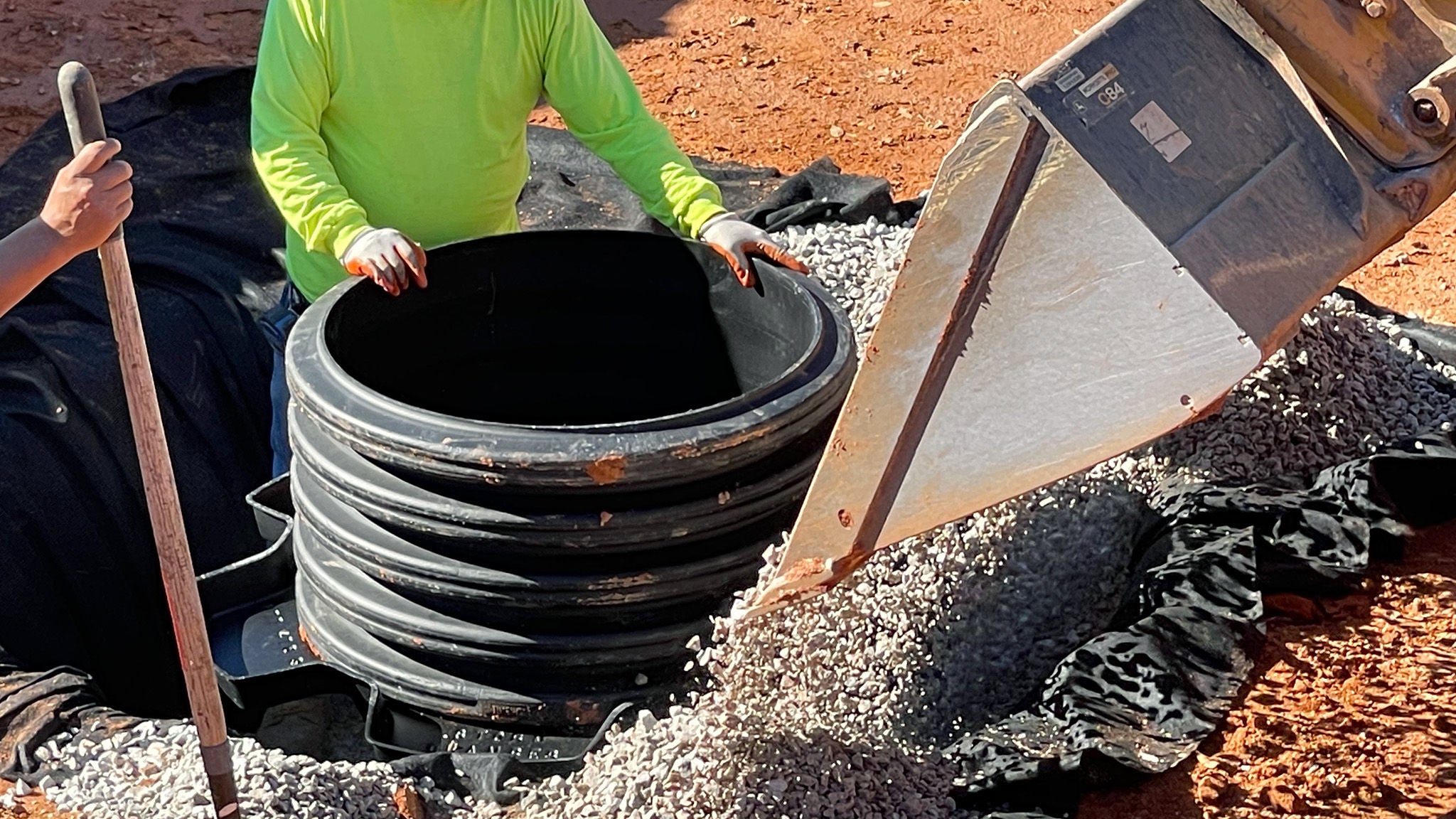

  • StormChamber® accessories are installed with the StormChamber units and work deep underground

Materials & Sustainability

  • SedimenTrap® device is made of high-density polyethylene (HDPE)
  • Non-woven filter fabric is made of high-tenacity polypropylene
  • Woven filter fabric is made of polypropylene
  • 10 in. frame and lid are made of cast iron
  • Corrugated pipe is made of high-density polyethylene (HDPE)
  • StormChamber® accessories are made in the USA

Product Models

Part Number
Description
SC-STSedimenTrap™ Sediment Capture Device for StormChamber® Systems, Black
SC-NWFF-500Non-woven Filter Fabric, 500 sq. ft., Black
SC-WFF-75Woven Stabilization Fabric, 562.25 sq. ft., Black
SC-FL-1010 in. Frame and Lid for StormChamber® Systems
SC-3020PHDPE Corrugated Pipe, 30 in. X 20 in., Black
SC-2412PHDPE Corrugated Pipe, 24 in. X 12 in., Black

Literature & Resources

Download

NDS StormChamber® Systems Chamber Installation Instructions

application/pdf | 500 KB
Download

NDS StormChamber® Systems Chamber Bearing Capacity Guide

application/pdf | 163 KB
Download

NDS StormChamber® Systems Design Calculator

application/vnd.openxmlformats-officedocument.spreadsheetml.sheet | 513 KB
Download

Commercial Stormwater Product Solutions Brochure

application/pdf | 8 MB

Frequently Asked Questions

The NDS DesignWorx Team is available at every step of the design process. Let us take out the guesswork and show you how NDS products can help meet your project's specifications, reduce costs, or save time.  Visit https://www.ndspro.com/submityourdesign

Unlike a manifold pipe system, sediment will be deposited only in row(s) that receive inflow, and mainly in the StormChamber SedimenTraps. Inflow row(s) will have a SedimenTrap in the first and last chamber of the row into which sediment accumulation can be monitored and vacuumed out through the 10 in. riser pipe directly above each SedimenTrap.

After opening the inspection/maintenance manhole cover, use a high-power flashlight or measuring stick to inspect the SedimenTraps. If the sediment is overflowing out of the SedimenTrap and into the chamber, it is ready for maintenance.

Unlike other competing systems, NDS StormChamber systems do not require a camera to inspect the entire length of the sediment row for buildup. We also do not require that the row be flushed, so no water jetting is required. The StormChamber system only takes minutes to inspect/maintain by simply opening a manhole cover and checking for buildup. Once it is determined that maintenance is required, only a simple vacuum truck is required.

NDS StormChamber systems do not require an external manifold system. We rely on our internal side portal connections using a 10 in. PVC pipe to connect the rows. This allows water to travel laterally between chamber rows. It also works as an emergency spillway for long lasting high intensity storm events. Eliminating the manifold leads to a smaller footprint, less excavation, stone, and material cost which allows NDS StormChamber systems to have a lower installed cost than competing systems.

A manifold system may be used if specified by the engineer; a manhole with weir would also be required to direct the inflow to the SedimenTrap row.

Yes. NDS StormChamber systems have successfully tested and are in compliance with ASTM F2787 standard for plastic storm water chambers.

The spacing between the rows of chambers should only be measured from the centerline of one chamber to the adjacent chamber instead of measuring the distance between rows.

Chamber Model

SC-18

SC-34 & SC-34W

SC-44

Chamber Width

38 in. (965mm)

60 in. (1524mm)

77 in. (1955mm)

Separation

6 in. (150mm)

9 in. (225mm)

9 in. (225mm)

Centerline to Centerline

44 in. (1117mm)

69 in. (1752mm)

86 in. (2184mm)

Only ¾ in. to 2 in. crushed washed angular stone or concrete may be used. Under no circumstances should round stone be used.

Either stone or soil can be used as fill above an NDS StormChamber system.

Refer to the following table for the diameter sizes each chamber can accept.



SC-18

SC-34

SC-44

End wall

15 in.

30 in.

36 in.

Top portal

10 in.

10 in.

10 in.

Side portal

8 in.

10 in.

10 in.



No. The NDS StormChamber product line has been available since 1998 and has been trusted on hundreds of projects.
