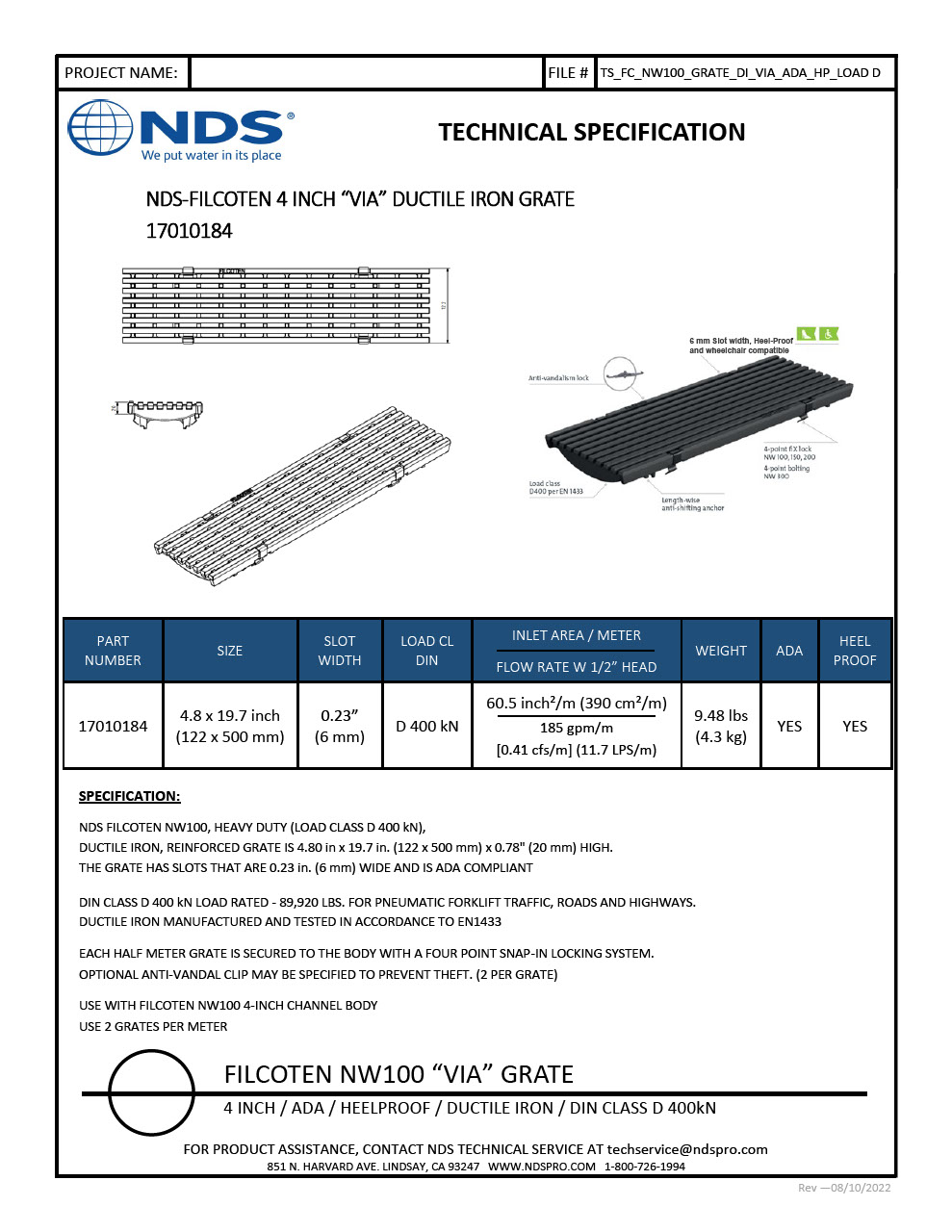

BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron

SKU:

17010184

The clean look of the Via slot design decorative drain grate adds aesthetic appeal to the drainage system. The streamlined design drains water away while preventing leaves and debris from entering and potentially clogging drain pipes. This drain cover has an open surface area of 60.5 sq. in. per meter and 185 GPM flow rate. The grate has an NDS Class D load rating when properly installed, and is ADA compliant and heel proof. Use two of these half-meter (19.69 in.) grates to cover one BG-FILCOTEN 100 4 in. trench drain. Made of iron, the grate is painted black to inhibit rust, and over time it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system
