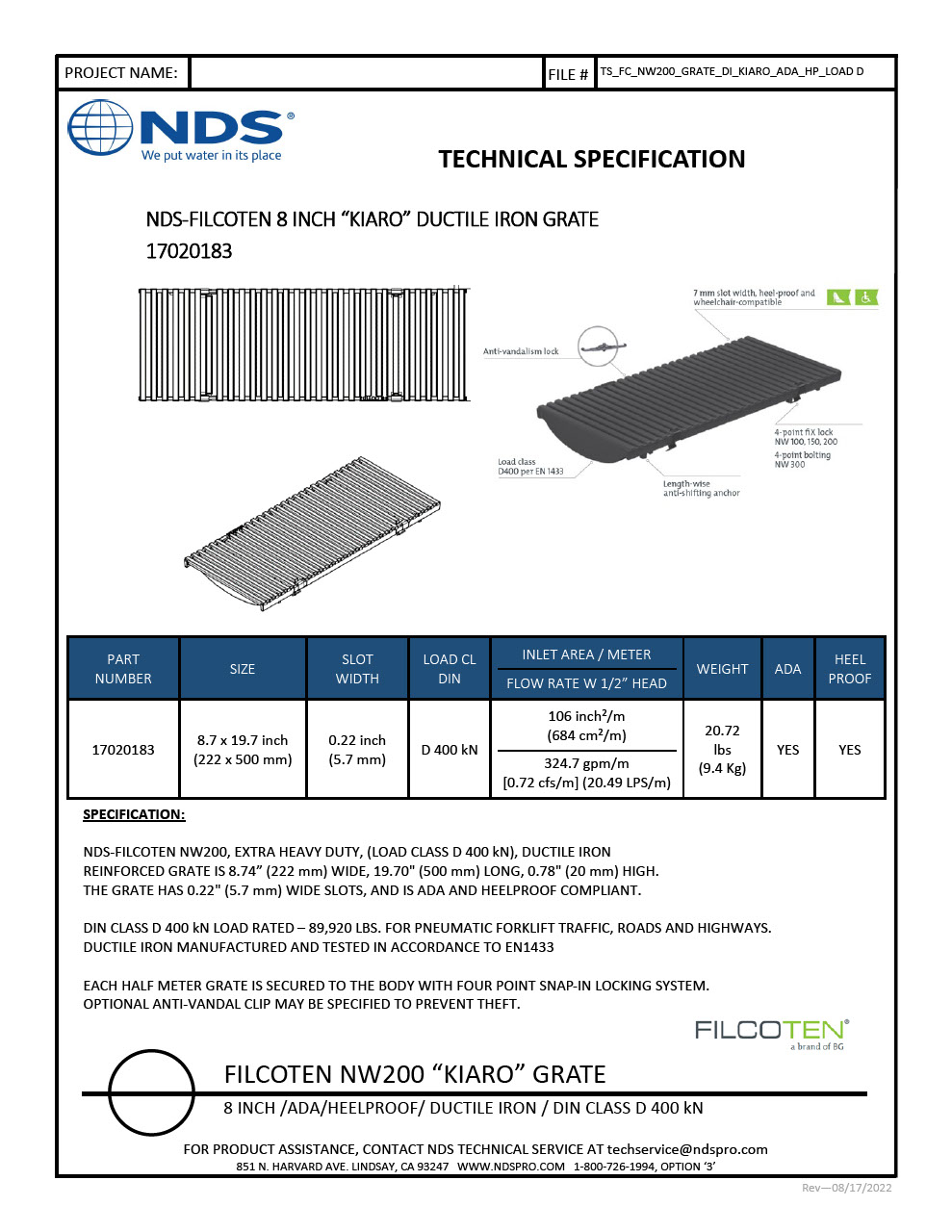

BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron

SKU:

17020183

Elevate the look of the trench drain with the stylish Kiaro slot design drain grate. Grate design features linear openings with solid bars to block leaves and debris. The drain cover has an open surface area of 106.0 sq. in. per meter and 324.7 GPM flow rate. Rated for NDS Class D loads when properly installed. Grate is ADA compliant and heel proof. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 200 8 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 8.74 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 200 channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system

Literature & Resources

NDS Drainage Product Catalog 2024-2025

Catalogue

NDS Drainage Product Catalog 2024-2025

Guía de diseño y instalación de drenaje

Reference (NDS)

Guía de diseño y instalación de drenaje

NDS BG-FILCOTEN® Trench Drains & Grates Written Spec

CSI Specifications

NDS BG-FILCOTEN® Trench Drains & Grates Written Spec
