By NORMA Group

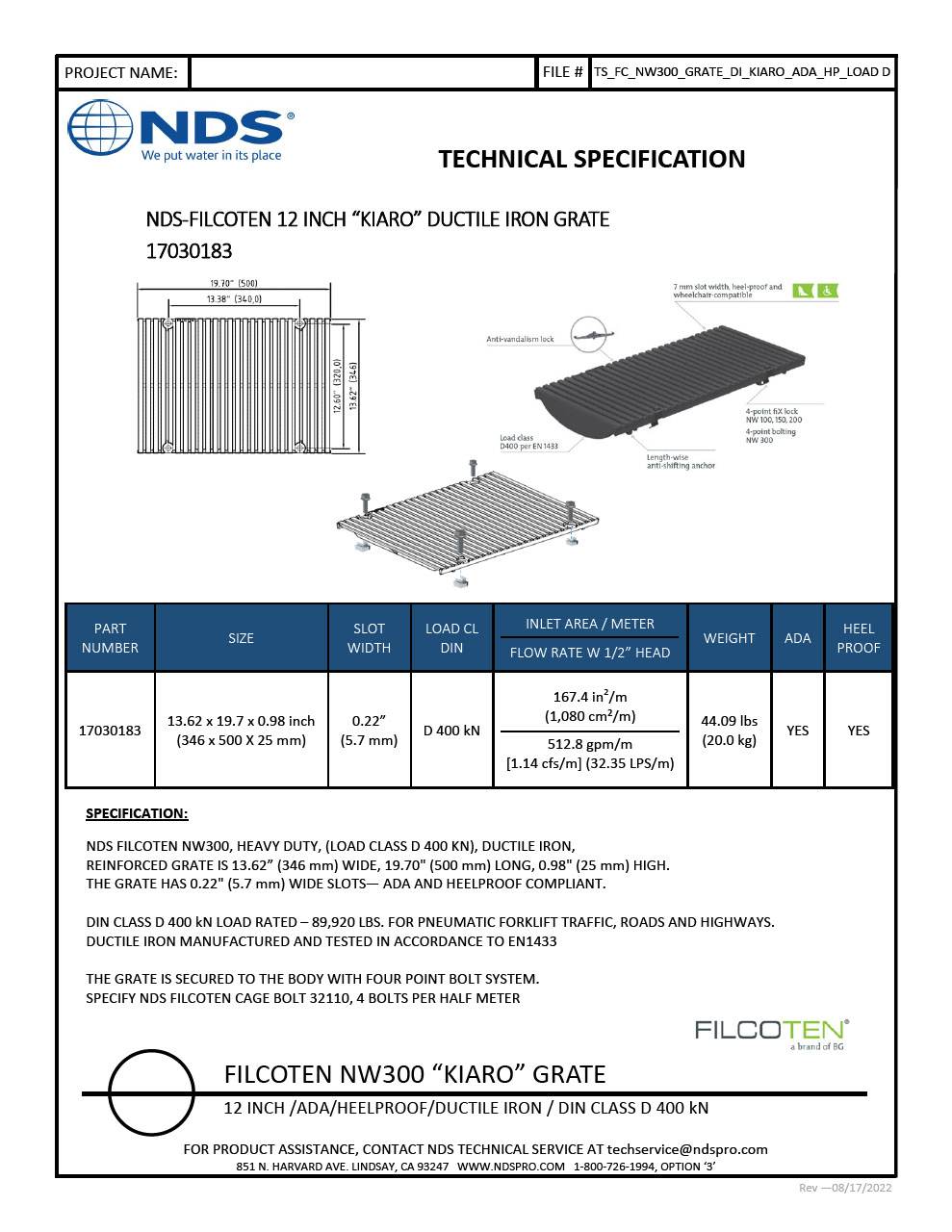

BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron

SKU:

17030183

The stylish Kiaro drain grate has a timeless look that complements any surrounding. This decorative grate showcases linear openings with solid bars to help prevent leaves and debris from entering the drainage system. Rated for NDS Class D loads when properly installed. The ductile iron drain cover has an open surface area of 167.4 sq. in. per meter and flow rate of 512.8 GPM per meter. Grate is both ADA compliant and heel proof. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 300 12 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 13.66 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 300 channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system
