Dura Slope® Channel Drain Frame, 6-3/8 in. Wide X 2 ft. Long, Ductile Iron

SKU:

DS-200H
The Dura Slope Channel Drain Frame (NDS DS-200H) adds support to the system and allows for heavier traffic
Two Dura Slope Channel Drain Frames (NDS DS-200H) installed on a NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with female end facing camera
Two Cast Iron Dura Slope™ Channel Drain Grates installed on two Dura Slope™ Channel Drain Frames (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091) with the Dura Slope Spanner Screw Heads (NDS DS-650) with female end facing camera
Two Dura Slope Channel Drain Frames (NDS DS-200H) installed on a NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with male end facing camera
Two Cast Iron Dura Slope™ Channel Drain Grates installed on two Dura Slope™ Channel Drain Frames (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091) with the Dura Slope Spanner Head Screws (NDS DS-650) with male end facing camera
Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installed on a Dura Slope™ Channel Drain Frame (NDS DS-200H) on the NDS Dura Slope Inline Basin (NDS DS-340) with plug installed on back side
The Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with pipe holes open
Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) and the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with the plug secured
The Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with the plug secured
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with female end facing camera
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) with the Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231); female end facing camera
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) and the #6 X 3/4 in. Phillips Pan Head Screw (NDS DS-123); male end facing camera
Closeup of the Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installed on the Dura Slope™ Channel Drain Frame (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091); with male end facing camera
Closeup of the anchors on the Dura Slope™ Channel Drain Frame (NDS DS-200H)
Closeup of how the Dura Slope™ Channel Drain Frame (NDS DS-200H) with Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installs on mulitiple NDS Dura Slope Channel Drains (NDS DS-091)
Install the Dura Slope™ Channel Drain Frame (NDS DS-200H) with the Dura Slope Phillips Pan Head Screws (NDS DS-123) first on the NDS Dura Slope Channel Drain (NDS DS-091), then add the Cast Iron Dura Slope Channel Drain Grate (NDS DS-231) with the Dura Slope Spanner Head Screws (NDS DS-650)
Continue to install the Dura Slope™ Channel Drain Frame (NDS DS-200H) with the Dura Slope Phillips Pan Head Screws (NDS DS-123) first on the NDS Dura Slope Channel Drain (NDS DS-091), then add the Cast Iron Dura Slope Channel Drain Grate (NDS DS-231) with the Dura Slope Spanner Head Screws (NDS DS-650) to secure the channel drain system
Completely installed multiple Dura Slope™ Channel Drain Frames (NDS DS-200H) with Cast Iron Dura Slope™ Channel Drain Grates (NDS DS-231) installed on mulitiple NDS Dura Slope Channel Drains (NDS DS-091)
The Dura Slope Channel Drain Frame (NDS DS-200H) adds support to the system and allows for heavier traffic
Two Dura Slope Channel Drain Frames (NDS DS-200H) installed on a NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with female end facing camera
Two Cast Iron Dura Slope™ Channel Drain Grates installed on two Dura Slope™ Channel Drain Frames (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091) with the Dura Slope Spanner Screw Heads (NDS DS-650) with female end facing camera
Two Dura Slope Channel Drain Frames (NDS DS-200H) installed on a NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with male end facing camera
Two Cast Iron Dura Slope™ Channel Drain Grates installed on two Dura Slope™ Channel Drain Frames (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091) with the Dura Slope Spanner Head Screws (NDS DS-650) with male end facing camera
Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installed on a Dura Slope™ Channel Drain Frame (NDS DS-200H) on the NDS Dura Slope Inline Basin (NDS DS-340) with plug installed on back side
The Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with pipe holes open
Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) and the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with the plug secured
The Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Inline Basin (NDS DS-340) with the plug secured
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) with the #6 X 3/4 in. Phillips Pan Head Screws (NDS DS-123) with female end facing camera
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) with the Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231); female end facing camera
Closeup of the Dura Slope™ Channel Drain Frame (NDS DS-200H) installed on the NDS Dura Slope Channel Drain (NDS DS-091) and the #6 X 3/4 in. Phillips Pan Head Screw (NDS DS-123); male end facing camera
Closeup of the Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installed on the Dura Slope™ Channel Drain Frame (NDS DS-200H) on a NDS Dura Slope Channel Drain (NDS DS-091); with male end facing camera
Closeup of the anchors on the Dura Slope™ Channel Drain Frame (NDS DS-200H)
Closeup of how the Dura Slope™ Channel Drain Frame (NDS DS-200H) with Cast Iron Dura Slope™ Channel Drain Grate (NDS DS-231) installs on mulitiple NDS Dura Slope Channel Drains (NDS DS-091)
Install the Dura Slope™ Channel Drain Frame (NDS DS-200H) with the Dura Slope Phillips Pan Head Screws (NDS DS-123) first on the NDS Dura Slope Channel Drain (NDS DS-091), then add the Cast Iron Dura Slope Channel Drain Grate (NDS DS-231) with the Dura Slope Spanner Head Screws (NDS DS-650)
Continue to install the Dura Slope™ Channel Drain Frame (NDS DS-200H) with the Dura Slope Phillips Pan Head Screws (NDS DS-123) first on the NDS Dura Slope Channel Drain (NDS DS-091), then add the Cast Iron Dura Slope Channel Drain Grate (NDS DS-231) with the Dura Slope Spanner Head Screws (NDS DS-650) to secure the channel drain system
Completely installed multiple Dura Slope™ Channel Drain Frames (NDS DS-200H) with Cast Iron Dura Slope™ Channel Drain Grates (NDS DS-231) installed on mulitiple NDS Dura Slope Channel Drains (NDS DS-091)

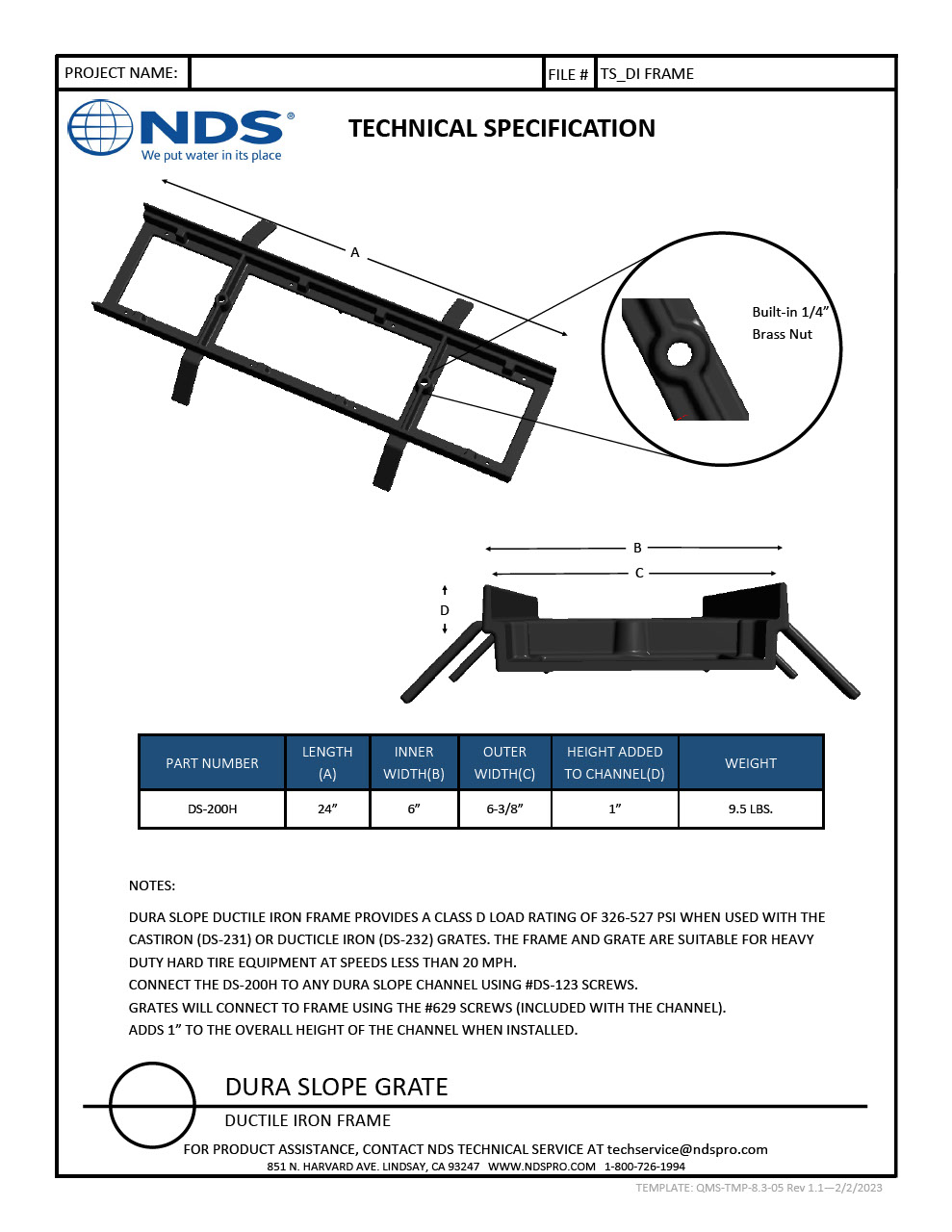

Add support to the Dura Slope® Channel Drain system to handle heavier traffic loads by installing the ductile iron Dura Slope Channel Drain Frame. The rugged frame sits on top of the channel drain and accommodates the standard iron or decorative iron drain grate on top. Provides NDS Class D load rating (up to 575 PSI) when installed properly; recommended for use with pneumatic tire traffic such as fork lifts and other heavy-duty hard tire equipment at speeds less than 20 mph; H-20 rated. The iron frame is painted black to inhibit rust and will form a protective iron-oxide patina over time

Where to Buy Find a Contractor
Applications
  • Add support to the Dura Slope™ Channel Drain system to handle heavier traffic loads
  • Recommended in areas with heavier traffic loads and pneumatic tire traffic such as fork lifts
  • Provides additional support to the Dura Slope channel drain
Features
  • Strong, sturdy design and material
  • Recommended for use with pneumatic tire traffic such as fork lifts
  • Provides NDS Class D load rating (up to 575 PSI)
