By NORMA Group

Pop-Up Drainage Emitter with Elbow and Adapter for 6 in. Drain Pipes, Spring Loaded, Green Plastic

SKU:

624

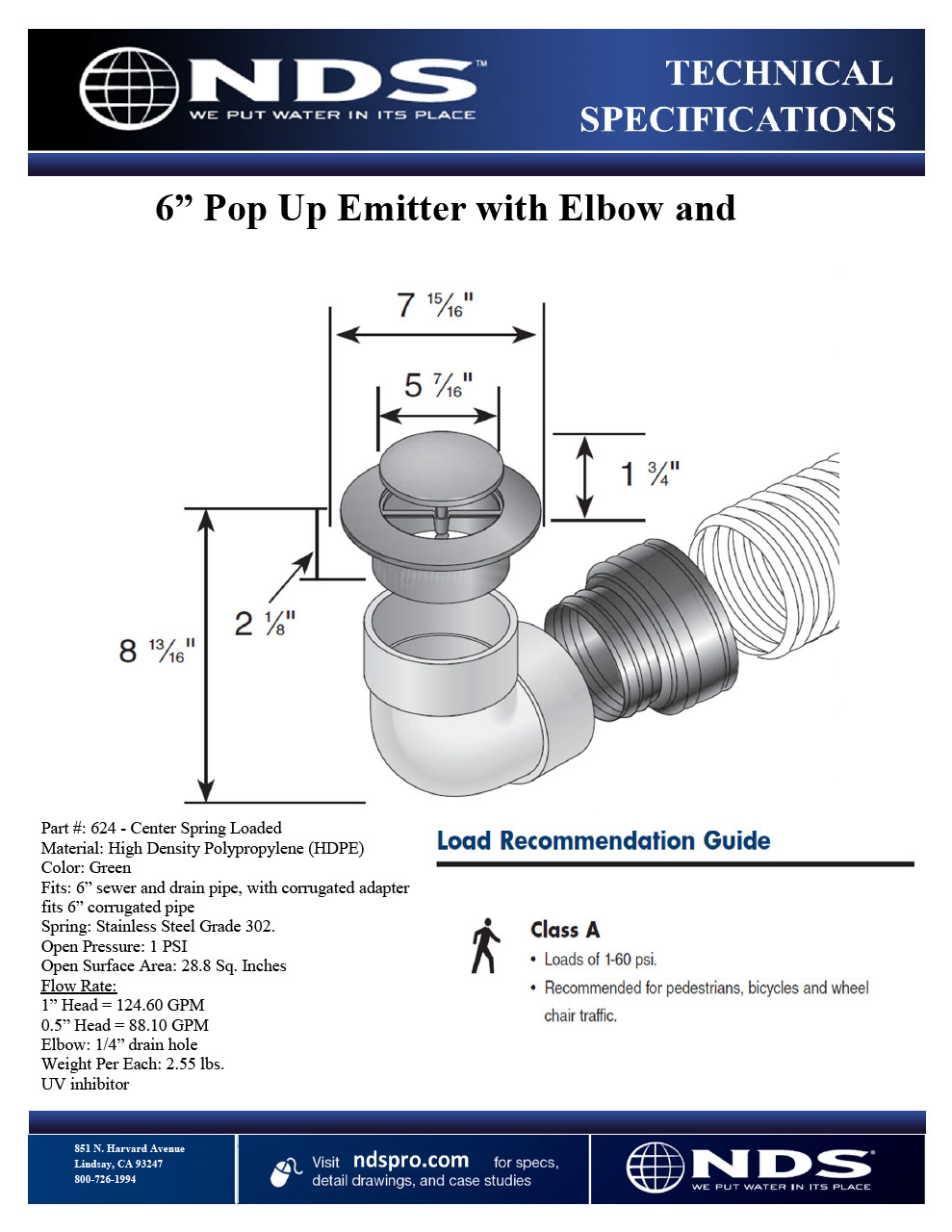

Release excess water with the Pop-Up Drainage Emitter with Elbow and Adapter for 6 in. Single-Wall Corrugated Pipe (NDS 624)

The NDS Pop-Up Drainage Emitter with Elbow and Adapter lays flat when closed (NDS 624)

The NDS Pop-Up Drainage Emitter first attaches to the elbow (NDS 624, NDS 620) before attaching to an adapter and pipe

The NDS Pop-Up Drainage Emitter comes with and Adapter that connects to 6 in. pipe (NDS 624)

Essential to every drainage system is a point of release to prevent back-up issues. Use the Pop-Up Drainage Emitter to safely discharge collected water away from structures, erosion-prone landscapes, and poor drainage areas. The Pop-Up Drainage Emitter with Elbow and Adapter connects to 6 in. drain pipes. When water pressure builds, the cover “pops up” as high as 1 in. to release water at up to 88 GPM. Cover closes automatically once the flow diminishes. Cover is made of polyethylene and the elbow is made of polyvinyl chloride.

Where to Buy Find a Contractor

Applications

Provides a downstream point of release for water collected upstream

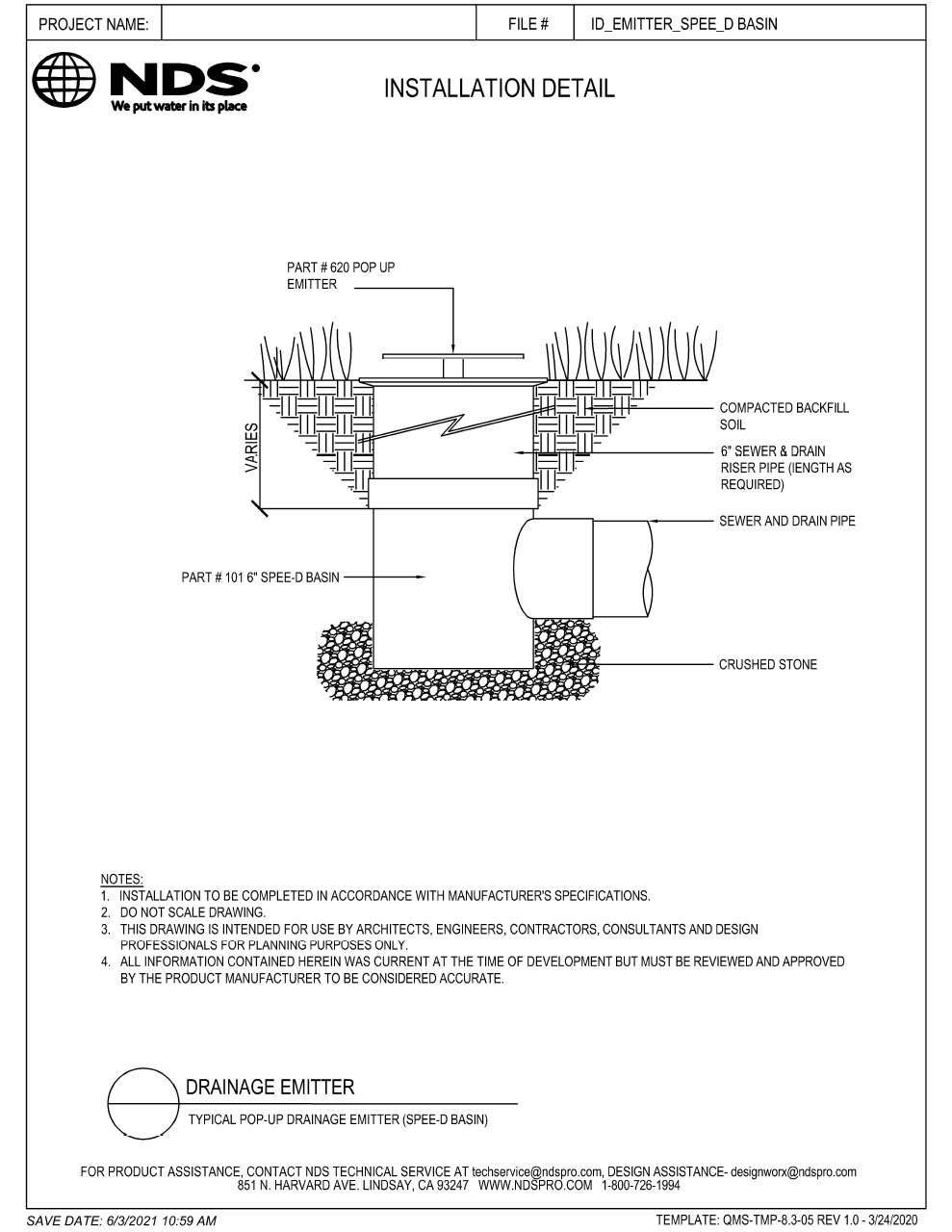

Install the Pop-Up Drainage Emitter at the lowest point in the drainage system; place in areas away from buildings, landscapes, and poor drainage areas
Works with a complete drainage system to release collected stormwater runoff and standing water to a discharge point before it causes costly property damage

Features

Spring-loaded cap on cover pops up as high as 1 in. once water pressure builds; automatically retracts when flow diminishes
Outside flange prevents grass from growing over the cover
Small weep hole in elbow drains out any water in the pipe to prevent stagnation or freezing in cold weather
