By NORMA Group

4 in. Atrium Grate, Connects to 4 in. Drain Pipes and Fittings, Brass

SKU:

78B

When stormwater engulfs mulched areas and needs draining, it’s the atrium drain grate rather than the flat drain grate that’s fit for the job. The 4 in. Brass Atrium Drain Grate has a domed design that rises above the surface of the ground to block leaves, mulch, and other debris near the base of the grate while letting water drain in from above. Has an open surface area of 10.2 sq. in. and flow rate of 31 GPM. Put it to work in mulched landscape beds, natural areas, and window wells to drain moderate flows. The 4 in. Atrium Grate fits 4 in. sewer and drain pipe & fittings for a soil-tight fit. Made of weather-resistant brass.

Where to Buy Find a Contractor

Applications

Protect your drainage system by using a drain grate, also known as a drain cover, on top of drain pipe or fitting to block debris from entering and potentially clogging the pipeline as water flows through
Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells
Works with connected drain pipe to capture and convey excess surface water for proper release downstream

Features

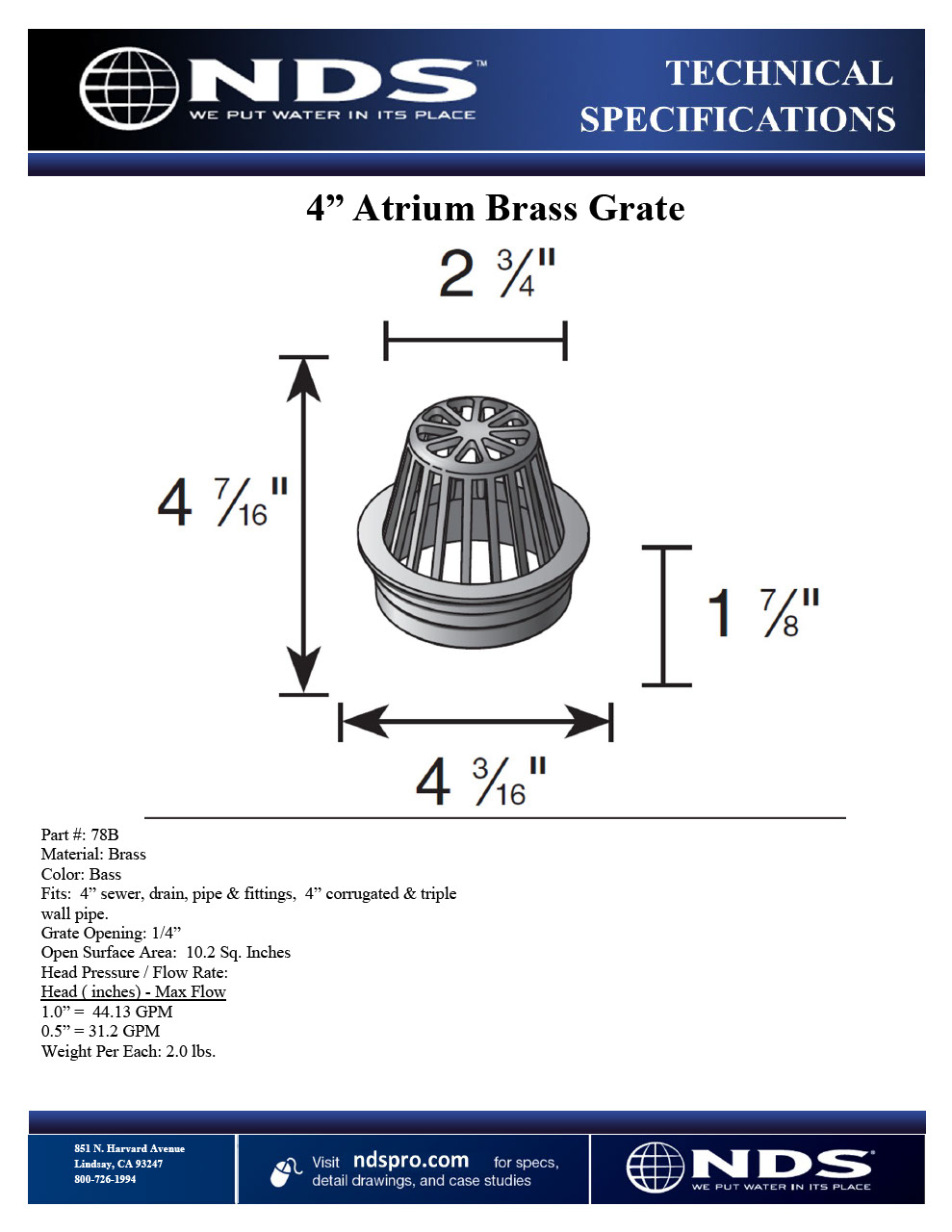

Grate is 4-7/16 in. high; top is 2-3/4 in. wide in diameter; grate openings are ¼ in. wide
4 in. Atrium Drain Grates are available in a variety of colors and materials
