Pressure-regulating Y Filter, 3/4 in. MPT X 3/4 in. MPT, 0.2 - 5 GPM Flow Range, 30 PSI, 200 Mesh

SKU:

PRYF 30
Pressure-Regulating "Y" Filter lowers water pressure and filters out particulates (NDS PRYF 30; Raindrip LPRYF 30)
Pressure-Regulating "Y" Filter blocks particulates and has a removable 200-mesh filter (NDS PRYF 30; Raindrip LPRYF 30)
Pressure-Regulating "Y" Filter has a removable 200-mesh filter that captures particles in water (NDS PRYF 30; Raindrip LPRYF 30)
Pressure-Regulating "Y" Filter lowers water pressure and filters out particulates (NDS PRYF 30; Raindrip LPRYF 30)
Pressure-Regulating "Y" Filter blocks particulates and has a removable 200-mesh filter (NDS PRYF 30; Raindrip LPRYF 30)
Pressure-Regulating "Y" Filter has a removable 200-mesh filter that captures particles in water (NDS PRYF 30; Raindrip LPRYF 30)

Reduce the amount of pressure from the water source and filter out particulates that can clog and damage emitters with the all-in-one pressure-regulating Y filter. This device is preset at 30 PSI and has a flow range from 0.2 to 5 GPM. The 200-mesh filter blocks particles and is removable for cleaning. The 3/4 in. MPT X 3/4 in. MPT device connects to pipe commonly used in underground valve systems. The pressure-regulating Y filter is made of ABS; filter screen is made of stainless steel.

Where to Buy Find a Contractor
Applications
  • Lowers incoming water pressure from a water source and filters out particulates for optimal performance of your drip system
  • Connects to a water supply line with a 3/4 in. FPT connection point
  • Drip irrigation systems work with low water pressure, and the pressure-regulating filter lowers the water pressure from a water source while preventing particulates from clogging and potentially damaging emitters
Features
  • Regulates water pressure from water source; preset at 30 PSI, ideal for most drip irrigation systems
  • 200-mesh stainless steel filter screen blocks particles in the water from clogging emitters; filter is removable for cleaning and maintenance
  • Filter can be flushed out by removing the flush cap and running water through; also can be removed from the middle housing to clean

Literature & Resources

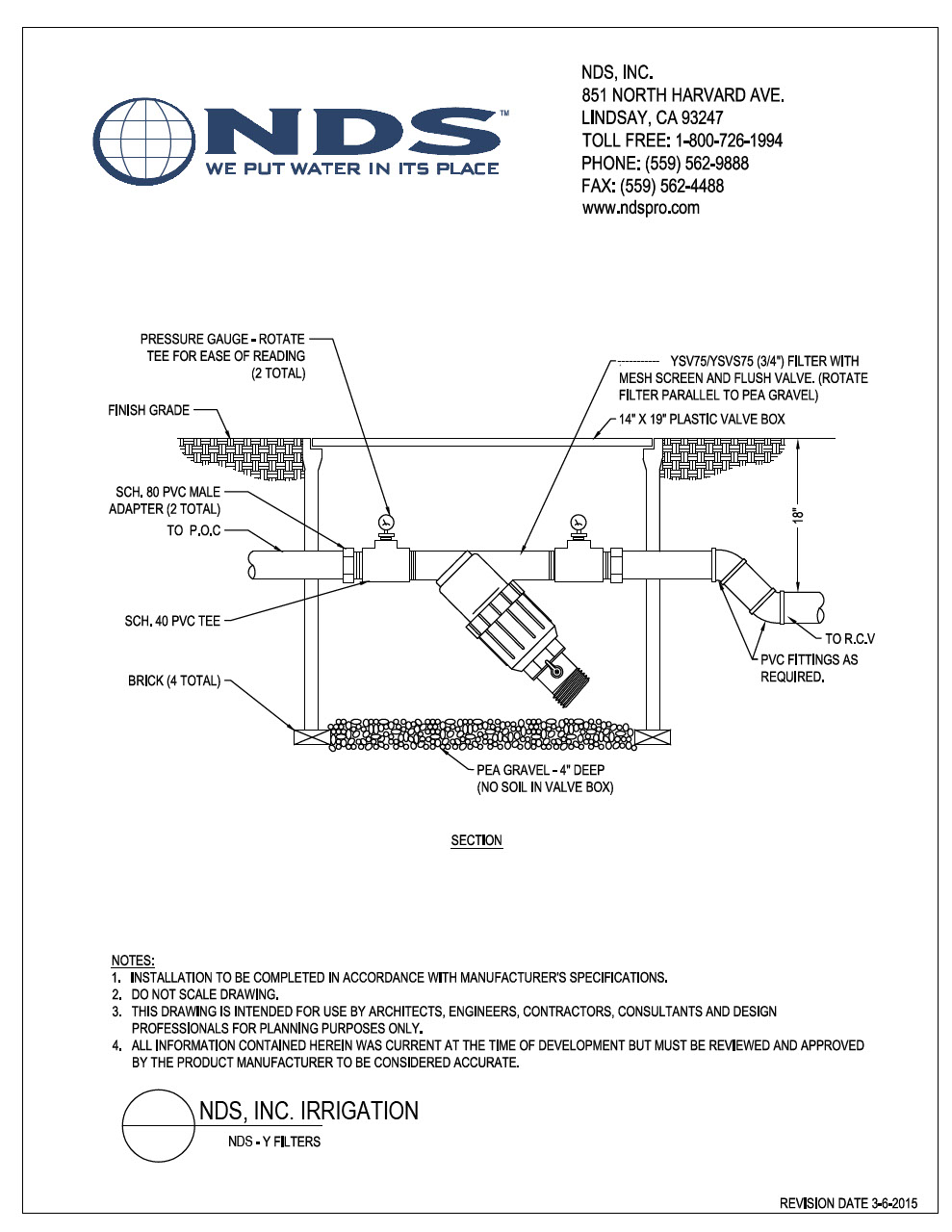

NDS Pressure Regulating Y Filters Installation Detail
Installation Detail

NDS Pressure Regulating Y Filters Installation Detail

.pdf
