BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron

SKU:

17020105

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain

Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

Top Down of entire design of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Angled view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Closeup view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips

Underside view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing support legs

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain

Top down closeup view of class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

The class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

Top Down of entire design of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Angled view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105)

Closeup view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) installed on the Filcoten 200 Trench Drain with female end showing

Closeup view of the end on the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing clips

Underside view of the class E load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020105) showing support legs

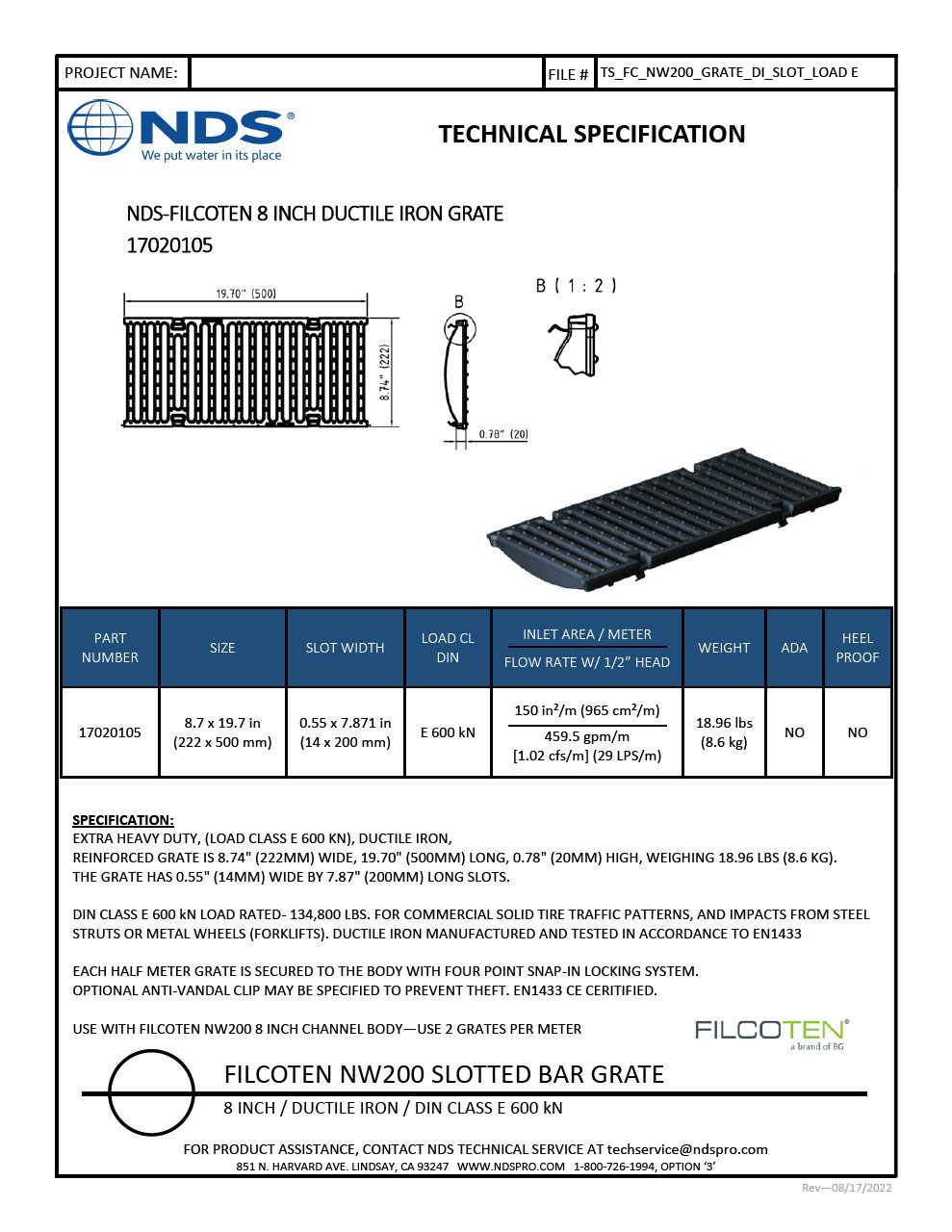

Protect the drainage system from clogging with the heavy-duty trench drain grate. This drain cover with bar design is made of ductile iron and rated for NDS Class E loads when properly installed. This grate boasts an open surface area of 150.0 sq. in. per meter and flow rate of 459.5 GPM. Use two half-meter (19.69 in.) grates to cover one BG-FILCOTEN 200 8 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 8.74 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 200 channels
Rated for NDS Class E loads, handles up to 134,800 lbs.
Grate is secured to channel body with four-point snap-in locking system
