By NORMA Group

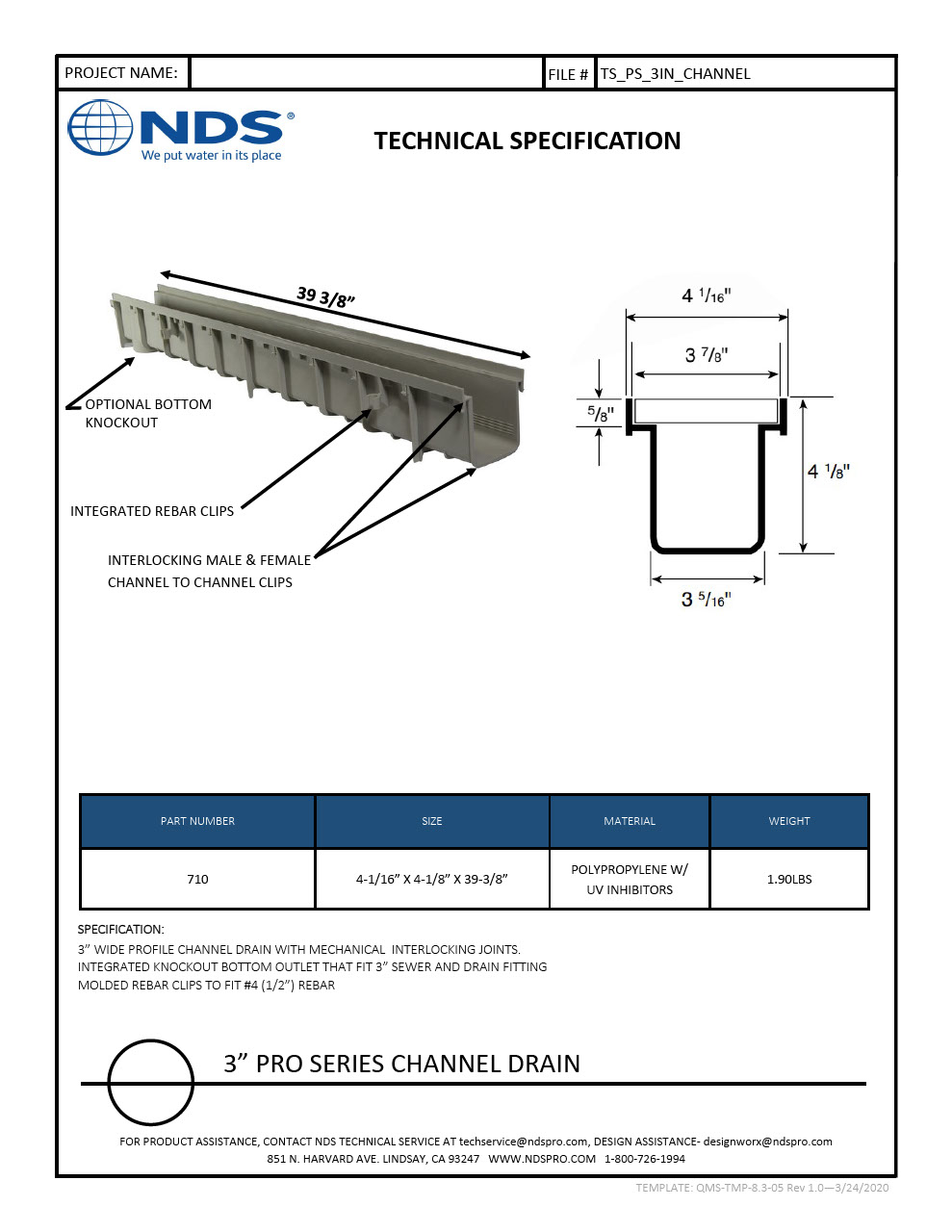

3 in. Pro Series™ Channel Drain, 4-1/16 in. wide X 39-3/8 in. long

SKU:

710

NDS 3 in. Pro Series Channel Drain (NDS 710)

On the bottom of the NDS 3 in. Pro Series Channel Drain you'll find the sturdy side ribs, stabilizing ribs, and built-in saw guide (NDS 710, NDS 764)

Bottom view of NDS 5 in. Pro Series Channel Drain featuring side ribs, stabilizing ribs, and built-in saw guide (NDS 864G*, NDS M864G, NDS 864GMTLRTL, NDS 864, NDS 800)

NDS 3 in. Pro Series Channel Drain grate is placed on the grate seat in the channel drain (NDS 714)

Closeup view of the NDS 3 in. Pro Series Channel Drain showing opening and inside features (NDS 710)

NDS 3 in. Pro Series End Cap/End Outlet (NDS 713) attaches to end of 3 in. Pro Series Channel Drain with Grate and can be used to seal end or knocked out to outlet (NDS 764, NDS 710, NDS 714)

NDS 3 in. Pro Series Channel Drain features sturdy Side Ribs, Stabilizing Ribs, and built-in Saw Guide (NDS 764, NDS 710)

NDS 3 in. Pro Series Channel Drain features a built-in bottom outlet to connect to 3 in. Sewer and Drain Fitting (NDS 710, 764)

When rainfall floods your hardscape and the excess surface water lingers, here’s how to solve the drainage problem. Use the 3 in. Pro Series™ Channel Drain with integrated bottom outlet to capture moderate water flows from driveways, concrete and paver patios, courtyards, and walkways, and direct the water to drain pipe. The 3 in. Pro Series Channel Drain features interlocking joints for easy connections—no couplings required. Channels can be cut to 4 in. sections as short as 4 in., and join together for longer runs. Bottom outlet connects to 3 in. sewer and drain fittings.

Where to Buy Find a Contractor

Applications

Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
3 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and directs it to drain pipes for proper release downstream
Works with 3 in. Pro Series Channel Drain components

Features

3 in. Pro Series Channel Drain is 4-1/8 in. deep; features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required; easy to cut to size in 4 in. increments using saw guide
Channel section includes a built-in bottom knock-out outlet which connects to 3 in. sewer and drain fittings
Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier
