SedimenTrap™ Sediment Capture Device for StormChamber® Systems, Black

SKU:

SC-ST
Applications
  • Patented filtration system intercepts sediments that enter the StormChamber® stormwater management system

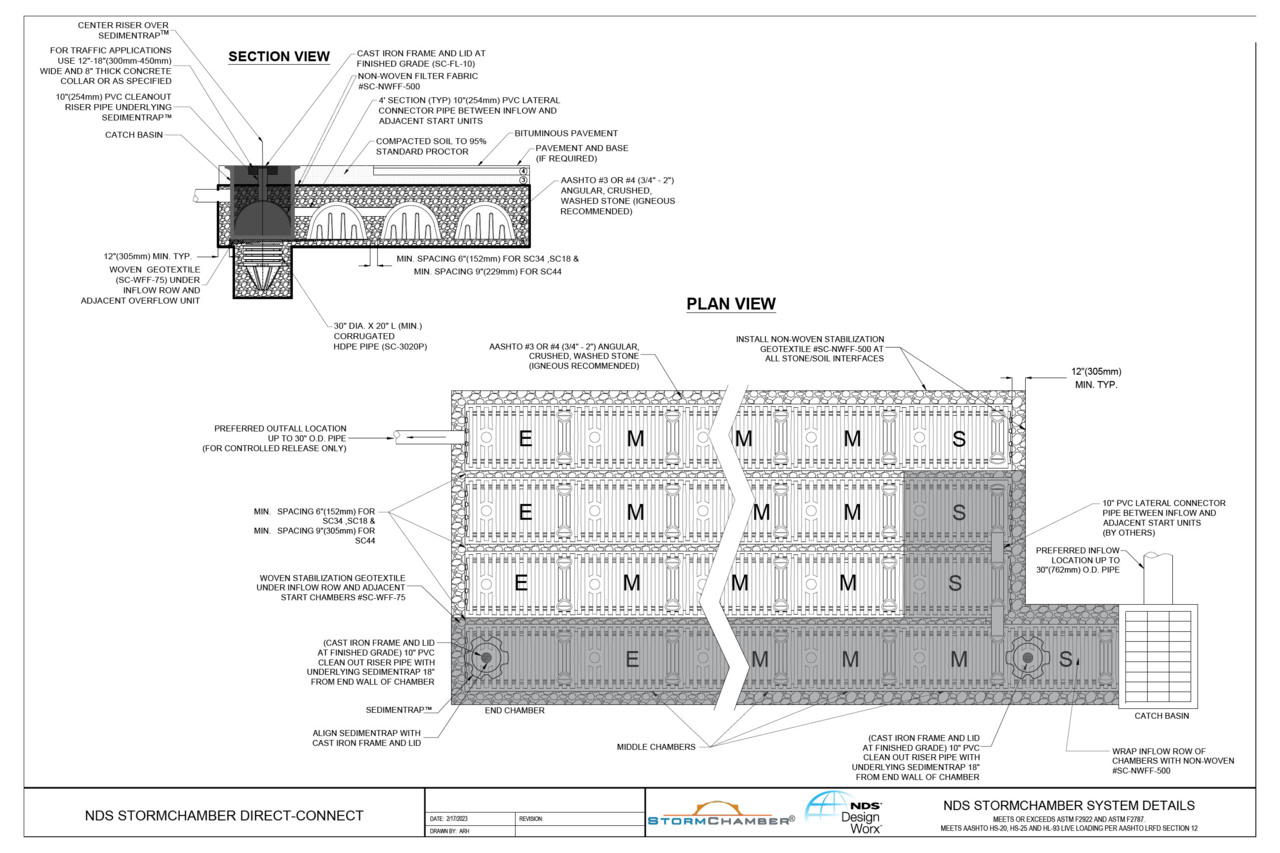

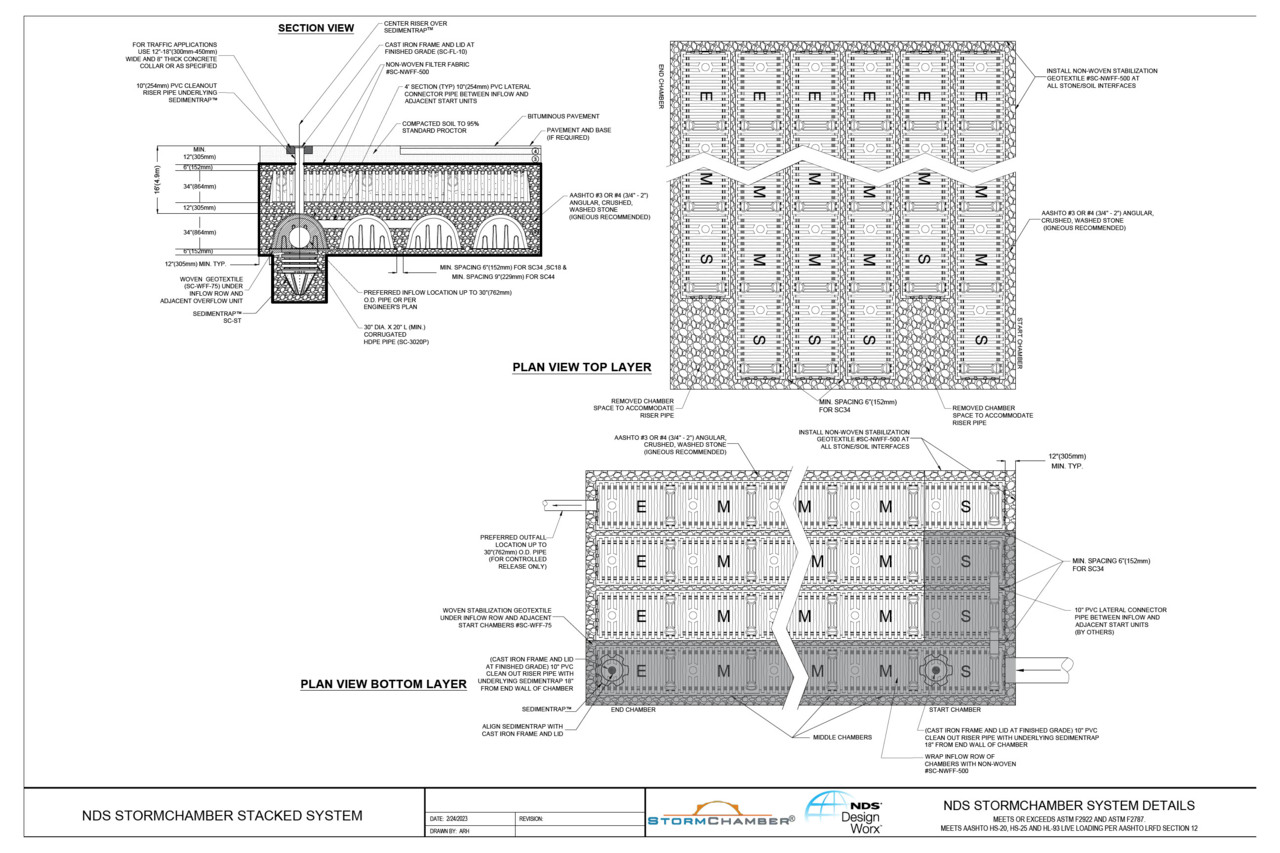

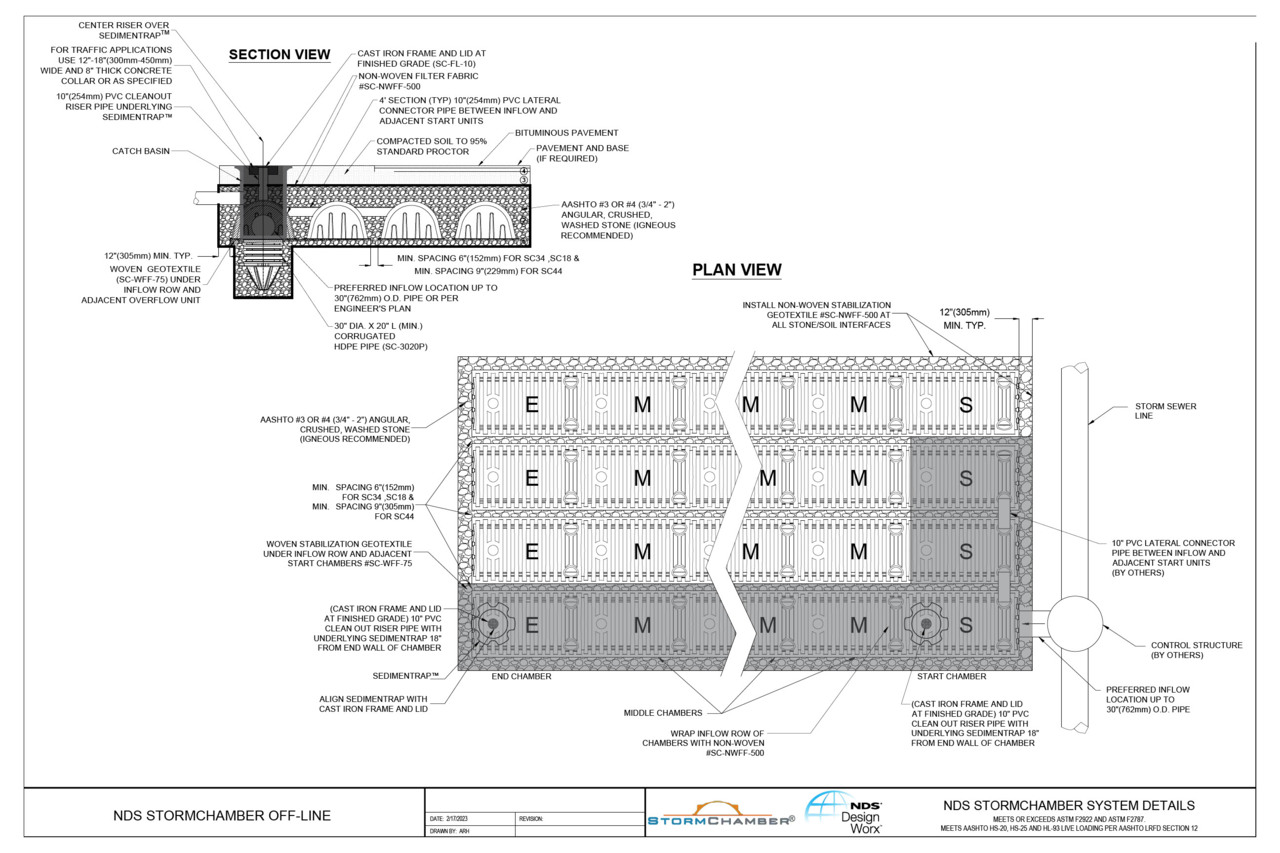

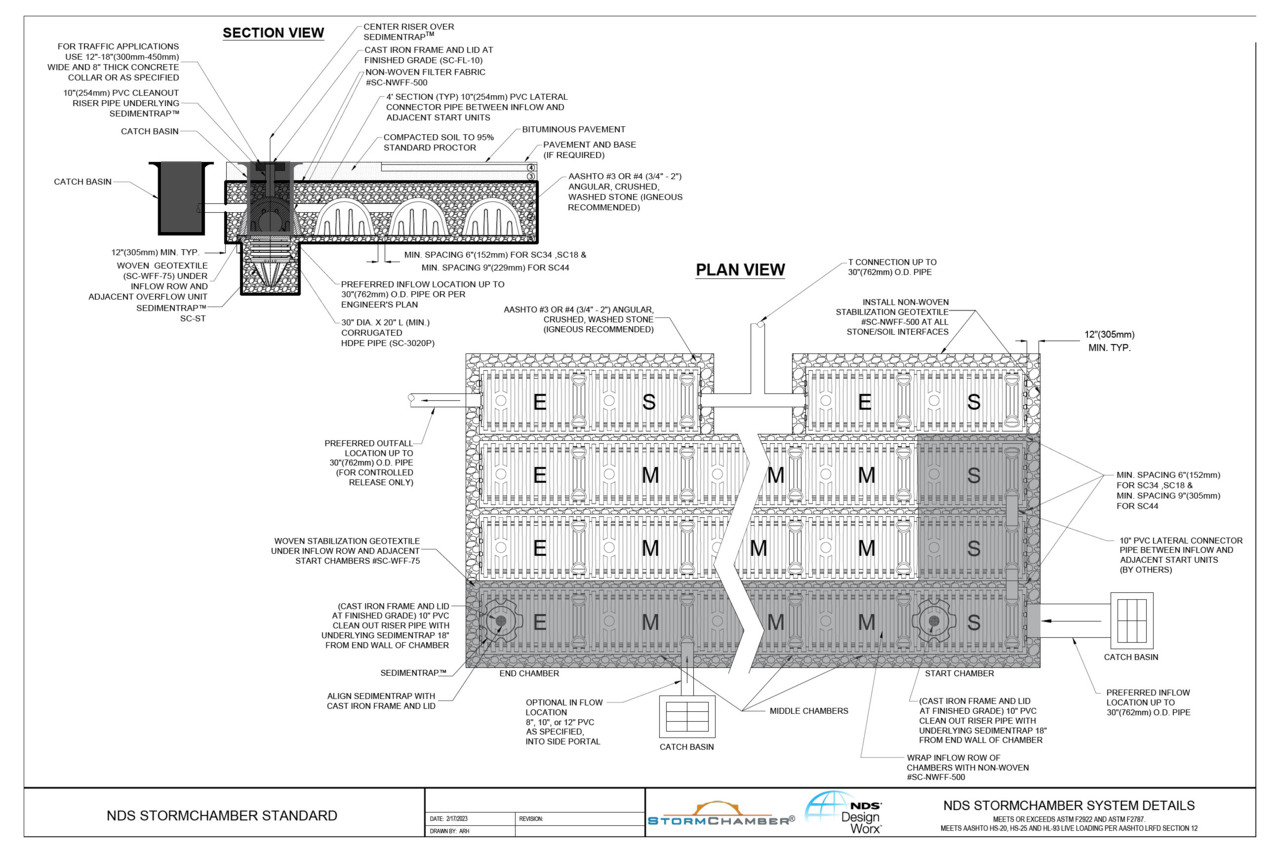

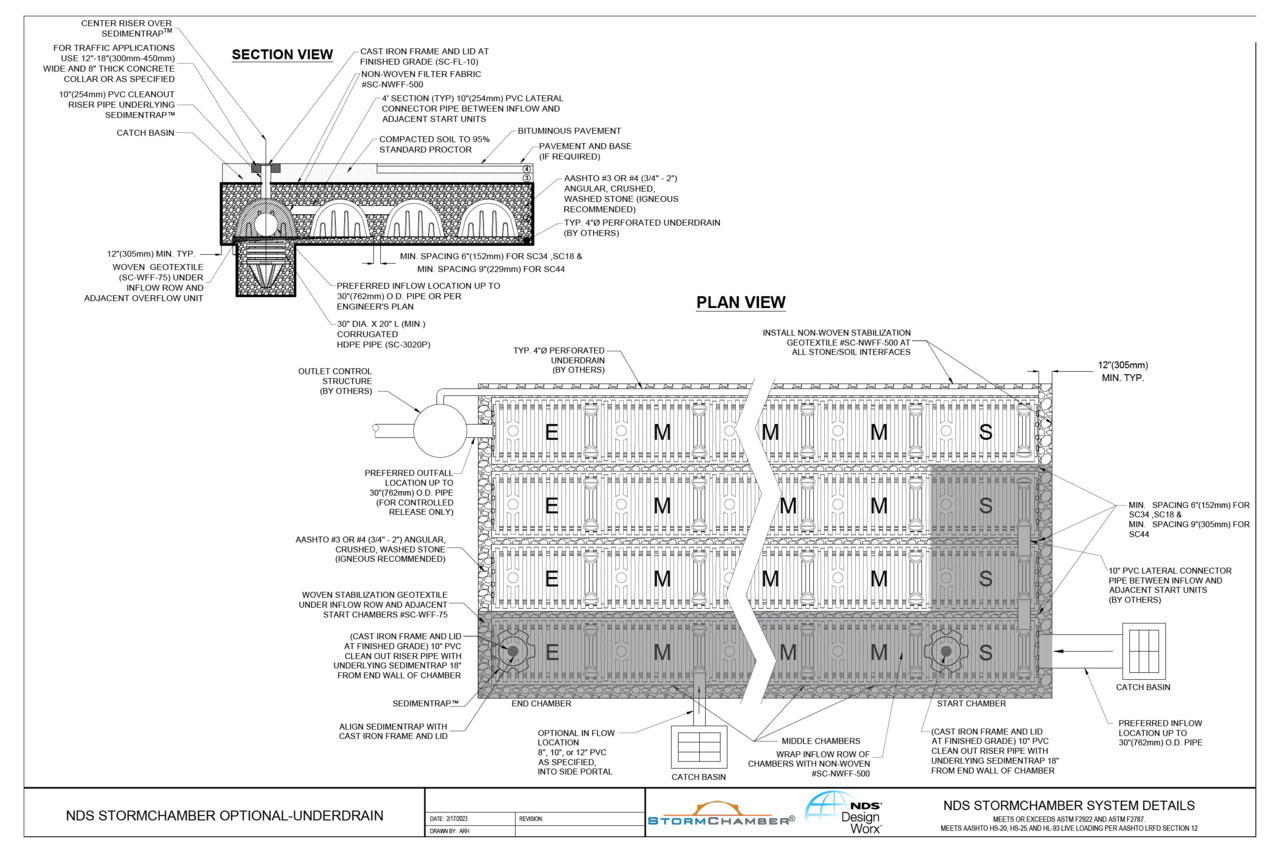

  • The first SedimenTrap™ device is placed in the first chamber of the StormChamber® system and the second trap is placed the final chamber or row
  • As part of a complete stormwater management system, the SedimenTrap™ devices work with the StormChamber® system to intercept sediments and other debris in stormwater runoff
Features
  • Filtration system works as a pre-treatment unit but at a fraction of the cost when placed in first and last chamber of the row receiving stormwater inflow
  • SedimenTrap™ device gathers sediments and other debris for quick, easy, and inexpensive removal by vacuum truck

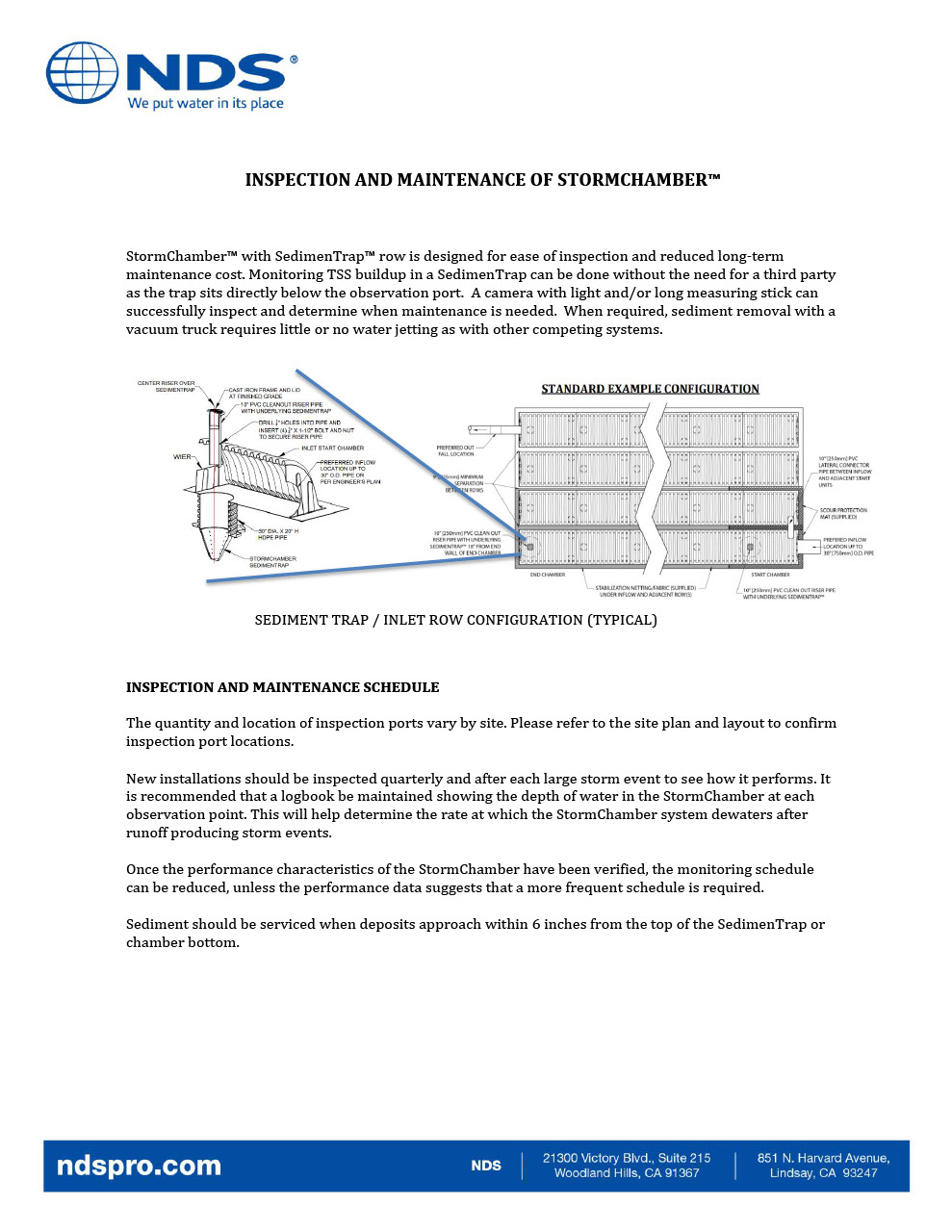

  • Easy inspection using riser pipe as an observation well; inspection can be done without a third party involved

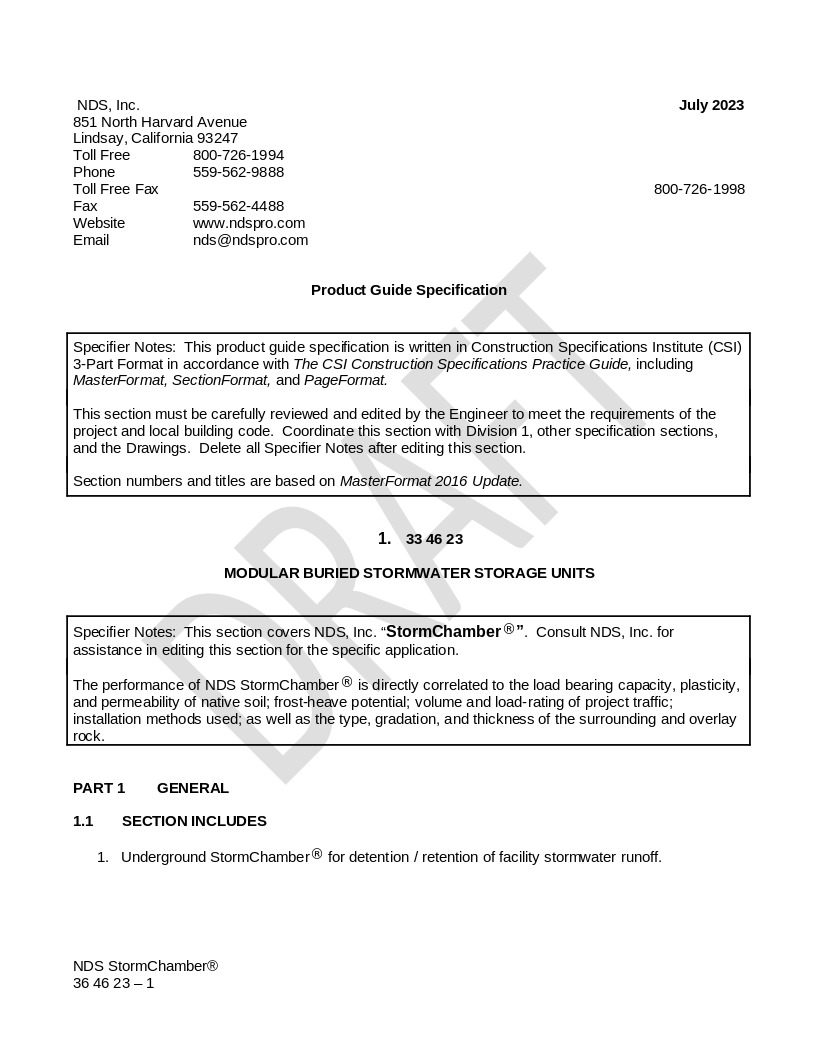

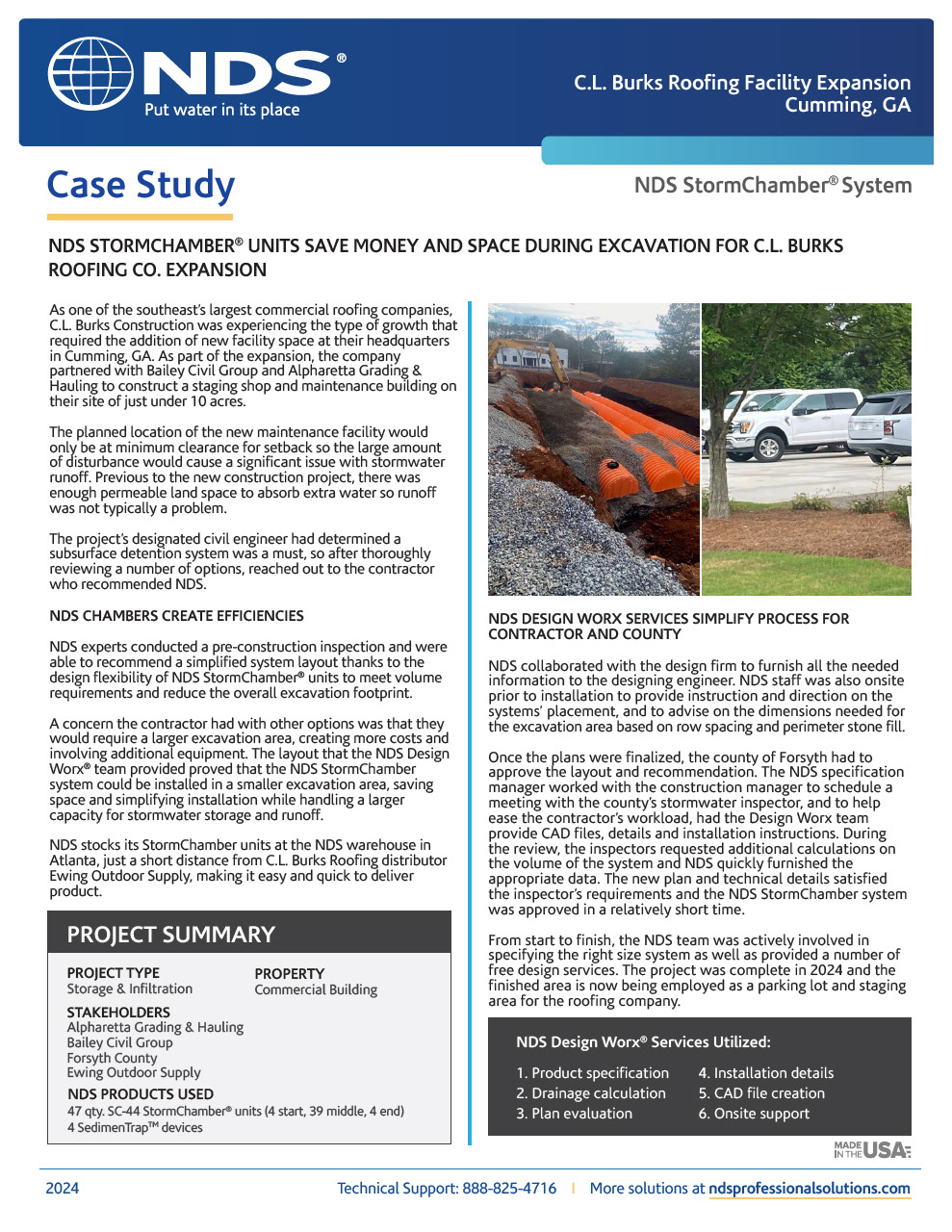

Literature & Resources
