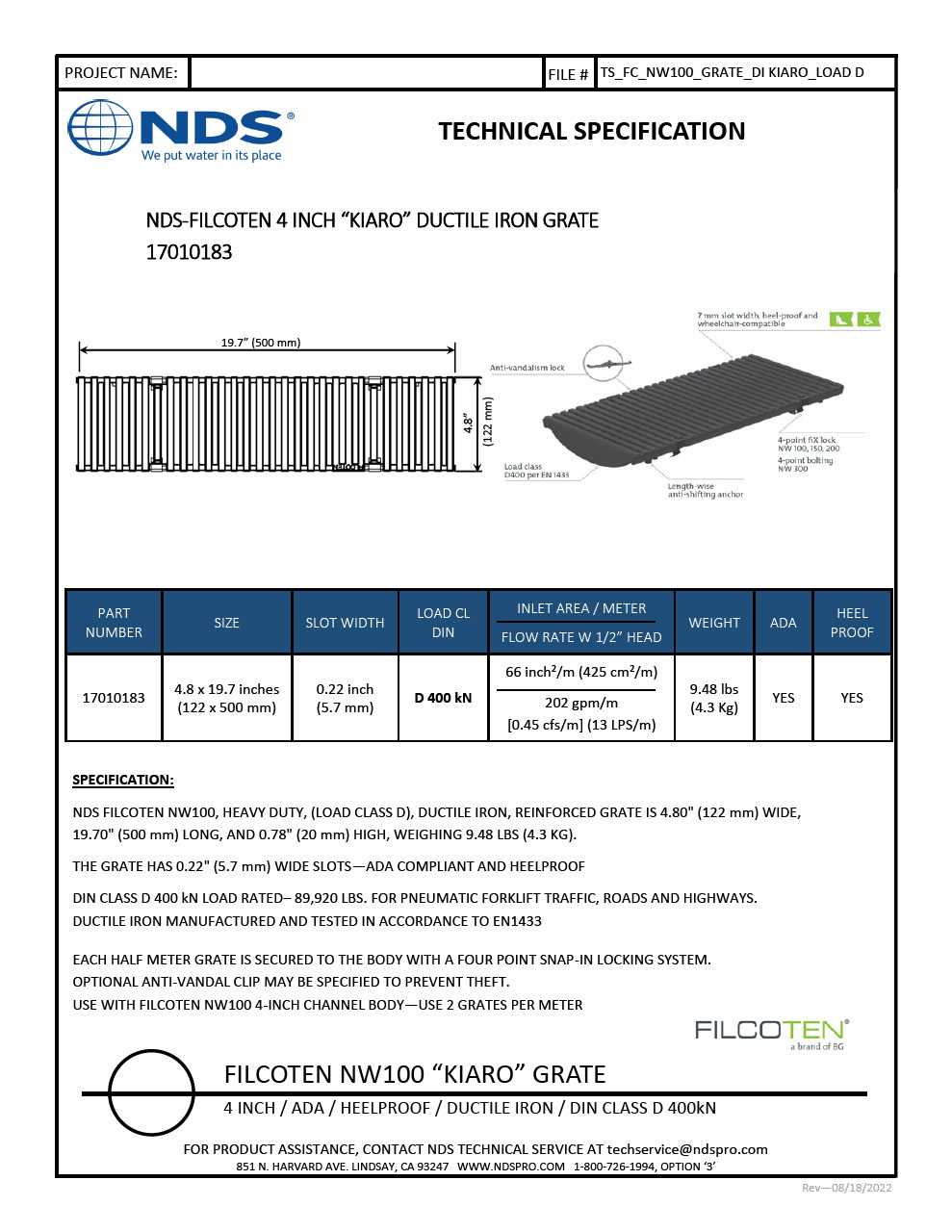

BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron

SKU:

17010183

The stylish Kiaro slot design drain grate elevates the look of your drainage system. Linear openings allow water to pass through while solid bars block leaves and debris from entering and potentially blocking drain pipes. The drain cover has an open surface area of 66.0 sq. in. per meter and 202 GPM flow rate. Rated for NDS Class D loads when properly installed. Grate is ADA compliant and heel proof. Two half-meter (19.69 in.) grates will cover one BG-FILCOTEN 100 4 in. trench drain. Iron grates are painted black to inhibit rust; over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 4.80 in. wide and 19.69 in. long, works with BG-FILCOTEN tec V and tec E channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system
