BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron

SKU:

17020104

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain

Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

Top Down of entire design of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

Angled view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

Closeup view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

Closeup view of the end on the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing clips

Underside view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing support legs

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) fits the 8 in. NDS BG-FILCOTEN® pro V 200 Trench Drain

Top down closeup view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

The class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

Top Down of entire design of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

Angled view of class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104)

Closeup view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) installed on the Filcoten 200 Trench Drain with female end showing

Closeup view of the end on the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing clips

Underside view of the class D load ductile iron bar design BG-FILCOTEN® 200 Trench Drain Grate (NDS 17020104) showing support legs

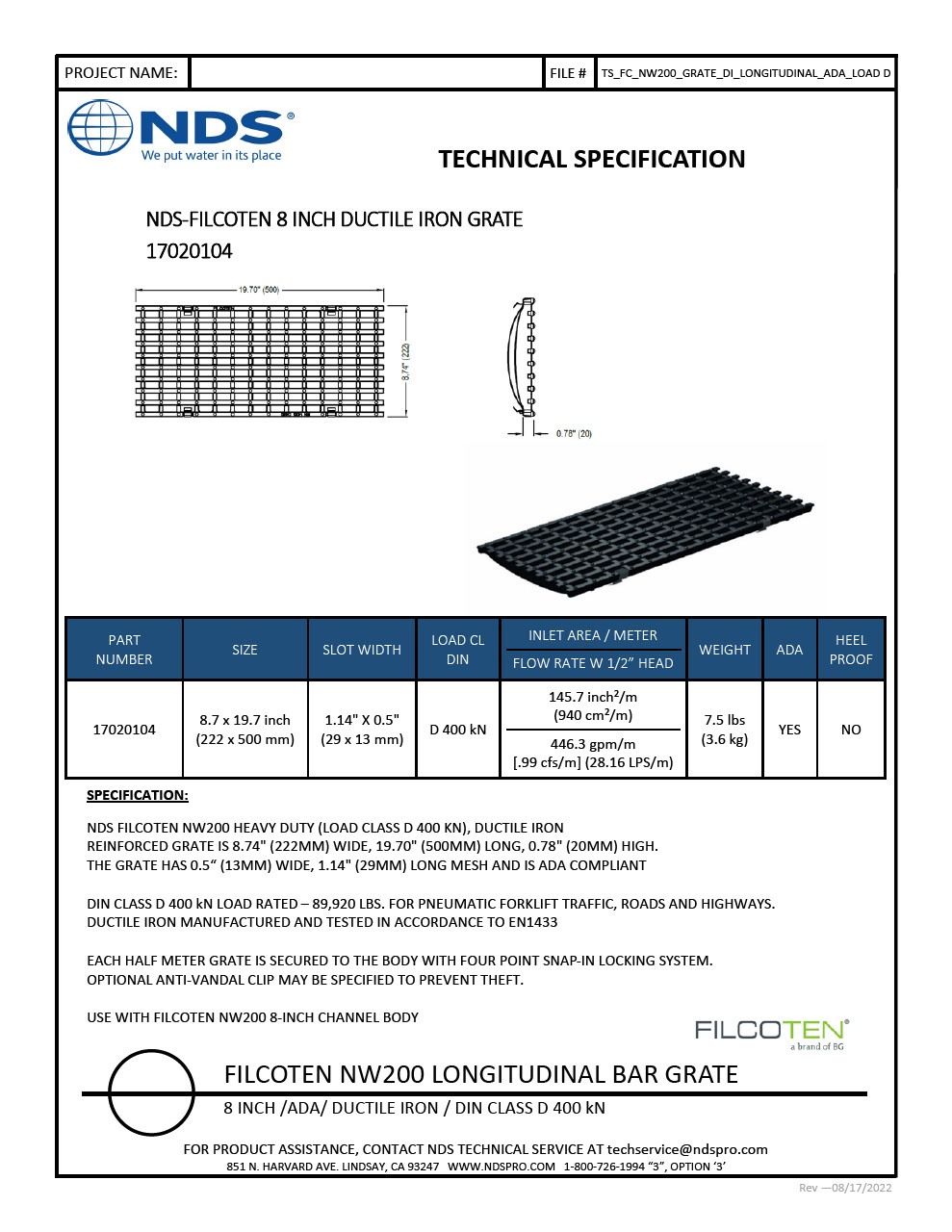

Keep the drainage system free of debris with the trench drain grate. This ductile iron grate with longitudinal bar design is rated for NDS Class D loads when properly installed. The grate has an open surface area of 145.7 sq. in. per meter and impressive flow rate of 446.3 GPM. ADA compliant. Use two half-meter (19.69 in.) grates to cover one BG-FILCOTEN 200 8 in. trench drain. Iron grates are painted black to inhibit rust. Over time, it will form a protective iron-oxide patina.

Where to Buy Find a Contractor

Applications

Prevents leaves and debris from entering the drainage system
Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces
As part of a complete drainage system, the BG-FILCOTEN® trench drain grate works with the channel drain to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

Grate is 8.74 in. wide and 19.69 in. long, works with BG-FILCOTEN pro V 200 channels
Rated for NDS Class D loads, handles up to 89,920 lbs.
Grate is secured to channel body with four-point snap-in locking system
