By NORMA Group

Dura Slope® Channel Drain Grate, 6 in. Wide X 2 ft. Long, Galvanized Steel

SKU:

DS-221

NDS Dura Slope Galvanized Steel Channel (NDS DS-221) installed on the NDS Dura Slope Channel Drain (NDS DS-091)

Angled Closeup View of the NDS Dura Slope Galvanized Steel Channel Grate (NDS DS-221)

Closeup view of the NDS Dura Slope Galvanized Steel Channel Grate (NDS DS-221) installed on the female end of the NDS Dura Slope Channel Drain (NDS DS-091)

Defend your drainage system with the Dura Slope® Channel Drain Grate. Made of tough, weather-resistant galvanized steel, the drain grate prevents leaves and other debris from entering and potentially clogging drain pipes. Works with the Dura Slope Channel Drain to capture runoff from hardscapes. The grate, also known as a drain cover, has an open surface of 23.09 sq. in. per linear ft. and flow rate of 70.64 GPM per linear ft. Rated for NDS Class C loads (up to 325 PSI) when properly installed.

Where to Buy Find a Contractor

Applications

Prevent leaves and debris from entering the channel drain and clogging the drainage system
Use with the Dura Slope Channel Drain to collect water flows from driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces
As part of a complete drainage system, the Dura Slope channel drain and drain grate work together to capture stormwater runoff and convey it to drain pipe for proper release downstream

Features

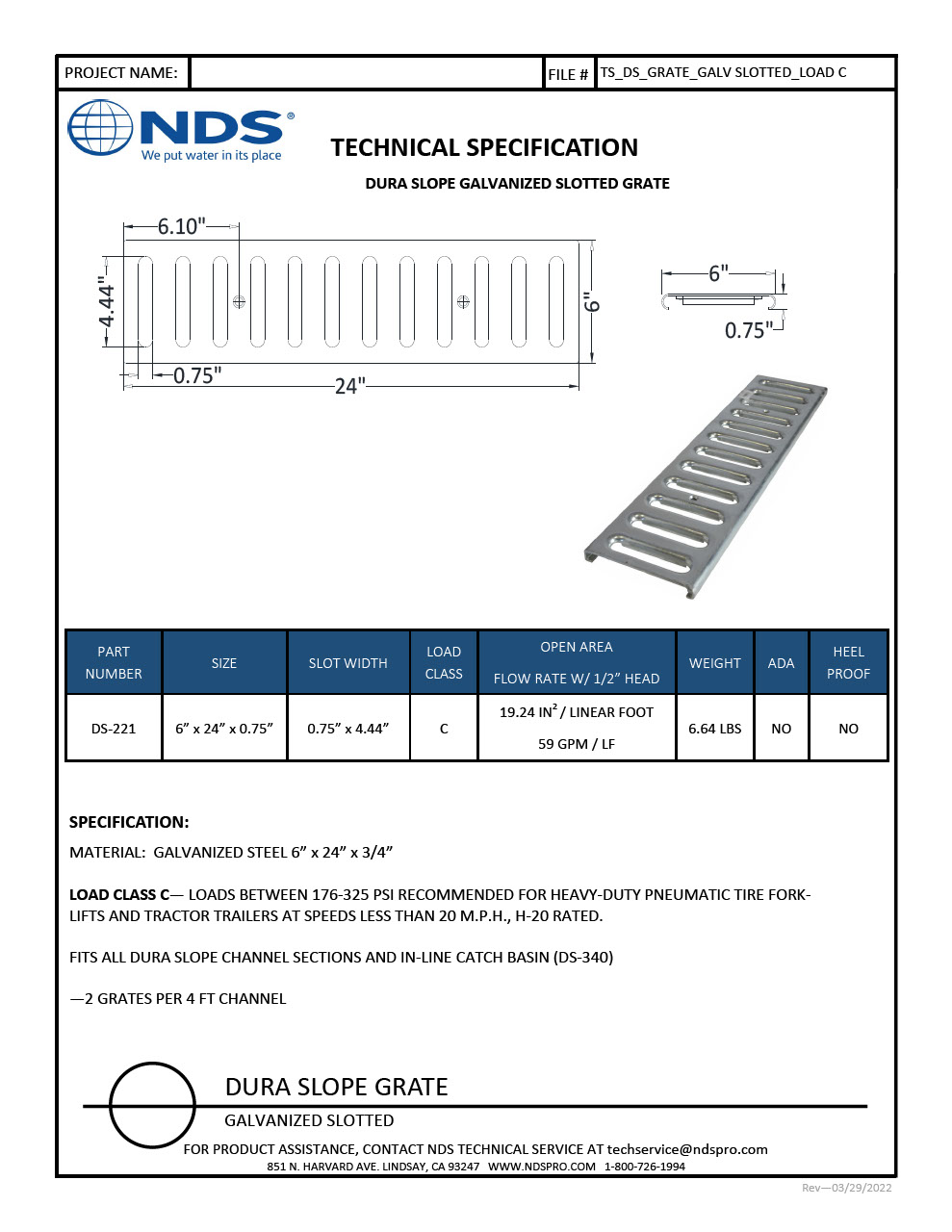

Grate is 24 in. long, 6 in. wide and 3/4 in. high
Grate openings are 3/4 in. X 4-7/16 in
Dura Slope Channel Drain Grates are available in a variety of materials, colors, and designs
