5 in. Pro Series™ Channel Drain, Deep Profile, 5-1/2 in. wide x 39-3/8 in. long

SKU:

800

Bottom view of NDS 5 in. Pro Series Channel Drain featuring side ribs, stabilizing ribs, and built-in saw guide (NDS 864G*, NDS M864G, NDS 864GMTLRTL, NDS 864, NDS 800)

Male end of the NDS 5 in. Pro Series Channel Drains with interlocking joints on ends; channel-to-channel clips reduce motion during installation; grate sits on grate seat (NDS 800, NDS 814)

NDS 5 in. Pro Series Channel Drain features an integrated bottom outlet that connects to 3 in. & 4 in. Sewer and Drain Fittings (NDS 864G*, NDS M864G, NDS 864GMTL, NDS 800)

NDS 5 in. Pro Series Channel Drain features side knockouts for outletting and connects to 3 in. Sewer and Drain Pipe (NDS 864G*, NDS M864G, NDS 864GMTL, NDS 800)

The NDS 5 in. Pro Series Channel has a grate seat for the 5 in. Pro Series Brick Red Channel Drain Grate (NDS 800, NDS 818)

Line up two NDS 5 in. Pro Series Channel Drains to connect together with interlocking joints; no couplings required (NDS 864G*, NDS M864G, NDS 800)

Step 2 is to lift one NDS 5 in. Pro Series Channel Drain to connect to another with the interlocking joints; no couplings required (NDS 864G*, NDS M864G, NDS 800)

Step 3 is to slide NDS 5 in. Pro Series Channel Drains together with interlocking joints; no couplings required (NDS 864G*, NDS M864G, NDS 800)

Connected NDS 5 in. Pro Series Channel Drains with no couplings required (NDS 864G*, NDS M864G, NDS 800)

NDS 5 in. Pro Series End Cap/Outlet attaches to end of 5 in. Pro Series Channel Drain and connects to 3 in. Sewer and Drain Pipe & 4 in. Sewer and Drain Fittings (NDS 864G*, NDS M864G, NDS 800, NDS 814, NDS 813)

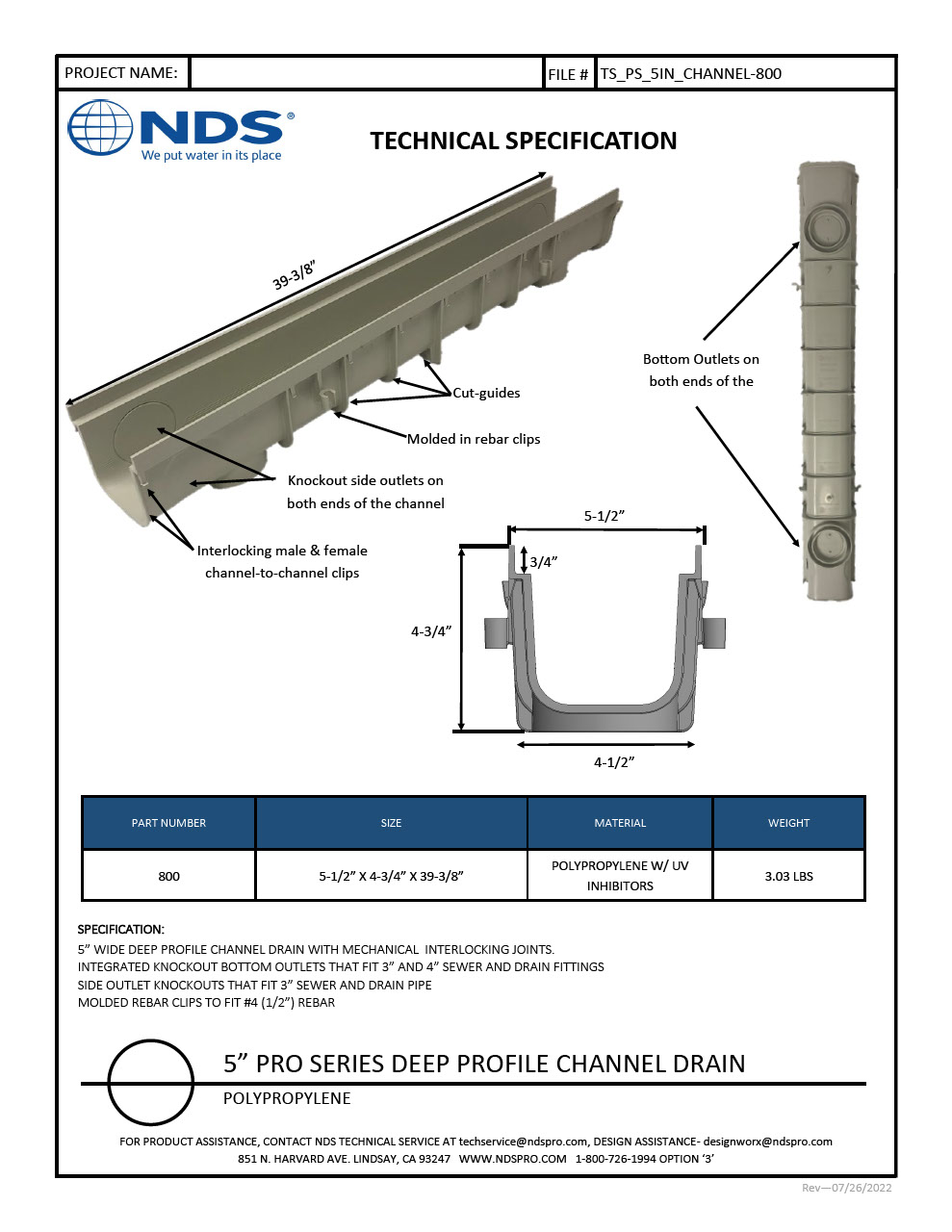

Trouble with excess water flooding your hardscape? Solve the drainage problem with the channel drain that’s engineered for optimal performance. The 5 in. Pro Series™ Channel Drain is ideal for draining moderate water flows from driveways, concrete & paver patios, courtyards, & walkways. The 5 in. Deep Profile channel is 4-3/4 in. deep (also available is the 5 in. Shallow Profile channel, which is 2-5/8 in. deep). They come with interlocking joints for easy connections—no couplings required. Channels join together for longer runs and can be cut to sections as short as 4 in. using the saw guide. The channel has an integrated bottom outlet that connects to 3 in. & 4 in. sewer and drain fittings, and side knockout outlets that connect to 3 in. sewer and drain pipe.

Where to Buy Find a Contractor

Applications

Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
5 in. Pro Series Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and sports facilities, and directs it to drain pipes for proper release downstream
Works with 5 in. Pro Series Channel Drain components

Features

The 5 in. Pro Series Channel Deep Profile Drain is 4-3/4 in. deep and features a modular design with interlocking joints for a secure channel-to-channel connection—no couplings required; easy to cut to size in 4 in. increments with saw guide
Integrated bottom outlet and side outlet knockouts for outletting water
Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier
