Applications
- Collects heavy flows from driveways, patios, courtyards, walkways, & sport facilities
- Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

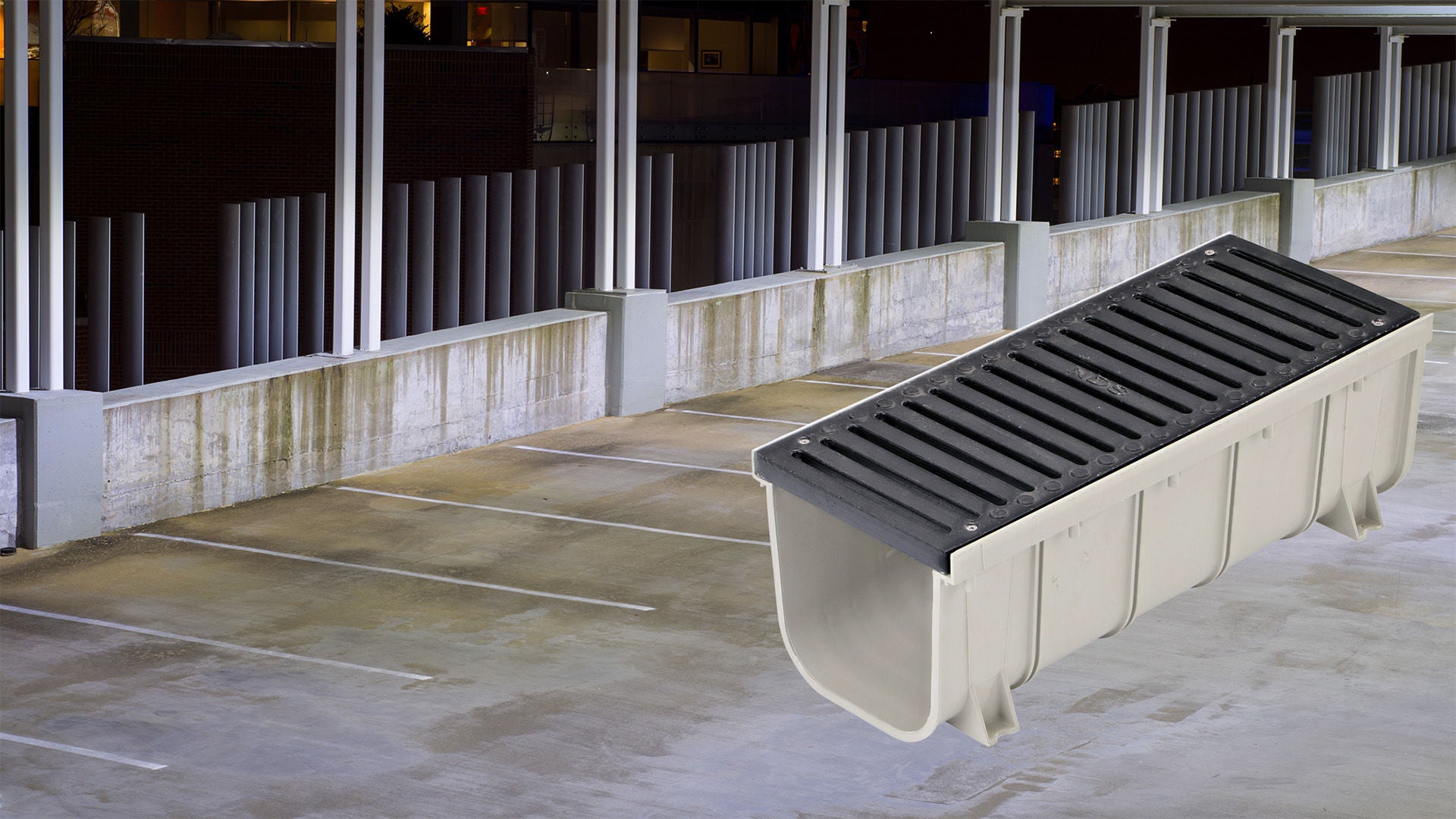

- The 8 in. Pro Series Channel Drain, as part of a complete channel drainage system, collects and conveys water to drain pipes for proper release downstream or to an infiltration device
Installation & Maintenance
- Modular design connects together for longer runs; can be cut to size as short as 4 in. long for smaller sections
- Removable drain grates make it easier to clean debris from the channel for maintenance
Materials & Sustainability
- 8 in. Pro Series Channel is made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
- Deep profile channels are made in the USA; shallow profile channels are made of imported materials
- Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
Product Models
| Part Number | Description |
|---|---|
| 888 | 8 in. Pro Series Channel™ Drain Grate, 7-13/16 in. wide X 19-11/16 in. long, Ductile Iron |
| 836 | 8 in. Pro Series Channel™ Drain Grate, 7-3/4 in. wide X 19-11/16 in. long, Lt. Gray Plastic |
| 837 | 8 in. Pro Series Channel™ Drain Grate, Light Traffic, 7-7/8 in. wide X 19-11/16 in. long, Lt. Gray Plastic |

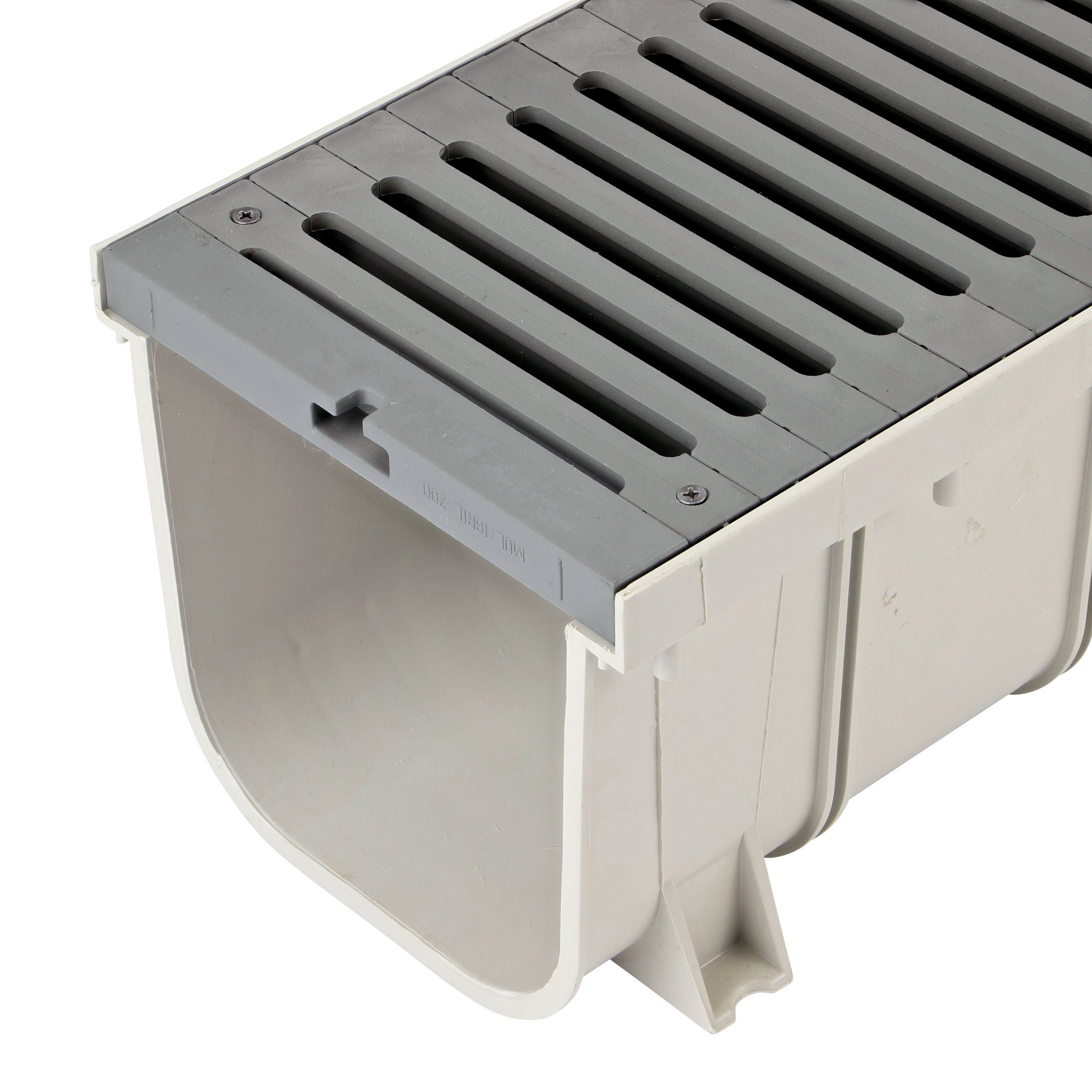

| 838 | 8 in. Pro Series Channel™ Drain Grate, Load Star, 7-7/8 in. wide X 19-11/16 in. long, Lt. Gray Nylon |
| Part Number | Description |
|---|---|
| 831 | 8 in. Pro Series Channel™ Drain End Cap/End Outlet, Shallow Profile, Connects to 3 in. Drain Fittings, Lt. Gray Plastic |
| 834 | 8 in. Pro Series Channel™ Drain End Cap/Outlet, Deep Profile, Connects to 3 in. and 4 in. Drain Fittings, Lt. Gray Plastic |
| 832 | 8 in. Pro Series Channel™ Drain Side Outlet, Shallow Profile, Connects to 3 in. Fittings; Bottom Connects to 4 in. Pipe |
Frequently Asked Questions
The 8 in. Pro Series Channel is available in shallow and deep profile. Both profiles are available in 19-11/16 in. lengths. The channel can be easily cut to any length.
The 8 in. Pro Series Channel plastic grates are available in light grey.
Yes. Ductile iron grates are available.
The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The reinforced nylon grate is rated to support heavy-duty pneumatic tire forklifts and tractor trailers (up to 325 psi) at speeds less than 20 m.p.h. The ductile iron grate is rated to support heavy-duty hard tire forklifts (up to 575 psi) at speeds less than 20 m.p.h.
The 8 in. Pro Series channels and accessories are sold individually.
There are no prefabricated accessories for the 8 in. Pro Series Channel to make bends, however the channel can be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.
Sections of 8 in. Pro Series Channel can be connected using the interlocking end joints.
- Shallow profile: End caps can be purchased that connects to a 3 in. sewer and drain pipe. NDS part # 832 has knockouts that can be used to drain water out of the sides of the channel. The side outlets have 3 in. sewer and spout and the bottom drain fits 4 in. sewer and drain pipe and 3 in. sewer and drain fittings.
- Deep profile: End caps can be purchased that has a 3 in. or 4 in. sewer and storm spout.
We recommend a 1/8 in. gap be left between grates during installation to allow for expansion of the grates.
The shallow channel manages 287 GPM at 1% slope. The deep channel handles 579 GPM at 1% slope. Grate flow rate is between 30.85 to 71.28 GPM per LF.
The 8 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together.
The grates can be screwed to the channel using NDS part # 229 – Stainless Steel Screws, Phillips Head #8 x 1 in. screws (screws sold separately).
