5 in Pro Series Channel Drains

5 in. Pro Series Channel™ Drains

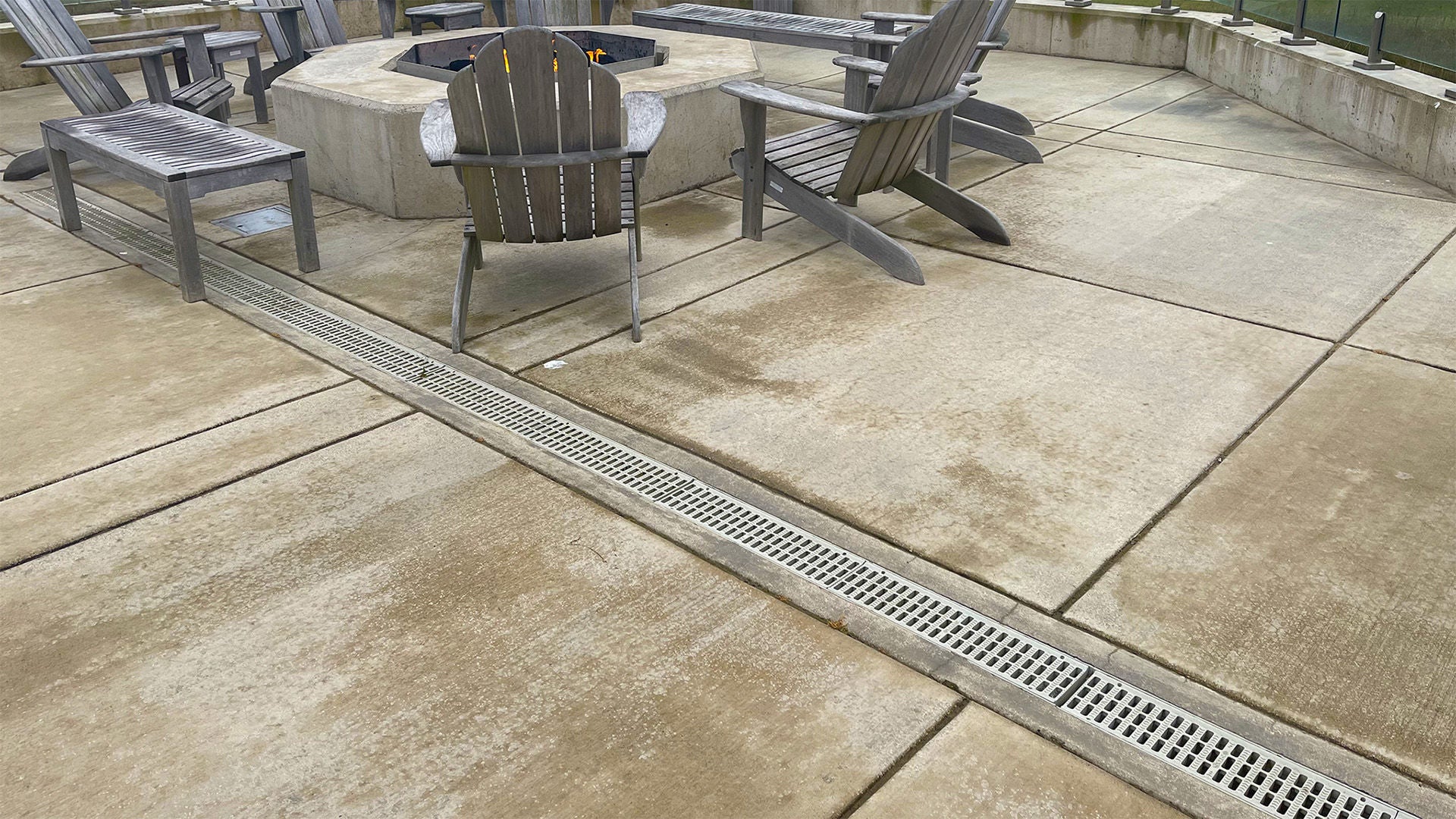

Drain moderate water flows from hardscapes with the 5 in. Pro Series Channel Drain. The channel features an integrated bottom outlet and connect with interlocking joints. Ideal for driveways, concrete and paver patios, courtyards, and walkways.

5 in Pro Series Channel Drains

Key Features

  • Modular design with interlocking joints for a secure channel-to-channel connection—no couplings required; easy to cut to size in 4 in. increments using saw guide
  • Channel-to-channel clips reduce motion during installation; rebar clips instead of lower mount clips make installation easier
  • Thick channel walls and extended side ribs provide increased strength and durability
  • Channels are available in deep profile (4-3/4 in. depth) and shallow profile (2-5/8 in. depth)
  • Deep profile channels feature integrated bottom outlet and side-outlet knockouts

Applications

  • Ideal for draining moderate flows from hardscape surfaces such as driveways, concrete and paver patios, courtyards, walkways, and sports facilities

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • The 5 in. Pro Series Channel Drain, as part of a complete channel drainage system, collects and conveys water to drain pipes for proper release downstream or to an infiltration device

Installation & Maintenance

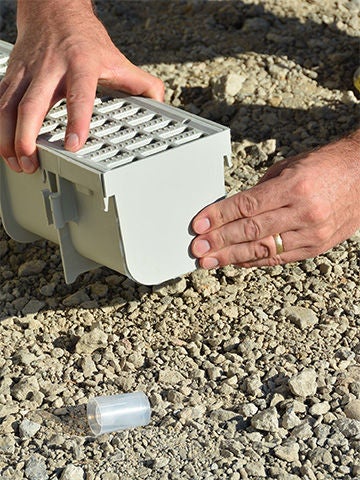

  • Modular design connects together for longer runs; can be cut to size as short as 4 in. long for smaller sections

  • Removable drain grates make it easier to clean debris from the channel for maintenance

Materials & Sustainability

  • 5 in. Pro Series Channel made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

  • Grates made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking; slight color variations may occur

  • Deep profile channels are made in the USA; shallow profile channels are made of imported materials

  • Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding

Product Models

Part Number
Description
8645 in. Pro Series Channel™ Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Gray Plastic Grates, End Caps/Outlet
8005 in. Pro Series Channel™ Drain, Deep Profile, 5-1/2 in. wide x 39-3/8 in. long
8205 in. Pro Series Channel™ Drain, Shallow Profile, 5-1/2 in. wide X 19-11/16 in. long

Part Number
Description
8235 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide x 19-11/16 in. long, Ductile Iron
8165 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, Black Plastic
8185 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, Brick Red Plastic
8245 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide x 19-5/8 in. long, Galvanized Steel
8145 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, Gray Plastic
8155 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, Green Plastic
8175 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, Sand Plastic
8195 in. Pro Series Channel™ Drain Grate, 5-1/4 in. wide X 19-5/8 in. long, White Plastic
8265 in. Pro Series Channel™ Drain Grate, 5-3/16 in. wide x 19-11/16 in. long, Lt. Gray Plastic
8285 in. Pro Series Channel™ Drain Grate, Load Star, 5-3/16 in. wide x 19-5/8 in. long, Gray Nylon

Part Number
Description
8225 in. Pro Series Channel™ Bottom Outlet/Side Outlet, Shallow Profile, Fits 3 in. Drain Fittings, 1-1/2 in. Drain Pipe
8625 in. Pro Series Channel™ Drain 45° Elbow and Grate, Deep Profile, Lt. Gray Plastic
8615 in. Pro Series Channel™ Drain 90° Elbow and Grate, Deep Profile, Lt. Gray Plastic
8125 in. Pro Series Channel™ Drain End Cap, Deep Profile, Lt. Gray Plastic
8135 in. Pro Series Channel™ Drain End Cap/Outlet, Deep Profile, Connects to 3 in. Pipe, 4 in. Fittings, Lt. Gray Plastic
8215 in. Pro Series Channel™ Drain End Cap/Outlet, Shallow Profile, Connects to 1-1/2 in. Drain Fittings, Lt. Gray Plastic
PSRC-8645 in. Pro Series Channel™ Drain Qwik-Turn™ Deep Profile Radius Coupling, 6º Bend, Lt. Gray Plastic

Frequently Asked Questions

The 5 in. Pro Series Channel is available in shallow and deep profile. The shallow profile is 19- 11/16 in. and the deep profile is 39-3/8 in. The channel can be easily cut to any length.

The 5 in. Pro Series Channel plastic grates are available in light grey, green, black, sand, brick red, and white.

Yes. Galvanized Steel and Cast iron grates are available.

The plastic grate is rated to support automobiles, light trucks, and medium-duty pneumatic tires (up to 175 psi) at speeds less than 20 m.p.h. The reinforced nylon grate is rated to support heavy-duty pneumatic tire forklifts and tractor trailers (up to 325 psi) at speeds less than 20 m.p.h. The cast iron grate is rated to support heavy-duty hard tire forklifts (up to 575 psi) at speeds less than 20 m.p.h.

The 5 in. Pro Series Channel (deep profile) can be purchased in a kit that includes the channel, 2 grates, an end cap, and an end cap with outlet (NDS part # 864). The channel, end caps, end cap with outlets, grates, and other accessories can also be purchased separately.

Yes. 90° and 45° elbows are available for the deep profile 5 in. Pro Series Channel. The new radius coupling (NDS part # PSRC-864) easily connects to the deep profile section to allow for bends as small as 30 in. radius. The channel can also be cut to any angle using a miter saw. The same angle will need to be cut into another piece of channel. Glue the pieces together and secure the joint before encasing in concrete.

Sections of 5 in. Pro Series Channel can be connected using the interlocking end joints.

  1. Shallow profile: End caps can be purchased that connect to a 1-1/2 in. schedule 40 spout. NDS part # 822 has knockouts that can be used to drain water out of the sides of the channel. The side outlets have 3 in. sewer and spout and the bottom has an 1-1/2 in. schedule 40 spout.
  2. Deep profile: End caps can be purchased that connected to a 3 in. sewer and storm drain pipe hub or a 4 in. sewer and drain pipe fitting.

We recommend a 1/8 in. gap be left between grates during installation to allow for expansion of the grates.

The shallow channel manages 63 GPM at 1% slope. The deep channel handles 193.0 GPM at 1% slope.  Grate flow rate is between 14.87 to 76.85 GPM per LF.

The shallow profile 5 in. Pro Series Channel is made from PVC. PVC glue can be used to glue all pieces together. The deep profile 5 in. Pro Series Channel is made from HDPE. Welder contact adhesive by Homax Products Inc. can be used to glue the accessories to the deep profile.

The grates can be screwed to the channel using NDS part # 229 – Stainless Steel Screws, Phillips Head #8 x 1 in. screws (screws sold separately).
