By NORMA Group

Spee-D® Channel Drain Assembly, 4-3/4 in. wide X 10 ft. long with Channel & Prefastened Galv. Steel Grates

SKU:

400-10MTL

NDS Spee-D® Channel Drain Coupling (NDS 248*, NDS 248) securely connects two Spee-D® Channel Drain Assembly with Prefastened Galv. Steel Grates (NDS 400-10MTL)

When rainfall and runoff leave standing surface water on your driveway, patio, or courtyard, the water needs a better way to drain. Don’t let excess water seep into your building’s foundation and damage your property. The Spee-D® Channel Drain can help solve drainage problems by capturing moderate flows and directing it away to drain pipes. Assembly includes polyvinyl chloride channel preassembled with galvanized steel grates for a faster install. Ideal for draining moderate flows from driveways, concrete & paver patios, courtyards, and walkways. The Spee-D Channel Drain features patented honeycomb reinforced walls and flying buttress design for load-bearing support. Bottom flanges have an anchoring lip for straight installation without floating. Channels connect with a coupling. Channel is made of polyvinyl chloride (PVC) treated with UV inhibitors, drain grates are made of galvanized steel. Spee-D Channels are part of the NDS Profile Channel series.

Where to Buy Find a Contractor

Applications

Channel drains and trench drains capture and convey excess water to prevent mildew growth, concrete staining, and costly structural damage
Spee-D Channel Drain system collects moderate water flows from driveways, concrete & paver patios, courtyards, and walkways, and directs it to drain pipes for proper release downstream
Works with Spee-D Channel Drain components; part of the NDS Profile Channel series

Features

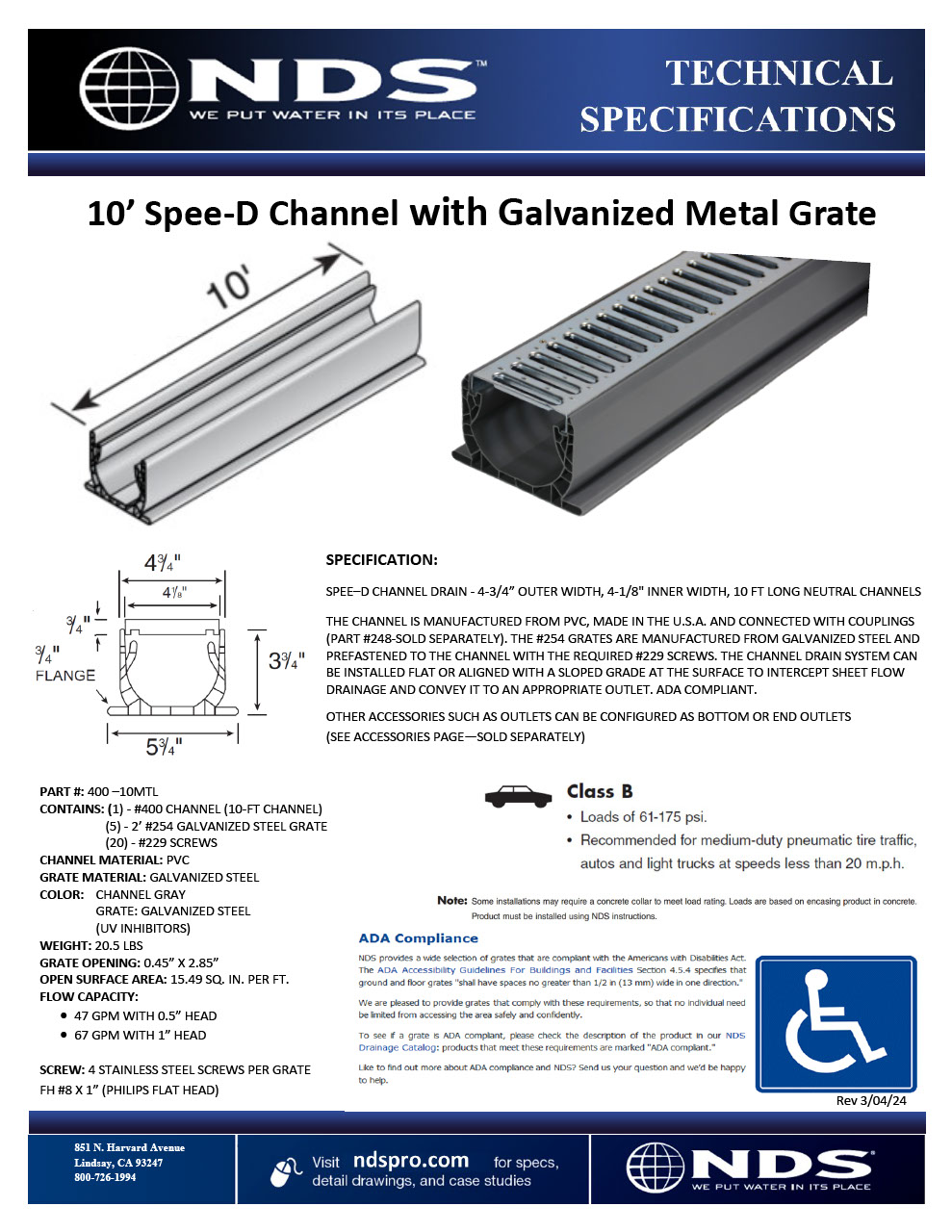

Spee-D Channel Drains are 4-3/4 in. wide, 3-3/4 in. high, and 10 ft. long; length can be cut to size with a saw
Patented flying buttress design provides load-bearing support from both sides as well as underneath the channel
Bottom flanges provide an anchoring lip for straight installation and prevents floating
