BG-FILCOTEN® pro V 200 Trench Drains

BG-Filcoten trench drain family

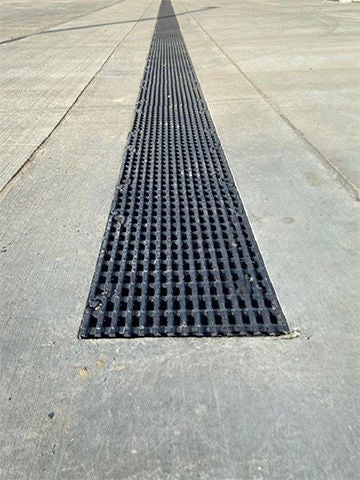

The BG-FILCOTEN® pro V  200 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 8 in. wide channels with galvanized steel rails.

BG-Filcoten trench drain

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete
  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as perforated, bar, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

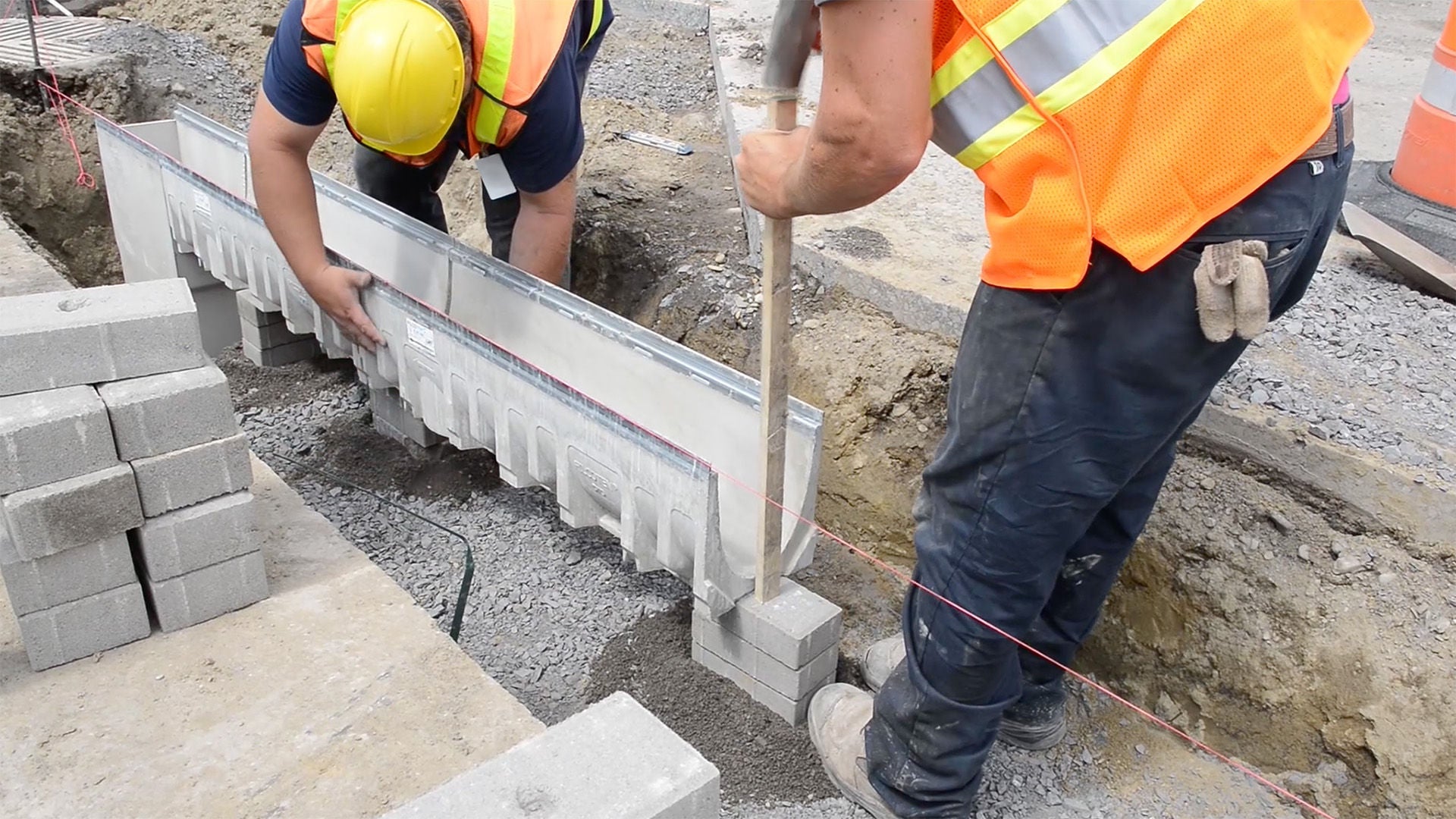

Installation

  • Sections connect together with interlocking tongue and groove joints
  • Crafted with flat sides for flush installations against buildings
  • Anti-sliding lugs provide stability against longitudinal sliding
  • Anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete



Maintenance

  • Check the drain grate and clear debris from grate openings
  • Remove grate to inspect inside the trench drain
  • Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Part Number
Description
10620204BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.04 in. to 10.24 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.22 in. Deep, Sloped Channel 4
10620205BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.24 in. to 10.44 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.42 in. Deep, Sloped Channel 5
10620261BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.44 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.42 in. Deep, Constant Depth Channel 5-0
10620206BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.44 in. to 10.63 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.61 in. Deep, Sloped Channel 6
10620207BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.63 in. to 10.83 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.81 in. Deep, Sloped Channel 7
10620208BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 10.83 in. to 11.02 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.01 in. Deep, Sloped Channel 8
10620209BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.02 in. to 11.22 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.20 in. Deep, Sloped Channel 9
10620210BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.22 in. to 11.42 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.40 in. Deep, Sloped Channel 10
10620262BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.42 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.40 in. Deep, Constant Depth Channel 10-0
10620211BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.42 in. to 11.61 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.60 in. Deep, Sloped Channel 11
10620212BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.61 in. to 11.81 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.80 in. Deep, Sloped Channel 12
10620213BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 11.81 in. to 12.01 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 12.99 in. Deep, Sloped Channel 13
10620214BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.01 in. to 12.20 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.19 in. Deep, Sloped Channel 14
10620215BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.20 in. to 12.40 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.39 in. Deep, Sloped Channel 15
10620216BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.40 in. to 12.60 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.58 in. Deep, Sloped Channel 16
10620217BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.60 in. to 12.80 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.78 in. Deep, Sloped Channel 17
10620218BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.80 in. to 12.99 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 13.98 in. Deep, Sloped Channel 18
10620219BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 12.99 in. to 13.19 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.17 in. Deep, Sloped Channel 19
10620220BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 13.19 in. to 13.38 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.37 in. Deep, Sloped Channel 20
10620264BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 13.38 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 14.37 in. Deep, Constant Depth Channel 20-0
10620200BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.45 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.43 in. Deep, Constant Depth Channel 0
10620201BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.45 in. to 9.65 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.63 in. Deep, Sloped Channel 1
10620202BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.65 in. to 9.84 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 10.83 in. Deep, Sloped Channel 2
10620203BG-FILCOTEN® pro V 200 Trench Drain with Galvanized Steel Rails, 9.84 in. to 10.04 in. Invert Depth, 8.74 in. Wide X 39.37 in. Long X 11.02 in. Deep, Sloped Channel 3

Part Number
Description
17020104BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron
17020105BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron
17020180BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
17020183BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
17020184BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
17020228BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
17020229BG-FILCOTEN® 200 Trench Drain Grate, 8.74 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel

Part Number
Description
10620292BG-FILCOTEN® 200 Trench Drain Inline Catch Basin Kit with 1-Outlet Catch Basin and Trash Bucket
19020215BG-FILCOTEN® 200 Trench Drain End Cap, Galvanized Steel
19020216BG-FILCOTEN® 200 Trench Drain End Outlet, Galvanized Steel
19020902BG-FILCOTEN® 200 Trench Drain Rebar Support, Galvanized Steel
22512BG-FILCOTEN® 200 Trench Drain Trash Bucket, Plastic
32089BG-FILCOTEN® 200 Trench Drain Grate Locking Device, Stainless Steel
19020295BG-FILCOTEN® 200 Trench Drain Step Connector Plate, Galvanized Steel
70154BG-FILCOTEN® 200 and 300 Trench Drain 8 in. Pipe Connector for Catch Basin, PVC
19021208BG-FILCOTEN® 200 and 300 Trench Drain Bottom Outlet, Galvanized Steel
