BG-FILCOTEN® pro V 300 Trench Drains

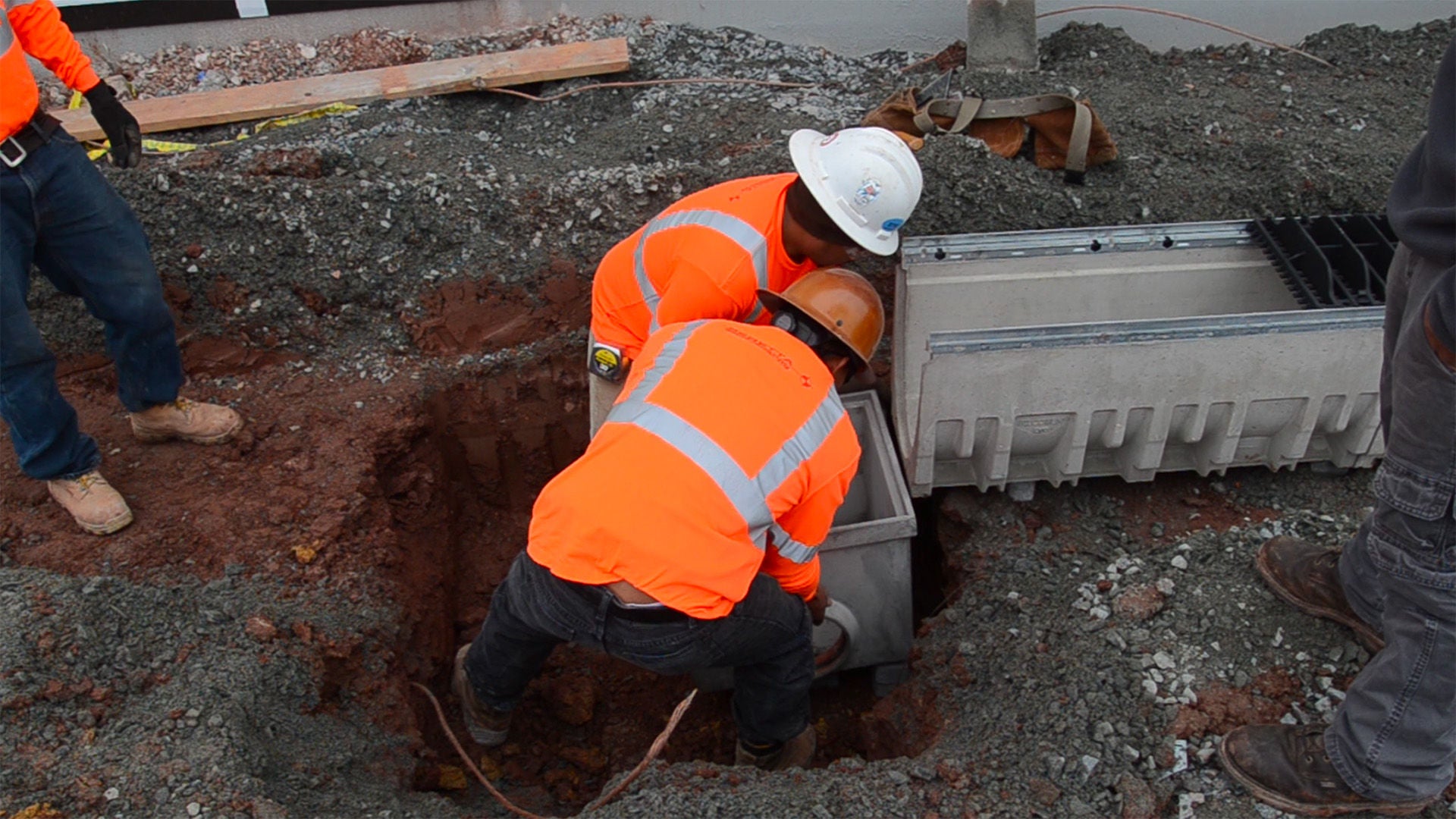

BG-Filcoten trench drain family

The BG-FILCOTEN® pro V  300 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 12 in. wide channels with galvanized steel rails.

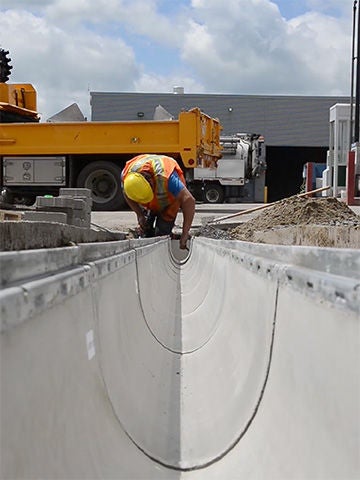

BG-Filcoten trench drain

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete
  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as perforated, bar, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

  • Ideal for factories, warehouses, garages, railway stations, municipal areas, and areas with similar surfaces

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

Installation

  • Sections connect together with interlocking tongue and groove joints
  • Crafted with flat sides for flush installations against buildings
  • Anti-sliding lugs provide stability against longitudinal sliding
  • Anchoring ribs support the channel and increase the surface area for better adhesion to surrounding concrete



Maintenance

  • Check the drain grate and clear debris from grate openings
  • Remove grate to inspect inside the trench drain
  • Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Part Number
Description
10630200BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.79 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.17 in. Deep, Constant Depth Channel 0
10630201BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.79 in. to 12.99 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.37 in. Deep, Sloped Channel 1
10630202BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 12.99 in. to 13.19 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.57 in. Deep, Sloped Channel 2
10630203BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.19 in. to 13.38 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.76 in. Deep, Sloped Channel 3
10630204BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.38 in. to 13.58 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 14.96 in. Deep, Sloped Channel 4
10630205BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.58 in. to 13.78 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.15 in. Deep, Sloped Channel 5
10630261BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.78 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.15 in. Deep, Constant Depth Channel 5-0
10630206BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.78 in. to 13.98 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.35 in. Deep, Sloped Channel 6
10630207BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 13.98 in. to 14.17 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.55 in. Deep, Sloped Channel 7
10630208BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.17 in. to 14.37 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.75 in. Deep, Sloped Channel 8
10630209BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.37 in. to 14.57 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 15.94 in. Deep, Sloped Channel 9
10630210BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.57 in. to 14.76 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.14 in. Deep, Sloped Channel 10
10630262BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.76 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.14 in. Deep, Constant Depth Channel 10-0
10630211BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.76 in. to 14.96 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.34 in. Deep, Sloped Channel 11
10630212BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 14.96 in. to 15.16 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.54 in. Deep, Sloped Channel 12
10630213BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.16 in. to 15.35 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.73 in. Deep, Sloped Channel 13
10630214BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.35 in. to 15.55 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 16.93 in. Deep, Sloped Channel 14
10630215BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.55 in. to 15.75 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.13 in. Deep, Sloped Channel 15
10630216BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.75 in. to 15.94 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.32 in. Deep, Sloped Channel 16
10630217BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 15.94 in. to 16.14 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.52 in. Deep, Sloped Channel 17
10630218BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.14 in. to 16.34 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.72 in. Deep, Sloped Channel 18
10630219BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.34 in. to 16.54 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 17.91 in. Deep, Sloped Channel 19
10630220BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.54 in. to 16.73 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 18.11 in. Deep, Sloped Channel 20
10630264BG-FILCOTEN® pro V 300 Trench Drain with Galvanized Steel Rails, 16.73 in. Invert Depth, 11.30 in. Wide X 39.37 in. Long X 18.11 in. Deep, Constant Depth Channel 20-0

Part Number
Description
17030103BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Bar Design, NDS Class E Load, Ductile Iron
17030180BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
17030183BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
17030184BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
17030222BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 39.37 in. Long, Mesh Design, NDS Class C Load, Galvanized Steel
17030223BG-FILCOTEN® 300 Trench Drain Grate, 13.66 in. Wide X 19.69 in. Long, Mesh Design, NDS Class C Load, Galvanized Steel

Part Number
Description
10630292BG-FILCOTEN® 300 Trench Drain Inline Catch Basin Kit with 1-Outlet Catch Basin and Trash Bucket
22213BG-FILCOTEN® 300 Trench Drain Trash Bucket, Plastic
32110Bolt and Nut for Locking BG-FILCOTEN® 300 12 in. Trench Drain Ductile Iron Grate
32112Bolt and Nut for Locking BG-FILCOTEN® 300 12 in. Trench Drain Galvanized Steel Grate with Mesh Design
19030213BG-FILCOTEN® 300 Trench Drain End Cap, Galvanized Steel
19030214BG-FILCOTEN® 300 Trench Drain End Outlet, Galvanized Steel
19030290BG-FILCOTEN® 300 Trench Drain End Cap Connector for Inline Catch Basin, Galvanized Steel
19030295BG-FILCOTEN® 300 Trench Drain Step Connector Plate, Galvanized Steel
19030929BG-FILCOTEN® 300 Trench Drain Rebar Support, Galvanized Steel
19060020BG-FILCOTEN® 300 Trench Drain Catch Basin Extension Unit, High-Performance Concrete
70154BG-FILCOTEN® 200 and 300 Trench Drain 8 in. Pipe Connector for Catch Basin, PVC
19021208BG-FILCOTEN® 200 and 300 Trench Drain Bottom Outlet, Galvanized Steel

Specifications & Technical Details

Specifications & Technical Details

Technical Information

Example Run Lengths below illustrate potential run lengths using various combinations of sloped and neutral channels and catch basins.

Maximum Run Lengths:

  • 135' using only sloped channels with a catch basin in the middle.
  • 162' using all slopes with 1 each of the neutrals and a catch basin in the middle.
Illustration of potential run lengths using various combinations of sloped and neutral channels and catch basins.
