BG-Filcoten trench drain family

BG-FILCOTEN® tec 100 Trench Drains

The BG-FILCOTEN® 100 high-performance concrete trench drain is a modular drainage system that consists of constant depth and sloped channel sections. Features 4 in. wide channels; tec v with galvanized steel rails and tec e with stainless steel rails.

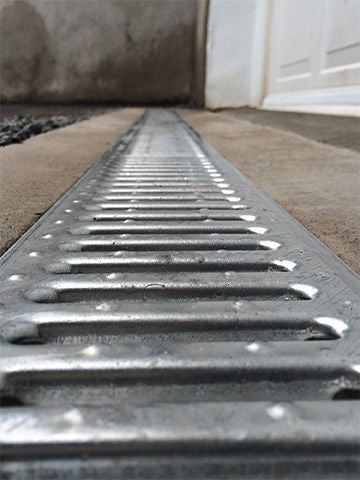

BG-Filcoten trench drain

Key Features

  • Built with world-class craftsmanship, the BG-FILCOTEN drain combines the reliability of stable concrete with the strength and durability of high-performance concrete
  • Channel is lighter than most conventional concrete channels for lower transport costs, easier handling, and faster installation; handles high-load capacity
  • Channels are available with constant or sloped depth; smooth interior channel reduces turbulence and enables a self-cleaning effect
  • Customize with grates available in a variety of materials and styles such as slot tops, perforated, COMBee, mesh, slotted, and decorative designs
  • Optimize the drainage system with accessories such as the inline catch basin kit, trash bucket, bottom outlet, end cap, and end outlet

Applications

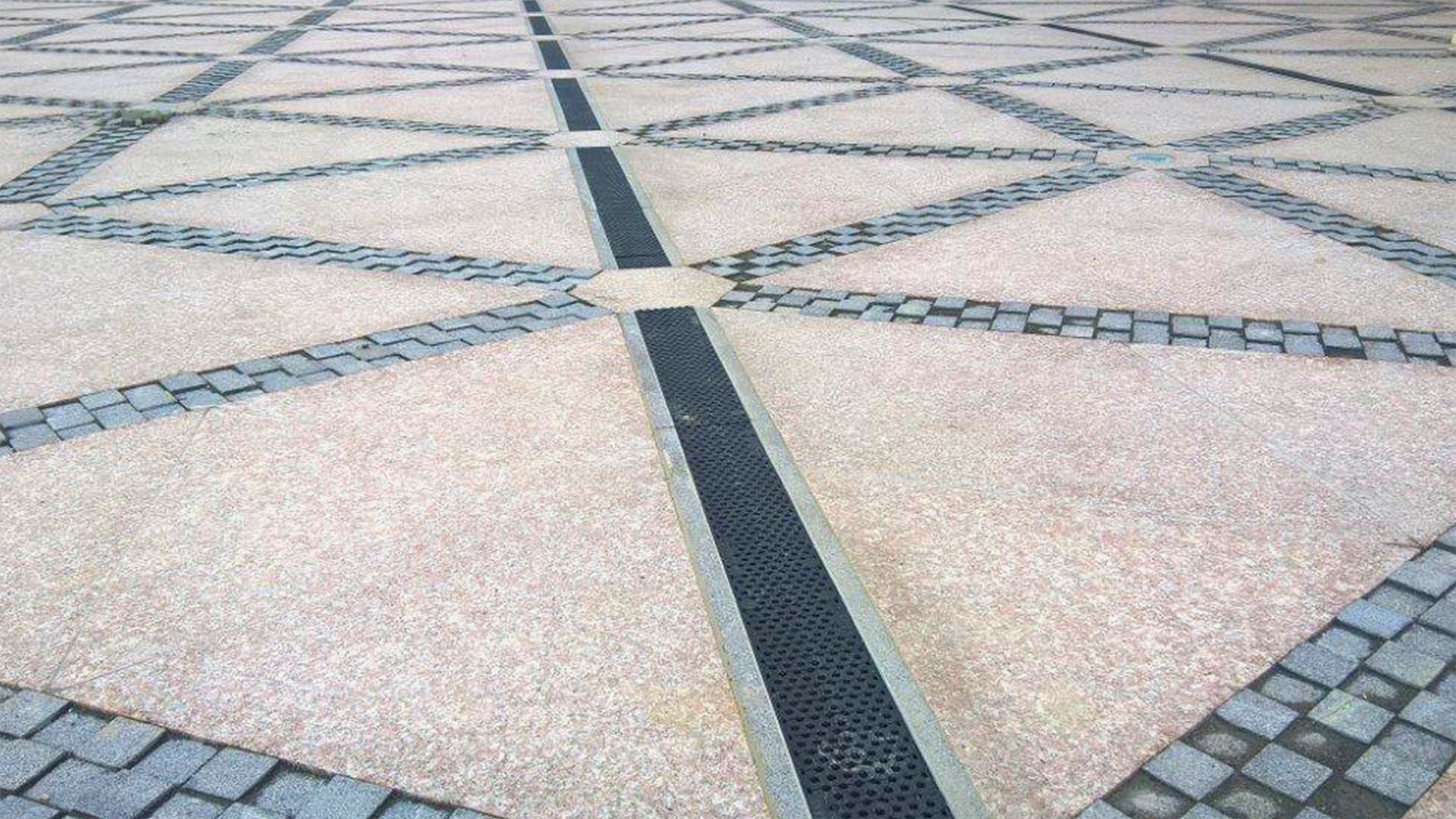

  • Ideal for pedestrian or residential areas, parks, recreational facilities, garages, and similar surfaces

  • Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream

  • As part of a complete drainage system, the BG-FILCOTEN® trench drain works with drain grates and accessories to capture stormwater runoff and convey it to drain pipe for proper release downstream

Installation

  • Sections have interlocking ends with sealant grooves
  • Flat sides for flush installations against buildings
  • Anti-sliding lugs for stability
  • Anchoring ribs to support channel and increase surface area for better adhesion to surrounding concrete



Maintenance

  • Check the drain grate and clear debris from grate openings
  • Remove grate to inspect inside the trench drain
  • Check drain pipes connected to the trench drain and clear any obstructions

Materials & Sustainability

  • Channel is made of high-performance concrete
  • Country of origin: Austria

Product Models

Part Number
Description
10410200BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.72 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.31 in. Deep, Constant Depth Channel 0
10410201BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.72 in. to 4.92 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.51 in. Deep, Sloped Channel 1
10410202BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 4.92 in. to 5.12 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.71 in. Deep, Sloped Channel 2
10410203BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.12 in. to 5.31 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.91 in. Deep, Sloped Channel 3
10410204BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.31 in. to 5.51 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.10 in. Deep, Sloped Channel 4
10410205BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.51 in. to 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Sloped Channel 5
10410261BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.71 in. Invert Depth, Neutral, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Constant Depth Channel 5-0
10410206BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.71 in. to 5.91 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.50 in. Deep, Sloped Channel 6
10410207BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 5.91 in. to 6.10 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.69 in. Deep, Sloped Channel 7
10410208BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.10 in. to 6.30 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.89 in. Deep, Sloped Channel 8
10410209BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.30 in. to 6.50 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.09 in. Deep, Sloped Channel 9
10410210BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.50 in. to 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Sloped Channel 10
10410262BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Constant Depth Channel 10-0
10410211BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.69 in. to 6.89 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.87 in. Deep, Sloped Channel 11
10410212BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 6.89 in. to 7.09 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.07 in. Deep, Sloped Channel 12
10410213BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.09 in. to 7.28 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.27 in. Deep, Sloped Channel 13
10410214BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.28 in. to 7.48 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.46 in. Deep, Sloped Channel 14
10410215BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.48 in. to 7.68 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.66 in. Deep, Sloped Channel 15
10410216BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.68 in. to 7.87 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.86 in. Deep, Sloped Channel 16
10410217BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 7.87 in. to 8.07 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.05 in. Deep, Sloped Channel 17
10410218BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.07 in. to 8.27 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.25 in. Deep, Sloped Channel 18
10410219BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.27 in. to 8.46 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.45 in. Deep, Sloped Channel 19
10410220BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.46 to 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Sloped Channel 20
10410264BG-FILCOTEN® tec V 100 Trench Drain with Galvanized Steel Rails, 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Constant Depth Channel 20-0
10410300BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.72 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.31 in. Deep, Constant Depth Channel 0
10410301BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.72 in. to 4.92 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.51 in. Deep, Sloped Channel 1
10410302BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 4.92 in. to 5.12 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.71 in. Deep, Sloped Channel 2
10410303BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.12 in. to 5.31 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 5.91 in. Deep, Sloped Channel
10410304BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.31 in. to 5.51 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.10 in. Deep, Sloped Channel 4
10410305BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.51 in. to 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Sloped Channel 5
10410361BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.71 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.30 in. Deep, Constant Depth Channel 5-0
10410306BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.71 in. to 5.91 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.50 in. Deep, Sloped Channel 6
10410307BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 5.91 in. to 6.10 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.69 in. Deep, Sloped Channel 7
10410308BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.10 in. to 6.30 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 6.89 in. Deep, Sloped Channel 8
10410309BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.30 in. to 6.50 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.09 in. Deep, Sloped Channel 9
10410310BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.50 in. to 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Sloped Channel 10
10410362BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.69 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.28 in. Deep, Constant Depth Channel 10-0
10410311BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.69 in. to 6.89 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 7.87 in. Deep, Sloped Channel 11
10410312BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 6.89 in. to 7.09 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.07 in. Deep, Sloped Channel 12
10410313BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.09 in. to 7.28 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.27 in. Deep, Sloped Channel 13
10410314BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.28 in. to 7.48 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.46 in. Deep, Sloped Channel 14
10410315BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.48 in. to 7.68 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.66 in. Deep, Sloped Channel 15
10410316BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.68 in. to 7.87 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 8.86 in. Deep, Sloped Channel 16
10410317BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 7.87 in. to 8.07 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.05 in. Deep, Sloped Channel 17
10410318BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.07 in. to 8.27 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.25 in. Deep, Sloped Channel 18
10410319BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.27 in. to 8.46 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.45 in. Deep, Sloped Channel 19
10410320BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.46 in. to 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Sloped Channel 20
10410364BG-FILCOTEN® tec E 100 Trench Drain with Stainless Steel Rails, 8.66 in. Invert Depth, 4.84 in. Wide X 39.37 in. Long X 9.65 in. Deep, Constant Depth Channel 20-0

Part Number
Description
17010105BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class E Load, Ductile Iron
17010106BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class C Load, Ductile Iron
17010110BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class D Load, Ductile Iron
17010180BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Ville Slot Design, NDS Class E Load, Ductile Iron
17010183BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Kiaro Slot Design, NDS Class D Load, Ductile Iron
17010184BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Decorative Via Slot Design, NDS Class D Load, Ductile Iron
17010202BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slotted Design, NDS Class A Load, Galvanized Steel
17010203BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class A Load, Galvanized Steel
17010204BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class A Load, Galvanized Steel
17010205BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class A Load, Galvanized Steel
17010206BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slotted Design, NDS Class C Load, Galvanized Steel
17010207BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slotted Design, NDS Class C Load, Galvanized Steel
17010220BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Mesh Design, NDS Class B Load, Galvanized Steel
17010221BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Mesh Design, NDS Class B Load, Galvanized Steel
17010228BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
17010229BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Galvanized Steel
17010328BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Perforated Design, NDS Class C Load, Stainless Steel
17010329BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Perforated Design, NDS Class C Load, Stainless Steel
17010330BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Bar Design, NDS Class B Load, Stainless Steel
17010331BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Bar Design, NDS Class B Load, Stainless Steel
17010401BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, COMBee Design, NDS Class B Load, Plastic
17010402BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, COMBee Design, NDS Class C Load, Plastic
17111204BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Galvanized Steel
17111205BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Galvanized Steel
17111304BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 39.37 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Stainless Steel
17111305BG-FILCOTEN® 100 Trench Drain Grate, 4.80 in. Wide X 19.69 in. Long, Slot Top Design, Asymmetric, NDS Class C Load, Stainless Steel

Part Number
Description
10410294BG-FILCOTEN® 100 Trench Drain Inline Catch Basin Kit, Galvanized Steel Rails, with 1-Outlet Catch Basin and Trash Bucket
10410394BG-FILCOTEN® 100 Trench Drain Inline Catch Basin Kit, Stainless Steel Rails, with 1-Outlet Catch Basin and Trash Bucket
19010400BG-FILCOTEN® 100 Trench Drain End Cap/Outlet, Galvanized Steel
19011204BG-FILCOTEN® 100 Trench Drain Bottom Outlet, Galvanized Steel
19010902BG-FILCOTEN® 100 Trench Drain Rebar Support, Galvanized Steel
22515BG-FILCOTEN® 100 Trench Drain Trash Bucket for Catch Basin, Plastic
32087BG-FILCOTEN® 100 Trench Drain Grate Locking Device, Stainless Steel
56-64Flexible Elastomeric PVC Coupling with Stainless Steel Clamp for 6 in. Cast Iron/Plastic/Copper/Steel/Lead Pipe X 4 in. Cast Iron/Plastic/Copper/Steel/Lead Pipe
56-66Flexible Elastomeric PVC Coupling with Stainless Steel Clamp for 6 in. Cast Iron/Plastic/Copper/Steel/Lead Pipe X 6 in. Cast Iron/Plastic/Copper/Steel/Lead Pipe
17111206BG-FILCOTEN® 100 Trench Drain Slot Top Maintenance Unit, 4.84 in. Wide X 19.69 in. Long, Asymmetric, Galvanized Steel
17111306BG-FILCOTEN® 100 Trench Drain Slot Top Maintenance Unit, 4.84 in. Wide 19.69 in. Long,  Asymmetric, Stainless Steel
13399BG-FILCOTEN® 100 Trench Drain Opening Tool for Maintenance Unit
