What is a Dry Well: How It Works Explainer with Pros and Cons
Every year, property owners across the United States face "$100 billion in annualized damages to properties due to flood risks", with poor drainage being a primary culprit. If you've ever watched water pool around your foundation after a heavy rain or noticed erosion in your yard, you understand the frustration of inadequate stormwater management. Understanding what a dry well is and how these systems work can provide an effective, long-term solution to protect your property from water damage.

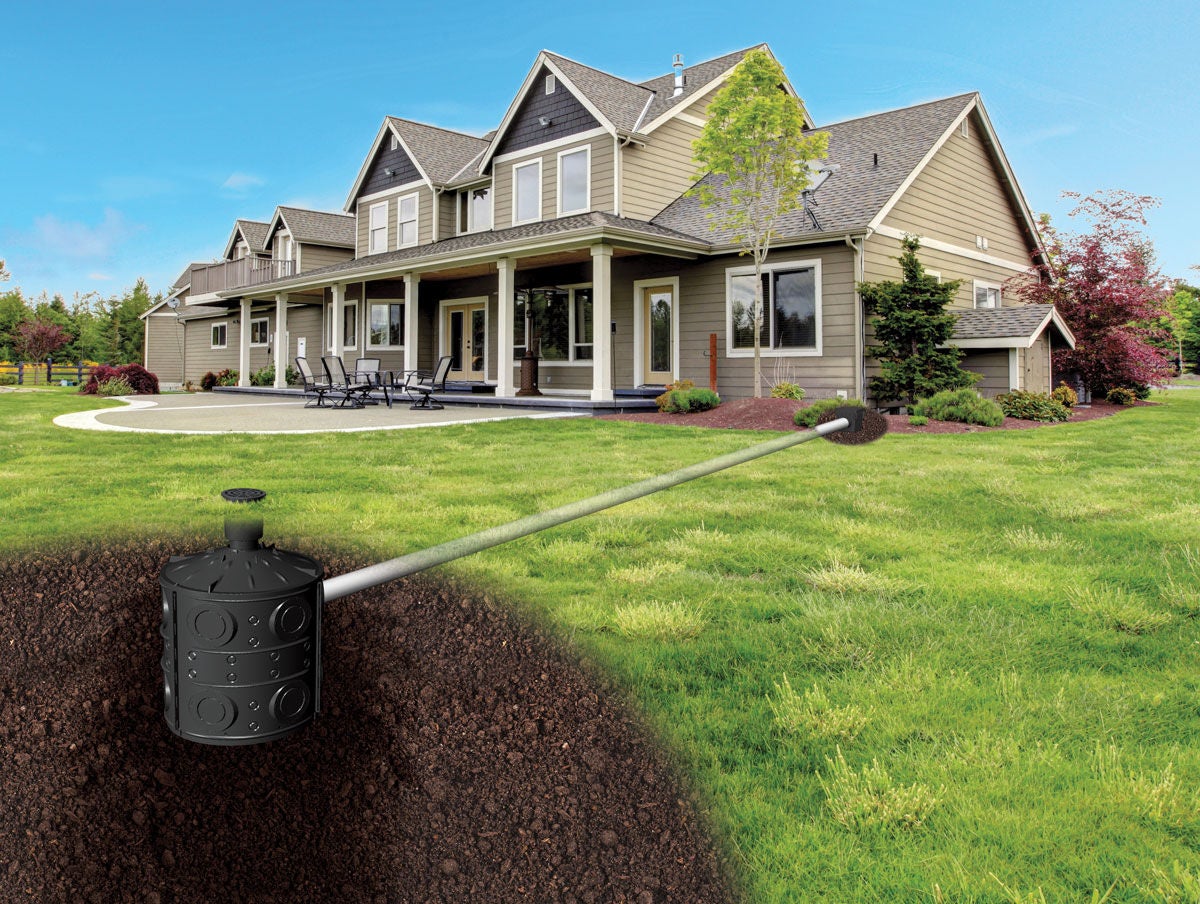

A dry well is an underground water management system that captures stormwater runoff and slowly releases it into the surrounding soil through natural infiltration. Unlike surface drainage that simply moves water elsewhere, dry wells work with nature to manage water right where it falls, preventing flooding while replenishing groundwater supplies.
This comprehensive guide will explain what a dry well is, how a dry well works, and provide practical dry well installation guidance. Whether you're a homeowner dealing with basement flooding, a property manager evaluating drainage options, or a contractor expanding your expertise, you'll discover everything needed to make informed decisions about dry well systems.
What Is a Dry Well? Understanding the Fundamentals
Dry Well Simple Definition: A dry well is a buried chamber filled with gravel or containing prefabricated storage units that collect rainwater and allow it to slowly infiltrate into the soil.
Key Components of a Dry Well System
Understanding a dry well requires knowing its main parts:
- Storage Chamber: The main underground space that holds water temporarily
- Inlet Pipes: Channels that direct water from downspouts or surface drains into the system
- Aggregate Material: Gravel or stone that creates void spaces for water storage
- Filter Fabric: Geotextile material that prevents soil from clogging the system
- Observation Port: A pipe extending to the surface for monitoring and maintenance
How Dry Wells Differ from Other Drainage Systems
Unlike traditional drainage that moves water away from your property, dry wells manage water through infiltration. This fundamental difference offers several advantages:
- Environmental Benefits: Recharges groundwater instead of overloading storm sewers
- Property Protection: Prevents water from flowing toward foundations or neighboring properties
- Regulatory Compliance: Meets many municipalities' stormwater management requirements
- Cost Effectiveness: Eliminates the need for complex pipe networks to remote discharge points
How Does a Dry Well Work? The Science Made Simple
Understanding how a dry well works starts with recognizing how water flows across your entire property, not just off rooftops and driveways, but also from lawns, gardens, and other landscaped areas. When these surfaces become saturated, excess water needs a place to go. A dry well provides that outlet, helping manage runoff by capturing and slowly dispersing it underground, similar to how water naturally soaks into the soil.
The Water Flow Process
Here's exactly how a dry well works step by step:
- Rainwater from roofs, driveways, lawns, landscapes, or other surfaces enters the dry well through inlet pipes
- Temporary Storage: Water fills the void spaces within the dry well chamber
- Infiltration Begins: Water slowly seeps through the chamber walls and bottom into surrounding soil
- Natural Filtering: Soil naturally filters the water as it moves downward
- Groundwater Recharge: Clean water eventually reaches the water table, replenishing groundwater supplies
Factors That Affect Dry Well Performance
Several conditions determine how a dry well works for effective water collection on your property:
Soil Permeability: Sandy soils allow rapid water infiltration, while clay soils drain slowly. Understanding your soil type is crucial for proper system sizing.
Water Table Depth: The distance between your dry well and the groundwater table affects system performance. Minimum separation distances are required for optimal function.
Seasonal Variations: Frozen ground in winter and saturated soil during wet seasons can temporarily reduce infiltration rates.
System Size: Larger dry wells handle more water but require more space and higher installation costs.
Common Misconceptions About Dry Well Operation
Many property owners have incorrect assumptions about how a dry well works:
- Myth: Dry wells work instantly during storms
- Reality: They provide temporary storage while water infiltrates slowly over hours or days
- Myth: Any soil type works for dry wells
- Reality: Clay soils and high water tables can severely limit effectiveness
- Myth: Dry wells never require maintenance
- Reality: Regular inspection and occasional cleaning ensure optimal performance
When Should You Consider Installing a Dry Well?
Whether a dry well is right for your property depends on several factors. Understanding these conditions helps you make an informed decision and avoid costly mistakes.
Ideal Situations for Dry Wells
Foundation Water Problems: If water pools near your foundation or causes basement flooding, a dry well can intercept runoff before it reaches your home.
Driveway and Patio Drainage: Standing water on hardscapes creates safety hazards and accelerates surface deterioration. Dry wells manage this runoff effectively.
Landscaping Protection: Erosion from uncontrolled runoff can damage gardens, lawns, and expensive landscaping features.
Municipal Requirements: Many jurisdictions require on-site stormwater management for new construction or major renovations.
Site Conditions That Favor Dry Wells
Your property must meet certain criteria for successful dry well installation:
Soil Permeability: Sandy or gravelly soils with infiltration rates above 0.5 inches per hour work best. Clay soils may require alternative solutions.
Water Table Depth: At least 4 feet of separation between the dry well bottom and the seasonal high water table is typically required.
Space Availability: Adequate room for excavation and proper setbacks from foundations, septic systems, and property lines.
Slope Considerations: Gentle slopes facilitate proper drainage, while steep slopes may require additional erosion control measures.
Recognizing these problems early can prevent costly damage:
- Rainstorms
- Basement moisture or flooding issues
- Erosion channels in landscaping
- Ice formation from poor drainage in winter
- Wet or soggy areas that don't dry out
- Damage to driveways or walkways from standing water
Types of Dry Well Systems: Traditional vs. Modern Solutions
Understanding dry wells includes knowing the different types available. Modern technology has significantly improved upon traditional methods, offering better performance and easier installation.
Traditional Gravel-Filled Dry Wells
Conventional dry well systems use excavated pits filled with crushed stone or gravel. While time-tested, these systems have limitations:
Construction Process:
- Excavate a pit 4-6 feet deep and 3-4 feet wide
- Install inlet pipes and observation ports
- Fill with clean, graded stone (1-3 inch diameter)
- Wrap in geotextile filter fabric
- Backfill and restore surface
Advantages: Cost-effective, adaptable sizing, proven technology
Disadvantages: Labor-intensive installation, limited structural integrity, requires heavy equipment
Prefabricated Dry Well Systems
Modern engineered systems like the Flo-Well® dry well represents significant advances in dry well technology:
Key Features:
- Molded plastic chambers with high storage capacity
- Stackable modular design for custom sizing
- Pre-engineered inlet and outlet connections
- Built-in overflow provisions
- Integrated inspection ports
Benefits Over Traditional Systems:
- Faster installation with minimal excavation
- Consistent quality and performance
- Superior structural integrity
- Expandable design for future needs
- Better long-term reliability
Hybrid Systems

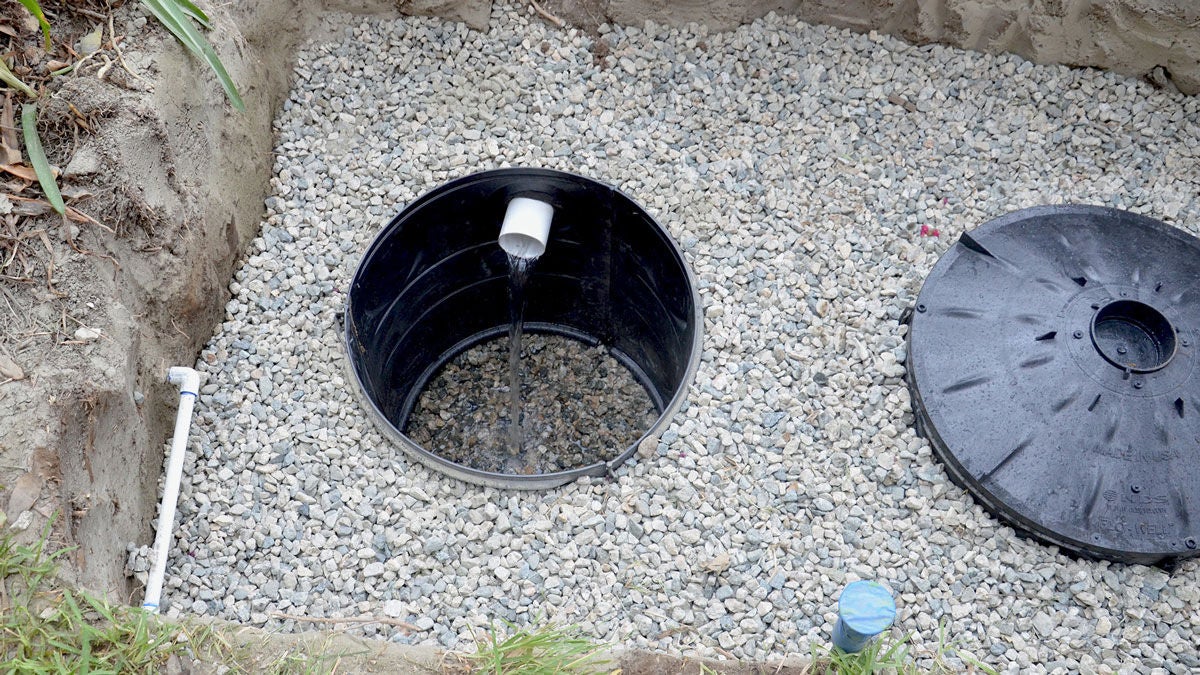

Some installations combine prefabricated chambers with aggregate materials, offering benefits of both approaches. These systems provide maximum storage capacity while maintaining structural integrity.
Dry Wells vs. French Drains: Choosing the Right Solution
Property owners often wonder whether a dry well or French drain better addresses their drainage needs. Understanding the differences helps you select the most appropriate solution.
How French Drains Work
French drains use perforated pipes surrounded by gravel to collect and redirect water away from problem areas. Unlike dry wells, traditional French drains move water to a different location rather than infiltrating it on-site.
Key Differences Between Dry Wells and French Drains
Water Management Philosophy:
- Dry Wells: Infiltrate water into the ground at the source
- French Drains: Collect and redirect water to a safe discharge point
Site Requirements:
- Dry Wells: Require permeable soil and adequate water table separation
- French Drains: Work in various soil types but need appropriate discharge location
Installation Complexity:
- Dry Wells: Vertical excavation, compact footprint
- French Drains: Linear excavation, extensive pipe networks
When to Choose Each System
Choose Dry Wells When:
- You have well-draining soil
- Local regulations require on-site water management
- You want to recharge groundwater
- Space is limited for extensive drainage systems
Choose French Drains When:
- Poorly draining clay soil
- You need to redirect water away from foundations
- You have a suitable discharge location
- You're dealing with continuous groundwater seepage
Combination Systems: Many effective drainage solutions combine both approaches, using French drains to collect water and dry wells for final disposal.
Installation Guide: Step-by-Step Dry Well Installation
Proper installation is crucial for optimal dry well performance. Whether you're planning a DIY project or hiring professionals, understanding the installation process ensures better outcomes.
Pre-Installation Planning
Site Assessment: Before breaking ground, conduct a thorough evaluation:
- Perform soil percolation tests to determine infiltration rates
- Locate utilities and obtain required permits
- Calculate drainage area and required storage volume
- Verify setback requirements from foundations and property lines
Percolation Test Procedure:
- Dig a test hole 12 inches deep and 6 inches wide
- Fill with water and let it drain completely
- Refill with water and measure the drop in water level over one hour
- Infiltration rates above 0.5 inches per hour indicate suitable conditions
Installation Process
Step 1: Excavation
- Mark utility locations and obtain required permits
- Excavate to proper depth based on system specifications
- Ensure excavation is level and properly sized
- Remove any rocks or debris that could damage system components
Step 2: System Installation
- Check proper slope for drainage
- Place prefabricated dry well chambers or aggregate materials
- Install observation ports and overflow connections

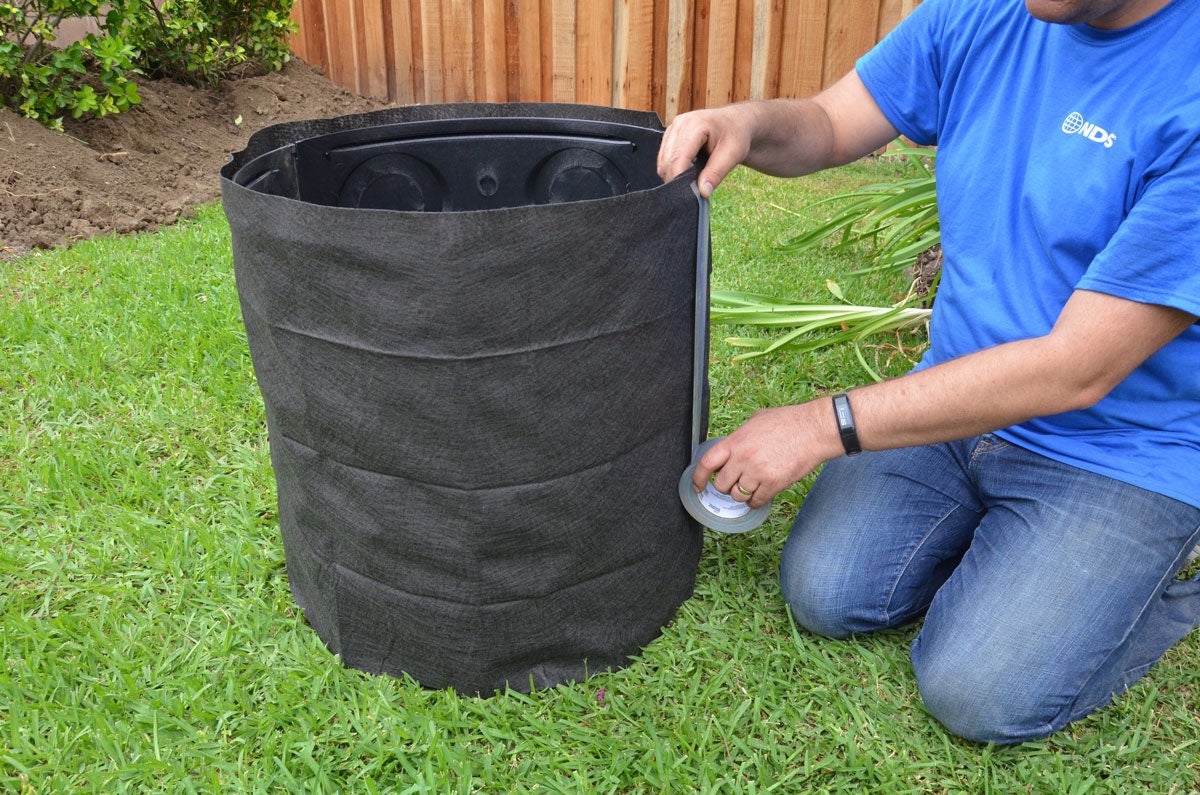

- Wrap traditional systems with filter fabric
Step 3: Backfilling and Completion
- Backfill carefully to prevent damage to system components
- Compact soil in lifts to prevent settling
- Restore surface grade and landscaping
- Test system performance with controlled water application
Common Installation Mistakes to Avoid
Preventing these errors ensures optimal dry well performance:
- Inadequate Soil Testing: Failing to verify soil permeability leads to system failure
- Improper Sizing: Undersized systems overflow during heavy rains
- Poor Pipe Connections: Leaky pipes reduce system efficiency
- Insufficient Setbacks: Violating minimum distances from foundations or septic systems
- Neglecting Overflow Provisions: Systems without overflow outlets can fail
Costs, Permits, and Maintenance Requirements
Understanding the total cost of ownership for a dry well system helps property owners make informed investment decisions and plan for long-term maintenance.
Installation Costs
DIY Dry Well Installation Costs:
- Traditional gravel system materials: $300-$600
- Prefabricated systems (Flo-Well® dry well): $400-$1,000
- Tools and equipment rental: $150-$400
- Permits and inspections: $100-$300
- Total DIY Cost: $950-$2,300
Installation Costs:
- Small residential systems: $1,200-$3,000
- Large residential systems: $2,500-$6,000
- Commercial systems: $5,000-$20,000+
Cost Factors: Soil conditions, system size, accessibility, local labor rates, and permit requirements all affect final costs.
Permit and Regulatory Requirements
Most jurisdictions regulate dry well installation through various requirements:
- Building Permits: Required for systems connected to structures
- Environmental Permits: Needed for professional systems that could affect groundwater
- Setback Requirements: Minimum distances from wells, septic systems, and property lines
- Soil Testing: Professional percolation tests may be required
Tips:
-
Contact local building departments early in the planning process
-
Prepare detailed installation plans and specifications
-
Budget for permit fees and potential plan review costs
-
Schedule required inspections during construction
Maintenance and Long-Term Dry Well Care
Proper maintenance ensures your dry well continues performing effectively for decades:
Annual Maintenance Tasks:
- Check ports for proper water levels
- Clean debris from inlet pipes and surface grates
- Check for signs of system overflow or poor drainage
- Document system performance during major rainfall events
Long-Term Maintenance:
- Sediment removal every 5-10 years
- Inlet pipe cleaning or replacement as needed
- Filter fabric replacement in traditional systems
- Professional inspection if performance degrades
Signs Your Dry Well Needs Attention:
- Standing water in observation ports between rainfall events
- Surface flooding in areas previously protected by the system
- Slow drainage or extended ponding after storms
- Overflow activation during moderate rainfall
Troubleshooting Common Dry Well Problems
Understanding potential issues helps property owners maintain optimal dry well performance and address problems before they become costly repairs.
Symptoms: Water remains in the system for extended periods after rainfall
Common Causes:
- Sediment accumulation reducing infiltration capacity
- High seasonal water table limiting drainage
- Slow Drainage Issues
- Clogged filter fabric in traditional systems
- Soil compaction around the dry well chamber
Solutions:
- Remove accumulated sediment from the system
- Replace damaged or clogged filter fabric
- Consider supplemental drainage during high water table periods
- Evaluate whether system sizing is adequate for water volumes
System Overflow Problems
Symptoms: Water backs up and overflows from inlet pipes or surface areas
Common Causes:
- Undersized system for actual water volumes
- Blocked or inadequate overflow provisions
- Reduced infiltration capacity due to maintenance issues
- Extreme rainfall events exceeding design capacity
Solutions:
- Install additional dry well capacity
- Improve overflow outlet design and capacity
- Implement surface drainage to reduce system loading
- Consider hybrid systems combining multiple drainage approaches
Preventive Measures
Proactive maintenance prevents most dry well problems:
- Install sediment traps upstream of the dry well
- Maintain proper landscaping to prevent erosion
- Regular inspection and cleaning of inlet structures
- Document system performance to identify trends
Environmental Benefits and Sustainability
Understanding the environmental impact of dry well systems helps property owners make sustainable choices that benefit both their property and the broader community.
Groundwater Recharge Benefits
Dry wells provide significant environmental benefits by mimicking natural water infiltration processes.
- Aquifer Replenishment: Recharged groundwater maintains local water supplies
- Stream Flow Maintenance: Groundwater discharge supports base flow in streams and rivers
- Reduced Municipal Demand: Less strain on public water treatment and distribution systems
Stormwater Management Benefits
On-site water management through dry wells reduces environmental impacts:
- Reduced Runoff Volume: Less water entering storm sewers and natural waterways
- Erosion Prevention: Controlled infiltration prevents downstream erosion
- Pollution Reduction: Soil filtration removes pollutants from stormwater
- Flood Prevention: Reduced peak flows help prevent downstream flooding
Climate Resilience
Dry wells contribute to climate adaptation strategies:
- Managing increased rainfall intensity from climate change
- Reducing urban heat island effects through groundwater cooling
- Supporting drought resilience through groundwater storage
- Reducing infrastructure demands and associated carbon emissions
Frequently Asked Questions
How long does it take for a dry well to drain?
Drainage time depends on soil conditions and system size. Sandy soils typically drain within 24-48 hours, while clay soils may require 3-7 days. Systems that don't drain within this timeframe may need maintenance or redesign.
Can I install a dry well myself?
DIY installation is possible for homeowners with construction experience. However, proper soil testing, permitting, and system sizing require expertise. Professional installation ensures optimal performance and regulatory compliance.
Dry wells installed below the frost line typically continue functioning in winter, though at reduced capacity. Surface components may freeze, but underground portions usually remain operational.
How do I know if my soil is suitable for a dry well?
Conduct a percolation test by digging a test hole and measuring water infiltration rates. Rates above 0.5 inches per hour indicate suitable conditions. Clay soils or high water tables may require alternative solutions.
Do dry wells require maintenance?
Annual inspections, periodic cleaning, and sediment removal every 5-10 years keep traditional dry well systems functioning properly.
Can dry wells contaminate groundwater?
Properly designed and maintained dry wells pose minimal contamination risk. The soil acts as a natural filter, and most systems are designed to handle clean stormwater runoff. Industrial or contaminated runoff requires alternative treatment.
Conclusion
Understanding what a dry well is and how these systems work provides property owners with a powerful tool for managing stormwater challenges. From protecting foundations to preventing landscape erosion, dry wells offer sustainable solutions that benefit both individual properties and the broader environment.
The key to successful dry well installation lies in proper site assessment, appropriate system selection, and quality implementation. Whether you choose traditional gravel-filled systems or modern prefabricated solutions, understanding how a dry well works ensures you can make informed decisions about your property's drainage needs.
As climate change increases the frequency and intensity of extreme weather events, effective stormwater management becomes increasingly critical. Dry wells represent a proven, environmentally responsible approach that aligns with sustainable development practices while protecting property values and infrastructure investments.
For property owners considering drainage solutions, consulting with experienced professionals ensures appropriate system selection and installation. Proper planning, installation, and maintenance will provide decades of reliable service, protecting your property while contributing to environmentally friendly water management.
By investing in quality dry well systems, you're not only solving immediate drainage problems but also contributing to long-term water resource sustainability. These systems represent the intersection of practical property management and environmental responsibility, offering benefits that extend far beyond property boundaries. You can learn about our Flo-Well dry well here.
