Paver Driveway Ideas: Drainage-Optimized Designs for Modern Landscapes

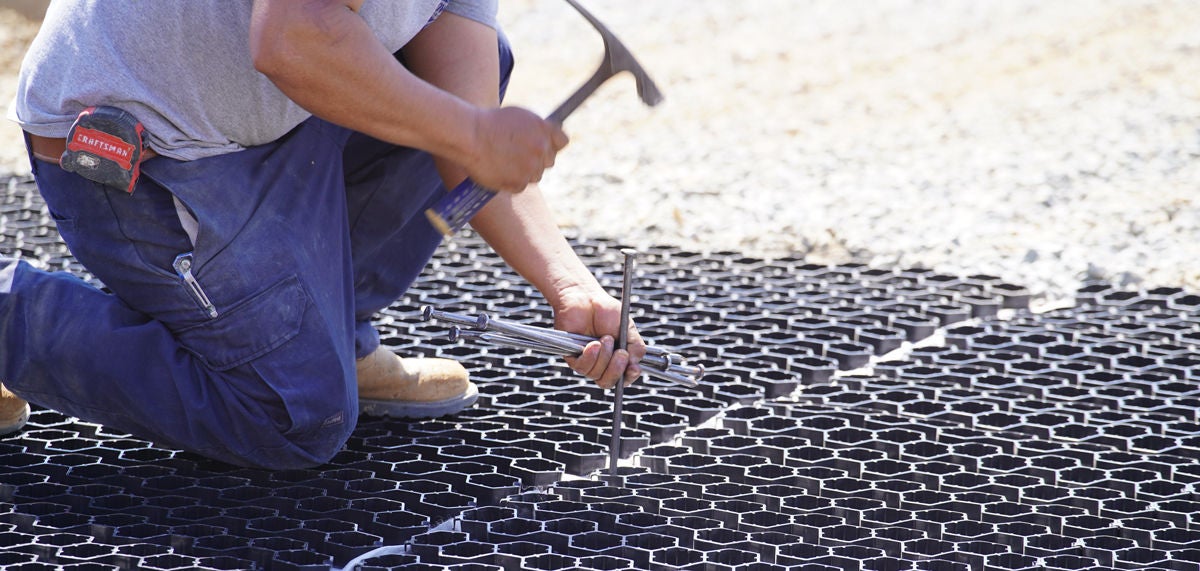

person installing pavers using a hammer at a job site

Did you know that traditional driveways can contribute up to 25% of residential stormwater runoff? For homeowners and landscaping professionals seeking paver driveway ideas that address drainage challenges, the solution lies in understanding how modern paving technologies can transform problematic water management into efficient, attractive hardscapes.

Whether you're dealing with standing water near walkways, flooded sidewalks, or clients demanding sustainable concrete paver driveway ideas, this comprehensive guide will explore cutting-edge paver drainage solutions that protect property values while preventing water-related damage. From permeable paving systems to integrated subsurface drainage networks, you’ll discover ideas for a driveway that blend function with curb appeal.

Let’s dive into how engineered drainage can elevate your next driveway ideas pavers project.

Understanding Permeable Pavers for Modern Driveway Applications and Excess Water

Permeable pavers offer a game-changing approach to driveway design by allowing water to pass through the paving surface into the ground below. Unlike solid concrete or asphalt, which repels water and increases runoff, permeable systems infiltrate rain directly through joints or porous materials and are also made of recycled materials with UV inhibitors.

Key Types of Permeable Pavers:

Grid Pavers:
Systems like NDS TuffTrack® grass pavers, which come in panels, and EZ Roll® and Grass Pavers which come in rolls work with EZ Marker parking delineators to increase safety, direct parking lot traffic, and they snap into the grid. They are available in various colors as well with UV inhibitors.
Gravel Pavers:

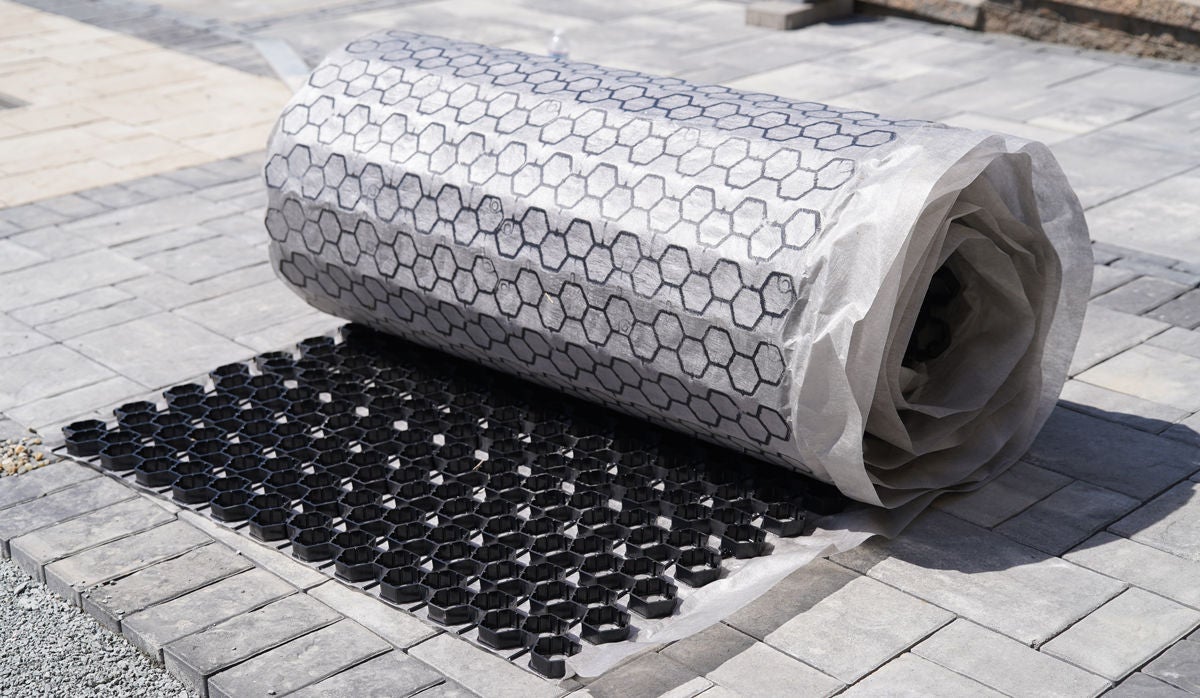

EZ Roll® Grass and Gravel Pavers offer a stabilized gravel surface with high permeability and are manufactured using recycled materials.

The effectiveness of trench drains stems from their ability to intercept water at the source, preventing accumulation that leads to flooding, erosion, or structural damage. This proactive approach to water runoff control makes them invaluable for homeowners dealing with challenging drainage conditions.

Ideal applications:

Driveways & estate roads
Fire access lanes
Overflow parking
Trails & walking paths
Utility and service roads

Benefits:

Fully permeable system allows natural infiltration, reduces stormwater runoff and erosion
Stops rutting and gravel loss, cellular structure locks gravel in place; maintains a smooth, stable driving surface; and minimizes maintenance and regrading.
Cost effective: ships in large 4ft X 150ft rolls; faster to install than brick pavers; less labor-intensive; and little to no maintenance
Strong drivable surface; Rated for HS-20/HS-25/HL-93 loading; withstands repeated vehicle traffic; and can be driven on even when grid is unfilled
Sustainable and cool - made of recycled HDPE plastic; and reduces urban heat island effect.
Maintains a natural, gravel appearance and blends into landscape
Permeable Concrete Pavers:
Engineered with wider joints to maintain strength and allow water to pass through.
Plastic Grid Systems:
Modular, lightweight, and load-rated, perfect for custom driveways with high infiltration needs.

Infiltration Rates and Drainage Capacity

Well-designed permeable systems are built to absorb and manage water efficiently, helping prevent surface pooling and runoff. However, in areas with dense clay soils or high water tables, additional drainage solutions such as French drains or dry wells may be needed to maintain proper flow.
For example, combining permeable pavers with a StormChamber® System allows for water to be stored and slowly released underground, even if surface infiltration is limited.

dirt in pavers showing wear the grass will grow

Landscape Designs with Drainage in Mind

Border and Edge Drainage

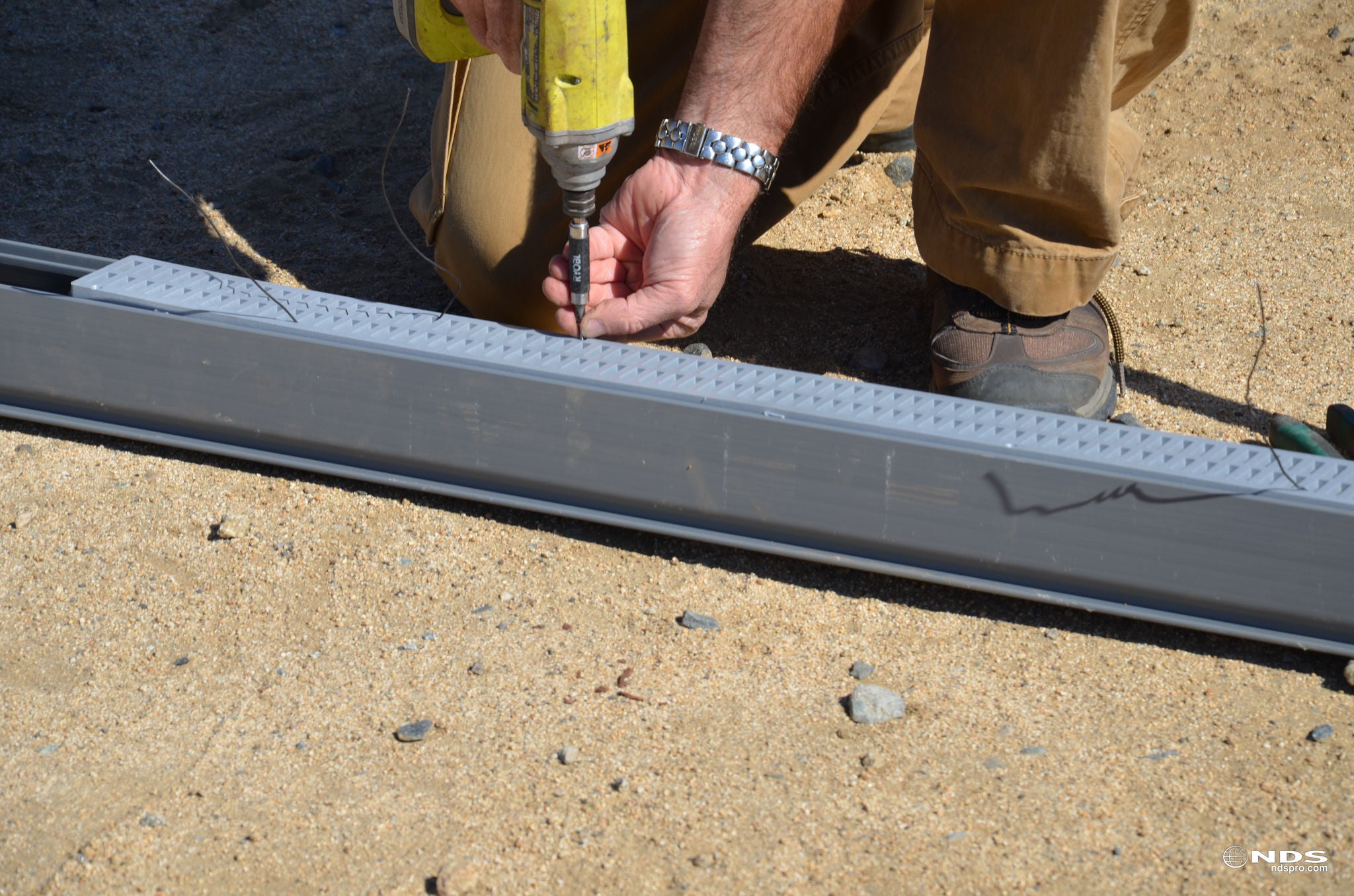

NDS offers the Pro Series™ Channel Drain, designed to line the perimeter of a driveway. With widths from 3 to 12 inches and Class A- C NDS load ratings, these drains capture sheet flow and keep surrounding landscapes safe from overflow. There is also the Micro-Mini-Slim-Spee-D-Pro Series (3 in, 5 in, 8 in, 12 in), Dura Slope, and BG-FILCOTEN options which can go up to Class D or E for NDS load ratings.

For a more subtle look, Micro Channel™ Drains blend seamlessly into pool decks, patios, and decorative paver layouts and Dura Slope channel drains offer a slot top grate that is often described as blending into the surroundings/slim profile grate.

Mix Permeable and Impervious Materials

Alternate permeable pavers with solid stone or brick to define zones and guide water flow.

Example: A central band of permeable pavers with decorative concrete borders.

Use Color Strategically

Highlight permeable areas with light-toned pavers, or create subtle contrast with natural grays, warm reds, and cool tans.

Landscaping Paver Colors: Trends & Coordination Tips

Match Your Home’s Aesthetic:

Warm Tones:
Pair with red brick or beige siding
Cool Grays:
Match modern or coastal architecture
Dark Tones:
Great for low-maintenance appearance and upscale contrast

Enhancing Curb Appeal with Smart Layouts and Accessories

Curves and Angles

Incorporate curves to break up long straight driveways. Use angled patterns or circular medallions for high-end designs.

Accent Borders

Frame the driveway with a different material or color to add dimension.

Landscape Pairings

Install low-maintenance plants along the driveway edge. Use raised planters or retaining walls to separate grades and prevent erosion.

Add Lighting

Use embedded LED lights in your paver joints or stake lights along the perimeter. This is a safety measure that also boosts nighttime curb appeal.

Maintenance Tips for Paver Driveways

Routine Cleaning

Sweep or leaf-blow debris off the surface
Use water and mild detergent for stains
Avoid sealing permeable systems unless specified by the manufacturer

Weed and Moss Prevention

Apply polymeric sand to stabilize joints and prevent weed growth. Avoid soil-rich fill materials that promote moss in shaded areas.

Resealing (if applicable)

For non-permeable pavers, sealing every 3–5 years protects against staining, weathering, and UV damage.

Drainage Add-ons for Challenging Driveway Conditions

French Drain Integration

The EZflow® French Drain System installs 30% faster than traditional gravel systems and provides high flow capacity without the need for heavy equipment. Best used along sloped driveways or next to buildings where infiltration alone isn’t enough.

Dry Well Solutions

Flo-Well® Systems are modular, scalable, and temporarily detain; open the weepholes to let water through to surrounding soilwater underground. Perfect for flat areas or clay-heavy soils where water needs time to soak into the ground.

Stormwater Chambers

StormChamber® Systems manage large volumes of water in limited space. They help recharge groundwater while keeping your driveway dry and structurally sound.

FAQs: Popular Paver Driveway Questions

How do permeable pavers help prevent driveway flooding?

Permeable pavers are designed to let rainwater flow through their joints or porous surfaces instead of pooling on top. This reduces runoff and helps water soak naturally into the ground, preventing flooding near garages, walkways, and landscaping areas.

What is the best paver pattern for a driveway?
Herringbone is the most structurally sound due to its interlocking nature, especially for vehicle traffic. It also offers a clean, timeless look.

What are popular driveway paver patterns?

Herringbone
Basketweave
Running bond
Fan or circular patterns for large driveways

What are popular landscaping paver colors?
Natural grays, earthy browns, multi-tone blends, and charcoal accents remain the top choices. Choose based on your home’s palette and surrounding landscaping.

Professional Considerations for Installers and Landscapers

Client Communication

Educate homeowners on the functional benefits of permeable systems and the long-term value they provide. Use visuals and case studies.

Subsurface Planning

Correct grading, base layer composition, and integration with existing storm systems are critical. Improper slope or soil compaction can reduce infiltration.

Compliance and Stormwater Regulations

Check local codes regarding stormwater mitigation. Many municipalities offer incentives for permeable driveway installations or runoff reduction.

Conclusion: Paver Driveways That Perform and Impress

Installing a paver driveway adds a functional, beautiful, and sustainable front entrance to your home or property.

With solutions like permeable pavers, NDS drainage systems, and well-thought-out landscaping, you can achieve curb appeal and environmental performance in one package.

Whether you're a homeowner planning a renovation or a landscape contractor looking for a better driveway solution, the right design paired with intelligent drainage makes all the difference.

For premium drainage products and expert support, visit NDSPro.com to browse our catalog, download installation guides, and connect with our pros.
