NDS Dura Slope Channel Drains are engineered for superior performance, versatility, and ease of installation. Available with built-in slope or neutral channel sections, and designed for easier handling and installation, these channel drains are engineered to maintain optimal flow rates.
| Click below to download |
|---|
|
NDS Dura Slope® Channel Drain Data and Flow Rates Tech Spec NDS Dura Slope® Channel Drain Ductile Iron Frame Tech Spec NDS Dura Slope® Channel Drain Grate Perforated Galvanized Steel Tech Spec NDS Dura Slope® Channel Drain Grate Perforated Plastic Tech Spec NDS Dura Slope® Channel Drain EZ-Track Radius Coupling Tech Spec NDS Dura Slope® Channel Drain EZ-Track Radius Coupling Grates Tech Spec NDS Dura Slope® Channel Drain Grate Slotted Ductile Iron Tech Spec NDS Dura Slope® Channel Drain Grate Slotted Galvanized Steel Tech Spec NDS Dura Slope® Channel Drain System Accessories Tech Spec NDS Dura Slope® Channel Drain Inline Catch Basin Kit Tech Spec NDS Dura Slope® Decorative Channel Drain Grates Tech Spec |
| Channels and Accessories | DWG | |
|---|---|---|
| NDS Dura Slope® Channel Drains Rebar Suspension Method Asphalt Load A-D Installation Detail | ||
| NDS Dura Slope® Channel Drains Rebar Suspension Method Concrete Load A-D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Rebar Suspension Method Concrete with DS-200H Frame Load D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Rebar Suspension Method Pavers Load A-D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Rebar Suspension Method Pavers Hidden Load A-D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Rebar Suspension Method Pavers Hidden Load Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Rebar Suspension Method Wood Member Load A-D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Slot Top Rebar Suspension Method Pavers Load A-C Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Form Board Suspension Load A-D Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains with Frame Load D Asphalt Rebar Installation Detail | DWG | |
| NDS Dura Slope® Neutral Channel Drains Miter Method Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Bottom Outlet Male to Male Joint Installation Detail | DWG | |
| NDS Dura Slope® Channel Drains Pool Deck Installation Detail | DWG | |
| NDS Dura Slope® Channel Catch Basin Drain Installation Detail | DWG |
| Part Number (click for more info) | Description |
|---|---|
| DS-091NDIKIT | Dura Slope® Channel Drain Kit, 4.3 in. Invert Depth Neutral Channel, 6 in. Wide X 4 ft. Long X 6.1 in. Deep, Ductile Iron Grates, End Outlet, End Cap |
| DS-090N | Dura Slope™ Channel Drain, 4.0 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 5.8 in. Deep |
| DS-091 | Dura Slope™ Channel Drain, 4.0 in. to 4.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 5.8 in. Deep |
| DS-091N | Dura Slope™ Channel Drain, 4.3 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 6.1 in. Deep |
| DS-092 | Dura Slope™ Channel Drain, 4.3 in. to 4.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 6.1 in. Deep |
| DS-093 | Dura Slope™ Channel Drain, 4.7 in. to 5.00 Invert Depth, 6 in. Wide X 4 ft. Long X 6.4 in. Deep |
| DS-094 | Dura Slope™ Channel Drain, 5.0 in. to 5.3 in. Invert Depth, 6 in. Wide X 4 ft. Long X 6.8 in. Deep |
| DS-094N | Dura Slope™ Channel Drain, 5.3 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 7.1 in. Deep |
| DS-095 | Dura Slope™ Channel Drain, 5.3 in. to 5.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.1 in. Deep |
| DS-096 | Dura Slope™ Channel Drain, 5.7 in. to 6.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.5 in. Deep |
| DS-097 | Dura Slope™ Channel Drain, 6.0 in. to 6.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 7.8 in. Deep |
| DS-097N | Dura Slope™ Channel Drain, 6.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 8.1 in. Deep |
| DS-098 | Dura Slope™ Channel Drain, 6.4 in. to 6.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.1 in. Deep |
| DS-099 | Dura Slope™ Channel Drain, 6.7 in. to 7.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.5 in. Deep |
| DS-100 | Dura Slope™ Channel Drain, 7.0 in. to 7.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 8.8 in. Deep |
| DS-100N | Dura Slope™ Channel Drain, 7.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 9.1 in. Deep |
| DS-101 | Dura Slope™ Channel Drain, 7.4 in. to 7.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.1 in. Deep |
| DS-102 | Dura Slope™ Channel Drain, 7.7 in. to 8.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.5 in. Deep |
| DS-103 | Dura Slope™ Channel Drain, 8.0 in. to 8.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.8 in. Deep |
| DS-103N | Dura Slope™ Channel Drain, 8.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 10.1 in. Deep |
| DS-104 | Dura Slope™ Channel Drain, 8.4 in. to 8.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.1 in. Deep |
| DS-105 | Dura Slope™ Channel Drain, 8.7 in. to 9.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.5 in. Deep |
| DS-106 | Dura Slope™ Channel Drain, 9.0 in. to 9.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 10.8 in. Deep |
| DS-106N | Dura Slope™ Channel Drain, 9.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 11.1 in. Deep |
| DS-107 | Dura Slope™ Channel Drain, 9.4 in. to 9.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.1 in. Deep |
| DS-108 | Dura Slope™ Channel Drain, 9.7 in. to 10.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.5 in. Deep |
| DS-109 | Dura Slope™ Channel Drain, 10.1 in. to 10.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 11.8 in. Deep |
| DS-109N | Dura Slope™ Channel Drain, 10.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 12.2 in. Deep |
| DS-110 | Dura Slope™ Channel Drain, 10.4 in. to 10.7 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.2 in. Deep |
| DS-111 | Dura Slope™ Channel Drain, 10.7 in. to 11.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.5 in. Deep |
| DS-112 | Dura Slope™ Channel Drain, 11.1 in. to 11.4 in. Invert Depth, 6 in. Wide X 4 ft. Long X 12.8 in. Deep |
| DS-112N | Dura Slope™ Channel Drain, 11.4 in. Invert Depth, Neutral, 6 in. Wide X 4 ft. Long X 13.2 in. Deep |
| DS-113 | Dura Slope™ Channel Drain, 11.4 in. to 11.7 in. Deep, 6 in. Wide X 4 ft. Long X 13.2 in. Deep |
| DS-114 | Dura Slope™ Channel Drain, 11.7 in. to 12.1 in. Invert Depth, 6 in. Wide X 4 ft. Long X 13.5 in. Deep |
Grates - Load Class A
| Part Number | Description | ADA Compliant | Heelproof | Tech Spec | ||
|---|---|---|---|---|---|---|

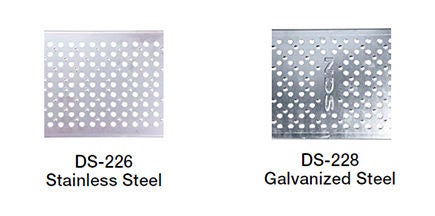

| DS-226 | Dura Slope™ Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Stainless Steel | YES | YES | Download PDF | ||
| DS-228 |
Dura Slope™ Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Galvanized Steel
| ✓ | ✔ ✅ | Download PDF | ||
Grates - Load Class B
| Part Number | Description | ADA Compliant | Heelproof | Tech Spec | ||
|---|---|---|---|---|---|---|
| DS-226 | Dura Slope™ Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Stainless Steel | ✅ YES | ✅ YES | Download PDF | ||
| DS-228 | Dura Slope™ Channel Drain Grate, 6 in. Wide X 2 ft. Long, Perforated Design, Galvanized Steel | ✅ YES | ✅ YES | Download PDF | ||
| Part Number (click for more info) | Description |
|---|---|
| DS-340 | Dura Slope™ Channel Drain Inline Catch Basin Kit with 2-outlet Catch Basin, 1 Adapter Plug, 2 Grate Screws |
| DS-240 | Dura Slope™ Channel Drain Trash Bucket, Zinc-plated Steel |
| DS-122 | Dura Slope™ Channel Drain ProFit™ Grate Lock, Pack of 8 |
| DS-224 | Dura Slope™ Channel Drain End Cap, Pack of 8 |
| DS-227 | Dura Slope™ Channel Drain End Cap/Outlet, Pack of 6 |
| DS-126 | Dura Slope™ Channel Drain Bottom Outlet Adapter, Pack of 6 |
| DS-200H | Dura Slope™ Channel Drain Frame, 6-3/8 in. Wide X 2 ft. Long, Ductile Iron |
| DS-STMAINT | Dura Slope™ Channel Drain Slot Top Maintenance Unit, 6 in. Wide X 2 ft. Long, Asymmetric, Galvanized Steel |
| DS-SS-STMAINT | Dura Slope™ Channel Drain Slot Top Maintenance Unit, 6 in. Wide X 2 ft. Long, Asymmetric, Stainless Steel |
Dura Slope® System Profiles
| Channels & Accessories |
|---|
| Grates - Load Class A | ADA | Heel Proof |
|---|---|---|
Applications
- Ideal for driveways, parking areas, warehouses, loading docks, pools, wash-down areas, and other impervious surfaces; provides a solution for residential, commercial, industrial, and municipal drainage needs
- Channel drains and trench drains are ideal for hardscapes to prevent mildew growth, concrete staining, and costly damage by capturing and conveying excess water for proper release downstream
- The Dura Slope Channel Drain, as part of a complete channel drainage system, works with drain grates to capture stormwater runoff and convey it to drain pipe for proper release downstream or to an infiltration device
Installation & Maintenance
- Sections snap together with interlocking tongue and groove joints; tabs hold and clip channels together; rebar clips hold channels in place during installation; for detailed instructions refer to the Dura Slope Installation Manual
- Check the drain grate and clear debris from grate openings; remove grate to inspect inside the channel drain; check drain pipes connected to the channel drain for obstructions
Materials & Sustainability
- Channels made of high-density polyethylene (HDPE) containing UV inhibitors
- Grates made from plastic, galvanized & stainless steel, or cast & ductile iron
- Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
